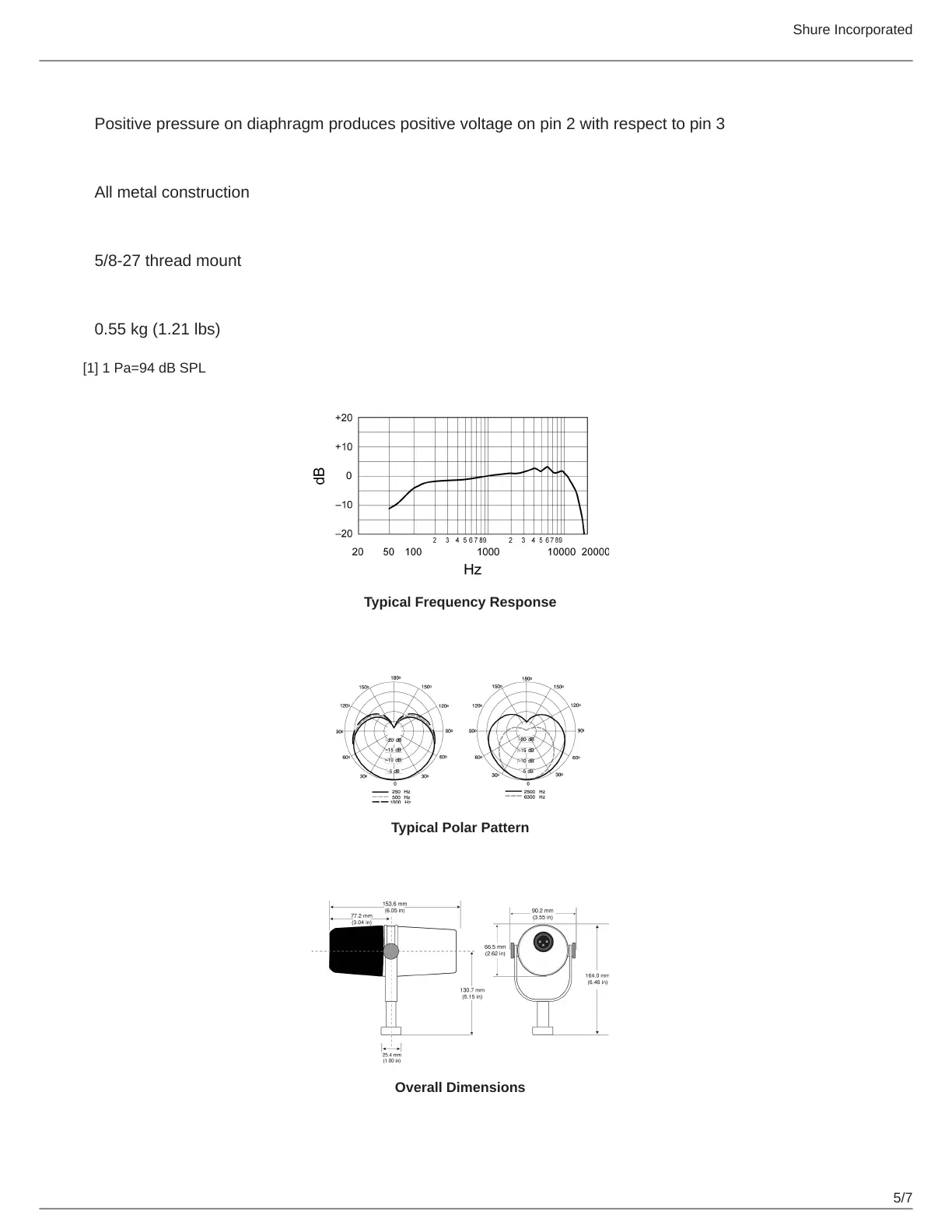

Shure Incorporated
5/7
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Housing
All metal construction
Mounting Type
5/8-27 thread mount
Net Weight
0.55kg(1.21lbs)
[1]1Pa=94dBSPL
Typical Frequency Response
Typical Polar Pattern
Overall Dimensions

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Shure MV7X and is the answer not in the manual?

Shure MV7X Specifications

General IconGeneral
Transducer TypeDynamic
Polar PatternCardioid
ConnectorXLR
Frequency Response50 Hz to 16 kHz
Weight0.55 kg
Output Impedance252 ohms
Sensitivity-55 dBV/Pa at 1 kHz
