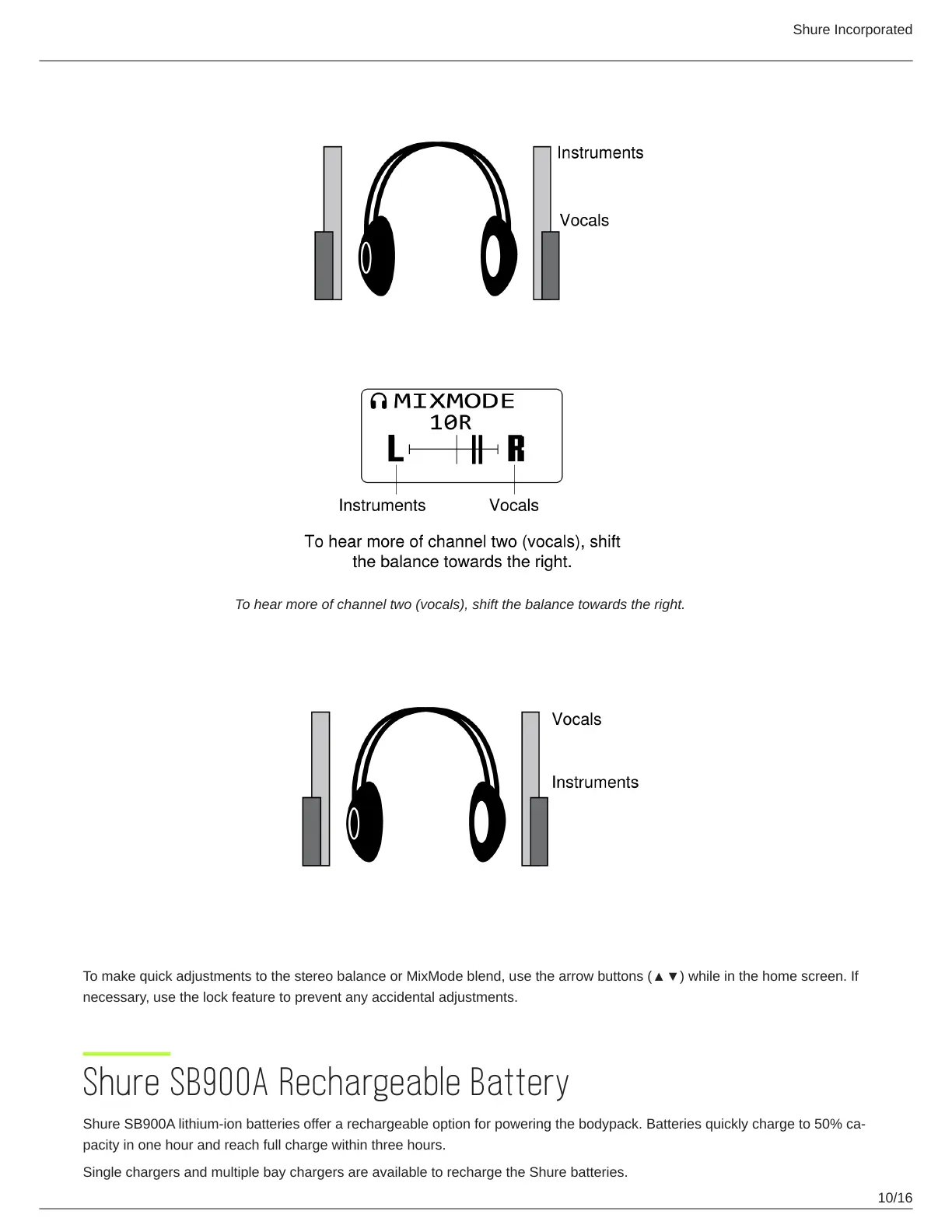

To hear more of channel two (vocals), shift the balance towards the right.
Balance and Mix Adjustments from the Home Screen
To make quick adjustments to the stereo balance or MixMode blend, use the arrow buttons (▲▼) while in the home screen. If
necessary, use the lock feature to prevent any accidental adjustments.
Shure SB900A Rechargeable Battery
Shure SB900A lithiumion batteries offer a rechargeable option for powering the bodypack. Batteries quickly charge to 50% ca
pacity in one hour and reach full charge within three hours.
Single chargers and multiple bay chargers are available to recharge the Shure batteries.

Shure P3RA Specifications

General

Display	LCD
Housing	Metal
Image Rejection	> 90 dB
Adjacent Channel Selectivity	>70 dB
Intermodulation Attenuation	>70 dB
Blocking	> 80 dB
Tuning Steps	25 kHz
Type	Bodypack
Frequency Range	470 - 952 MHz
Audio Output Power	100 mW (at 1 kHz, <1% distortion, typical)
Dimensions	99 mm x 66 mm x 23 mm
RF Frequency Range	470 - 952 MHz
RF Sensitivity	2.2 μV at 20 dB SINAD
Minimum Load Impedance	16 Ω
Headphone Connector	3.5 mm
Battery Type	SB900A
Audio THD	< 0.5%
Power Requirements	2 AA batteries or Shure SB900A rechargeable battery
Dimensions (inches)	3.9 x 2.6 x 0.9
Net Weight	196 g (with batteries)
