9/15/17, 2)49 PMShure Publications | User Guides | QLX-D
Page 10 of 51http://pubs.shure.com/guide/QLXD/en-US

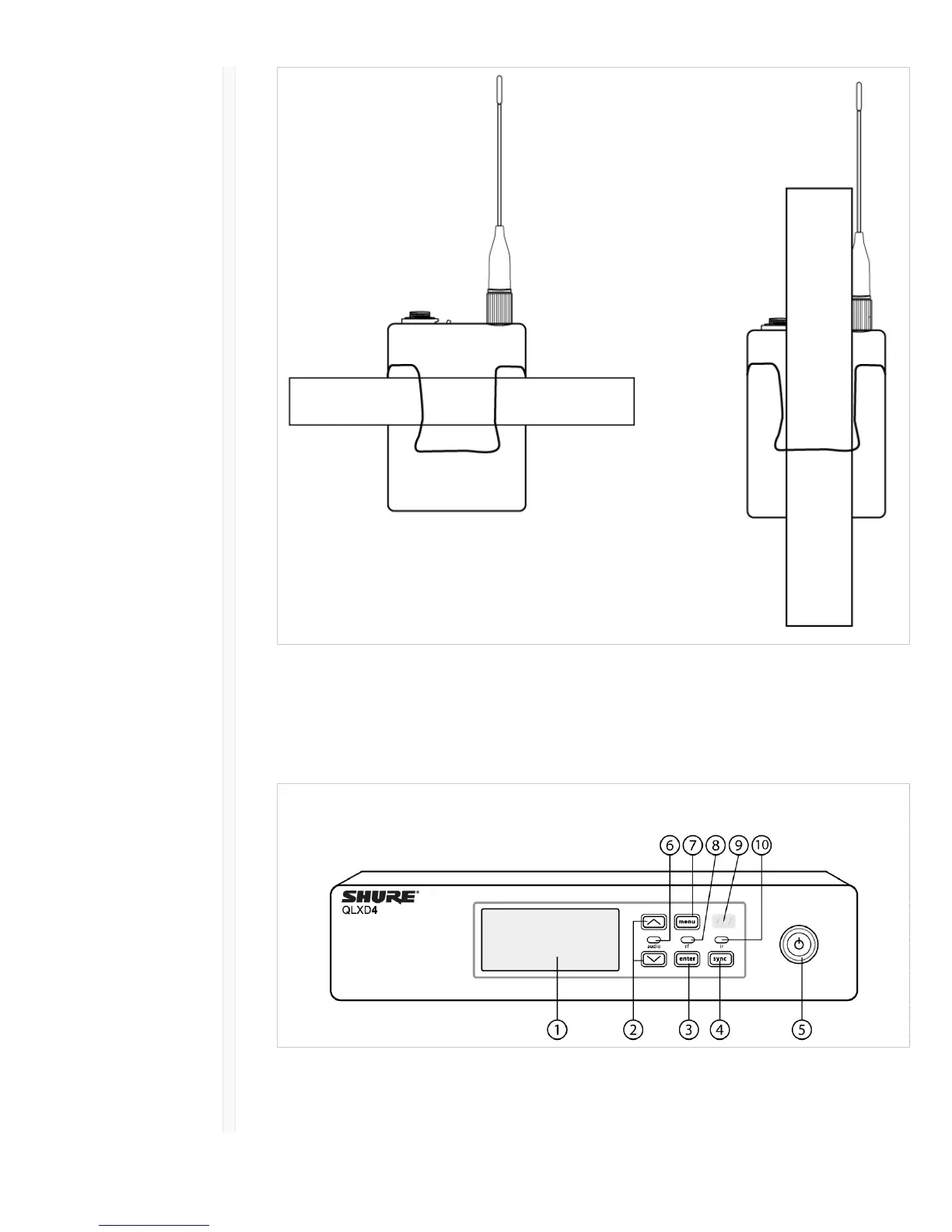

Hardware Interface
Receiver Front and Back Panels
ɠ Display Shows menu options, receiver and transmitter settings.
ɡ Arrow Buttons Adjust gain setting or change menu parameters.
