ɢ Enter Button Press to save menu or parameter changes.
ɣ Sync Button Press to activate IR sync.
ɤ Power Switch Powers receiver on or off.
ɥ Audio LED Green = normal
Yellow = signal approaching limiter threshold
Red = limiter engaged to prevent clipping
ɦ Menu Button Press to access or select menu screens
Press to cancel pending changes
Press and hold to return to the home screen
ɧ RF LED Illuminates when RF link with transmitter is active.
ɨ IR Window Align with the transmitter IR window during an IR sync to automatically
program transmitters.
ɩ Sync LED Blinking: IR sync mode is enabled
On: Receiver and transmitter aligned for IR sync

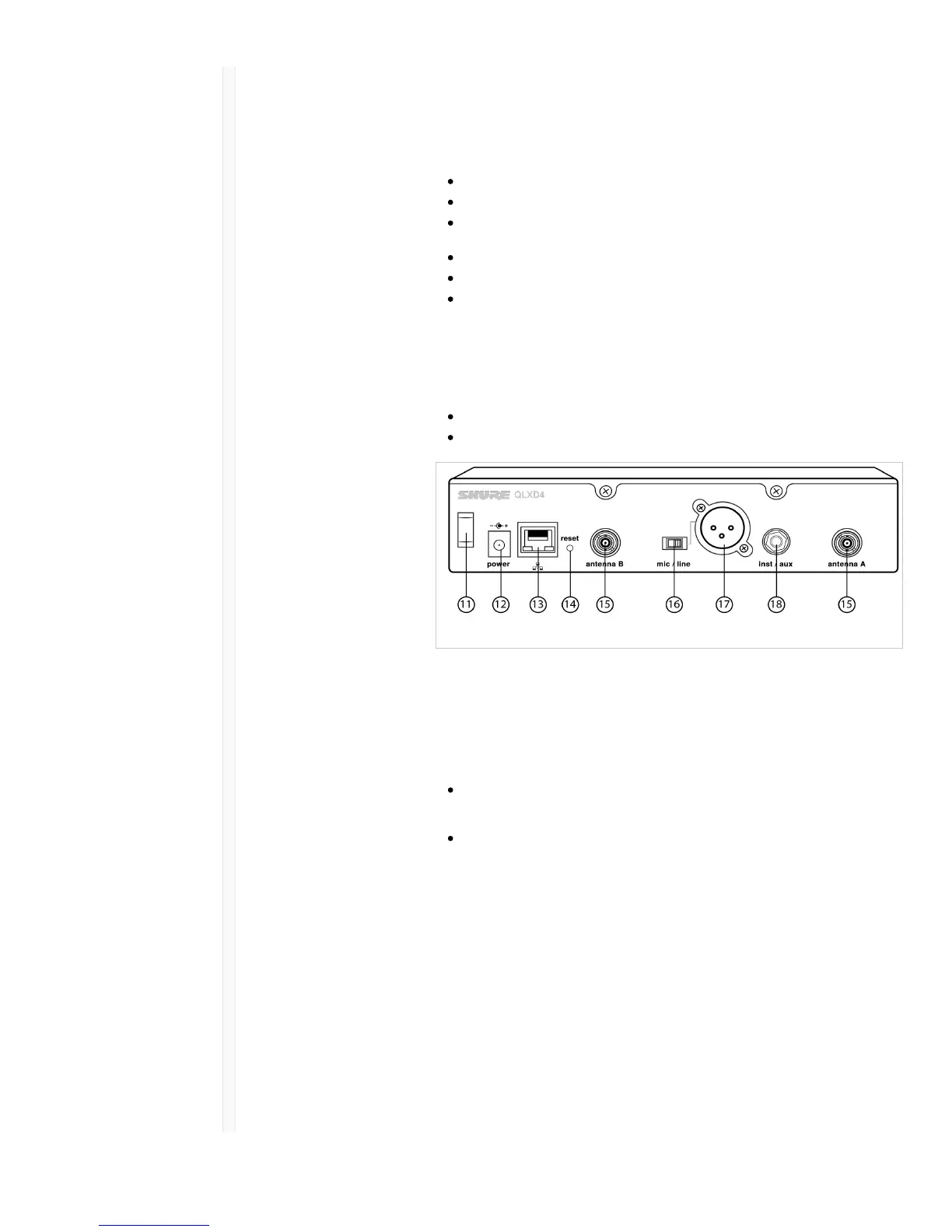

ꋷ Power Cord Strain
Relief
Secures power cord.
ꋸ Power Supply Jack Connection point for DC power supply.
ꋹ Ethernet Port For network connection.
Amber LED (network speed):
off = 10 Mbps, on = 100 Mbps
Green LED (network status):
off = no network link, on = network link active
flashing = rate corresponds to traffic volume
ꋺ Receiver Reset Press to restore receiver default settings.
ꋻ Antenna Connectors BNC connector for receiver antennas
ꋼ Mic/Line Switch Sets output level to microphone or line.
ꋽ XLR Audio Output Balanced (1: ground, 2: audio +, 3: audio - )
ꋾ 1/4"
Instrument/Auxiliary
Output
Impedance Balanced (Tip: audio, Ring: no audio, Sleeve: ground)
