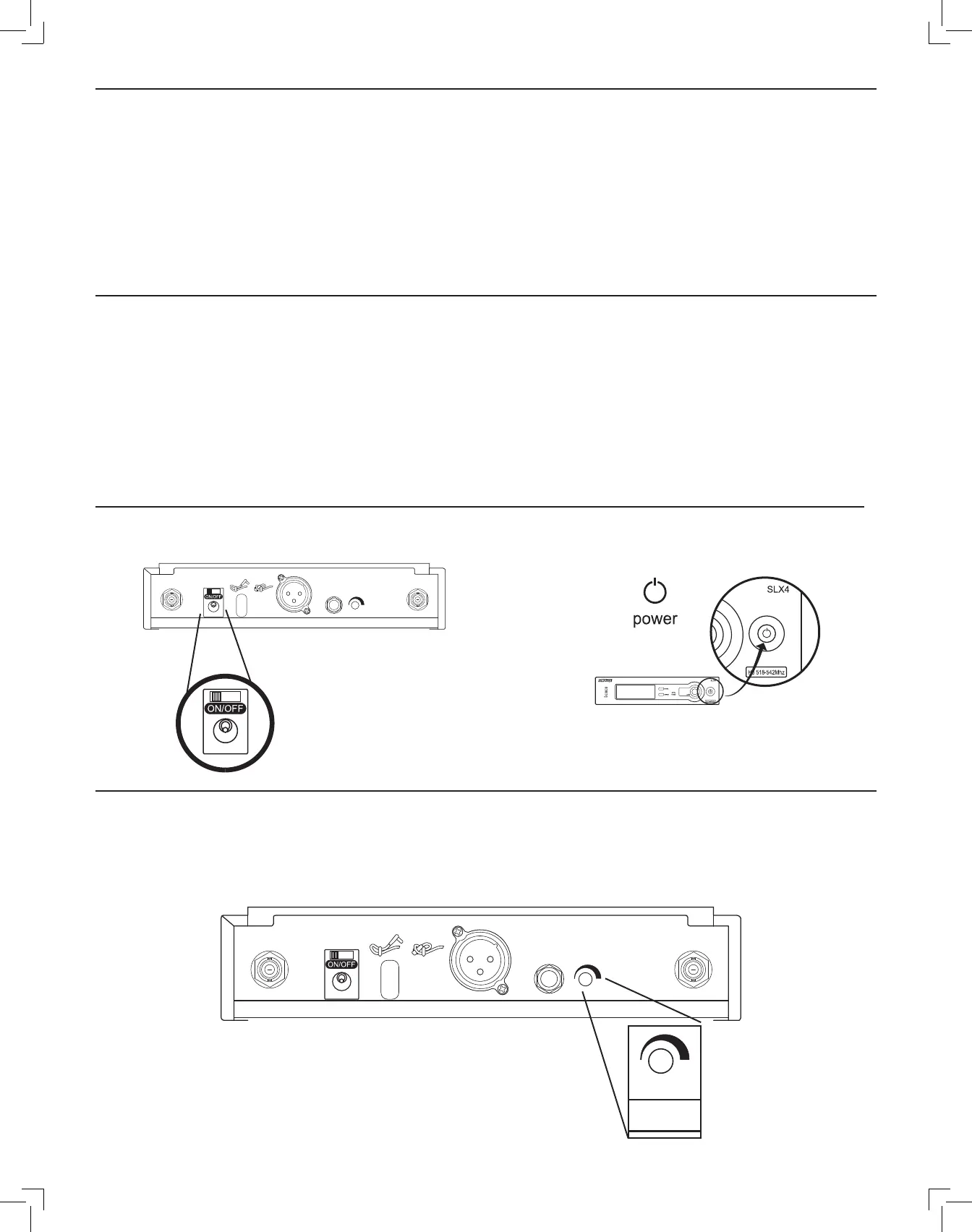

Power Switch
Make sure the power switch is “ON”
On/Off switch
Tap to turn on, hold to turn off.
Receiver Volume Control
The volume control dial should generally be left in the clockwise position. Turning the dial
counter-clockwise decreases receiver output level.
If adjustments are necessary, use a small screwdriver to turn the dial.
Single System Setup
Follow these steps when using a single SLX system:
Automatic Frequency Selection
Scans for an available channel and sets the receiver to that channel.
Automatic Transmitter Setup
1. Turn On the transmitter.
2. Open the transmitter battery compartment to display the infrared (IR) port
3. With the IR port exposed to the receiver, press sync.
4. Hold the sync button until the red light stops flashing on both receiver and transmitter.
5. When the receiver ready light glows, the system is ready for use.
6. Close the transmitter battery compartment.
Multiple System Setup
Follow these steps when using multiple SLX systems in a single installation:
1. Turn all receivers on and all transmitters off.
2. Set all receivers to the same frequency group
3. Perform Automatic Frequency Selection from the Single System Setup section above.
4. Turn on the first transmitter.
5. Perform Automatic Transmitter Setup from the Single System Setup section above.
6. Repeat for each system.
Be sure that only one transmitter’s IR port is exposed when synchronizing a system.
