SIAD ESA Pyronics ESTRO-PO E7014P User Manual

ESA ESTRO - E7014P rev. 02 - 03/05/17
www.esapyronics.com
13
FUNCTIONING
ESA ESTRO is a configurable device for burner control
that, depending on the set parameters, can assume diffe-
rent behaviour or determine different actions (see
Configuration parameters). Below there is a description
of the main functions or locks.
D7014PI09

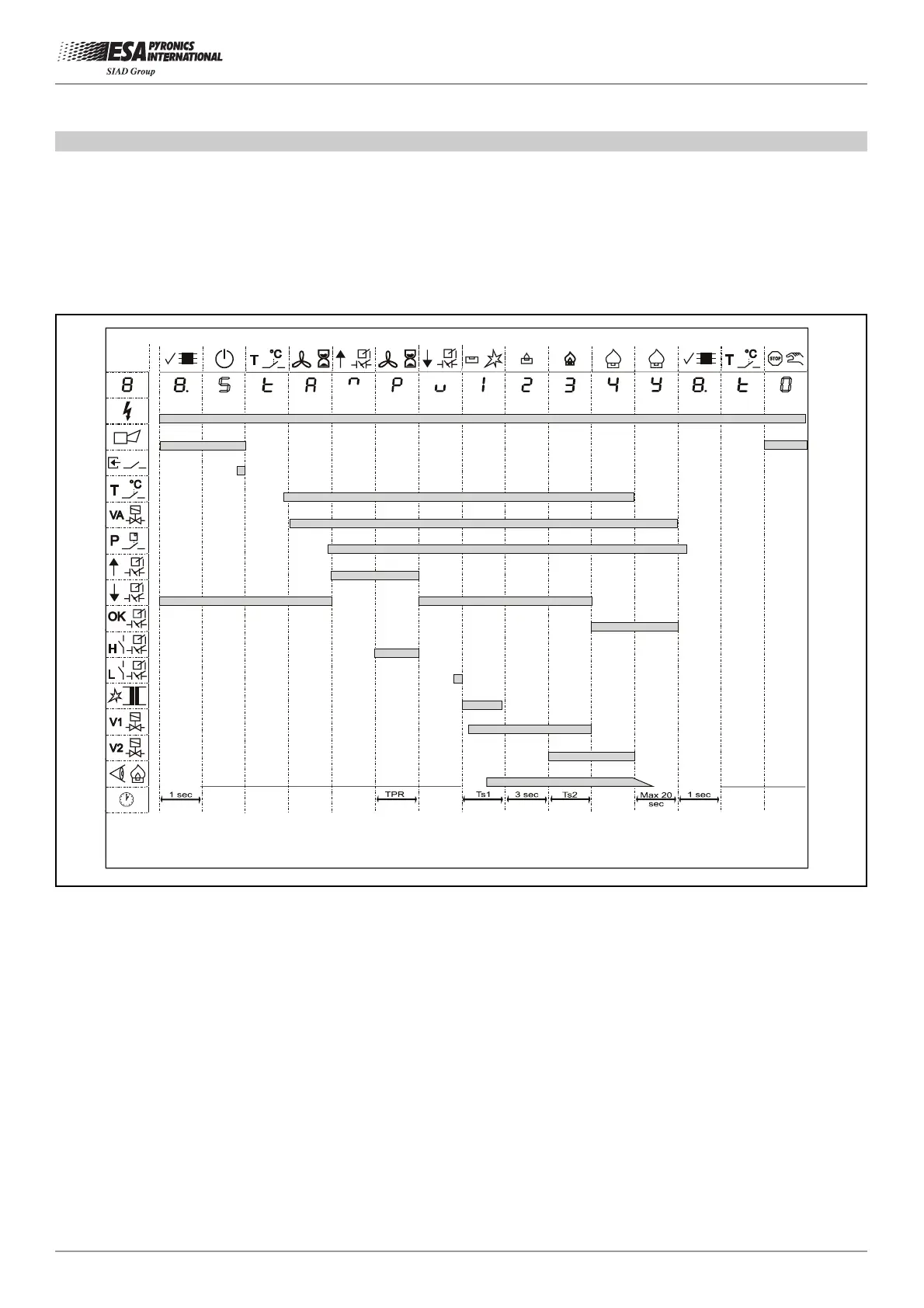

BURNER IGNITION CYCLE
The
following diagram indicates an ignition cycle when
the EXP-2 expansion card has been installed to control a
package burner with first gas stage output interrupted.
