BURNER
IGNITION CYCLE

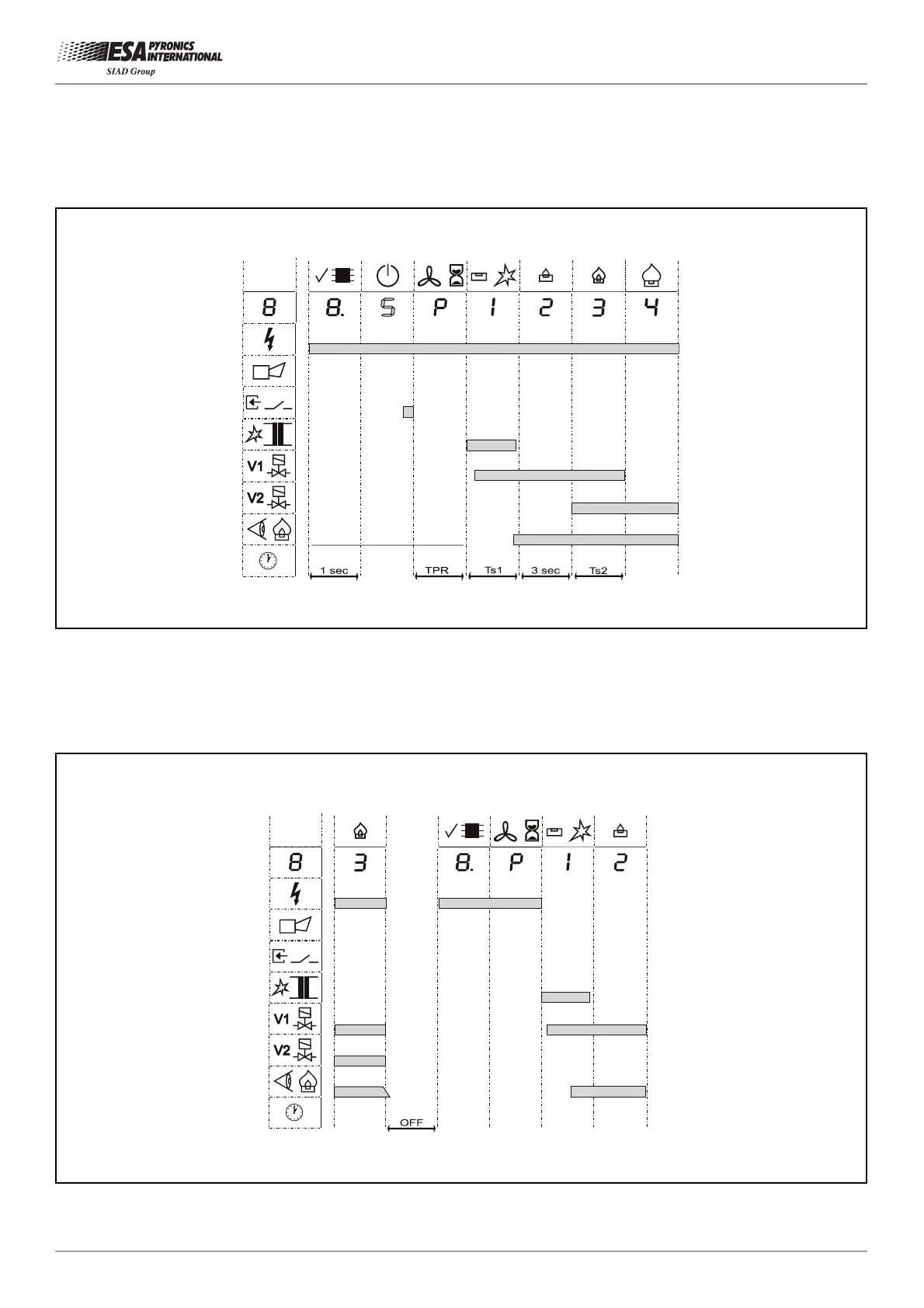

The following diagram indicates an ignition cycle of ESA ESTRO-B version without EXP-2 expansion card with first
gas stage output interrupted.
IGNITION BEHAVIOUR
The following diagrams indicate the behaviour at instrument powering according to the “Cycle start” parameter if con-
figured on “Autostart” or “Standby”.
D7014PI10
D7014PI11
COMPLETE CYCLE
AUT
OSTART
