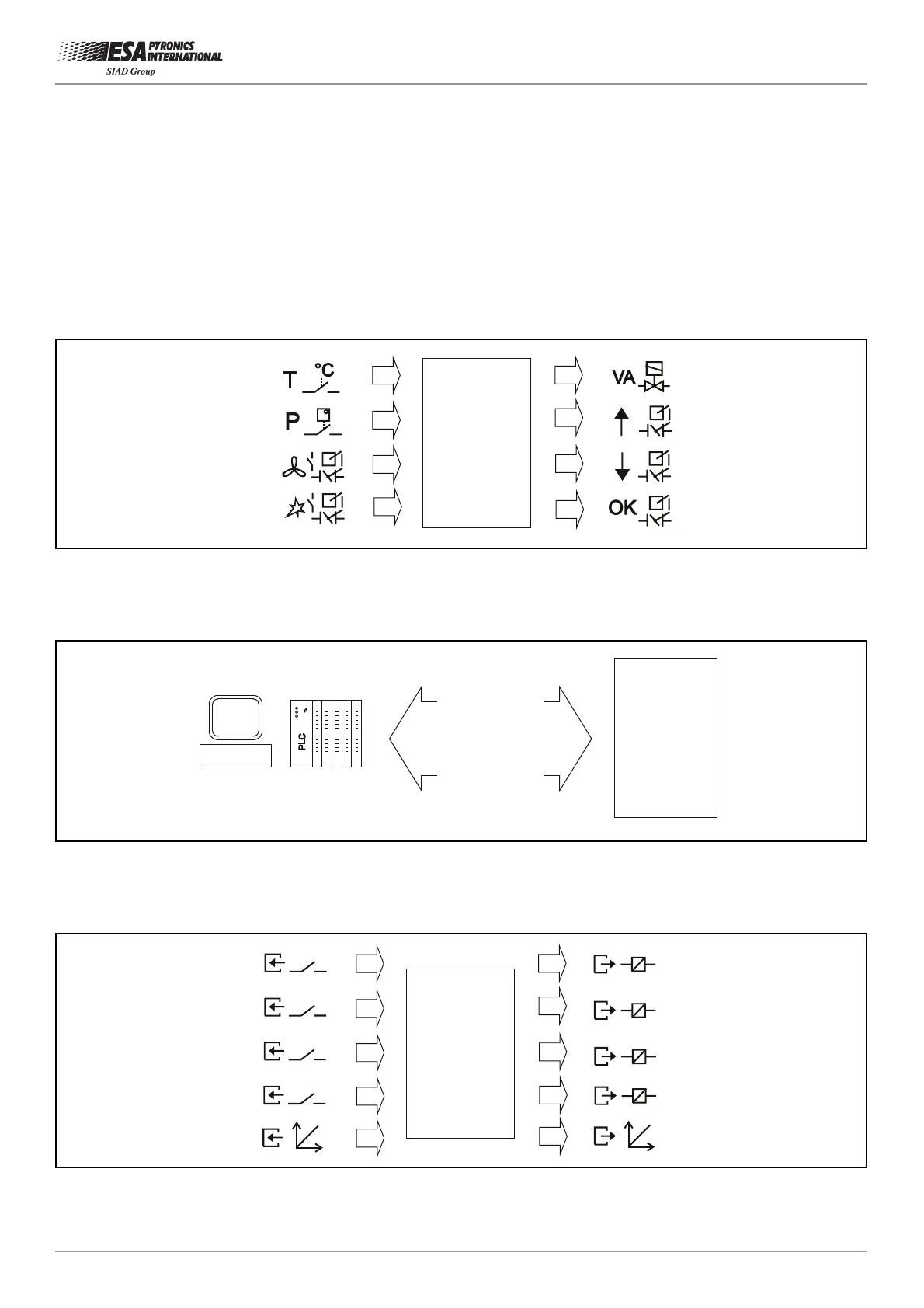

¾ESA EXP-2: expansion that allows to control a package type burner, able to activate the air valve or blower, check
the air pressure switch status and control the air damper during the prepurge and burner ignition phases. The EXP-2
expansion card can also be used only to control the air valve (for versions that are different from ESTRO-A).
¾
¾ESA
EXP-3: expansion allowing to interface the flame control with the most common field bus. For detailed informa-
tion refer to specific data sheet E7015.
ESA
EXP-3
PROFIBUS-DP
DEVICE-NET
ETHERNET
PROFINET
¾
¾ESA EXP-4: expansion having four digital inputs and four digital outputs as well as an analogical input and output,
and a serial interface that allows to control the card from remote. For detailed information refer to specific data sheet
E7016.
¾
¾ESA
EXP-5: expansion that has four digital inputs and four digital outputs with predefined functions. For detailed
information refer to the specific data sheet E7017.
ESA
EXP-4
DIGITAL
OUTPUT 1
DIGITAL
OUTPUT 2
DIGITAL
OUTPUT 3
DIGITAL
OUTPUT 4
DIGITAL
INPUT 1
DIGITAL
INPUT 2
DIGITAL
INPUT 3
DIGITAL
INPUT 4
ANALOGIC
INPUT
ANALOGIC
OUTPUT
ESA
EXP-2
AIR VALVE OR
BLOWER
THERMOSTAT
OPEN AIR
DAMPER
AIR PRESSURE
SWITCH
CLOSE AIR
DAMPER
PURGE AIR FLOW
OR DAMPER OPENED
IGNITION AIR FLOW
OR DAMPER CLOSED
REGOLATION
ENABLED
D7014PI06
D7014PI07
D7014PI08
internal relay protection fuse that blows only in case of
malfunctioning
of the first. ESA ESTRO is supplied in a
robust case in thermoset material, predisposed for the
housing of the ignition transformer and for the outputs of
the various connecting cables with external users.
Expansion cards that allow further control of the burner
devices or specific serial communication can be applied
to all the versions. The installation of the expansion cards
precludes the possibility of mounting the ignition transfor-
mer inside the instrument.The available expansions are
indicated below:
