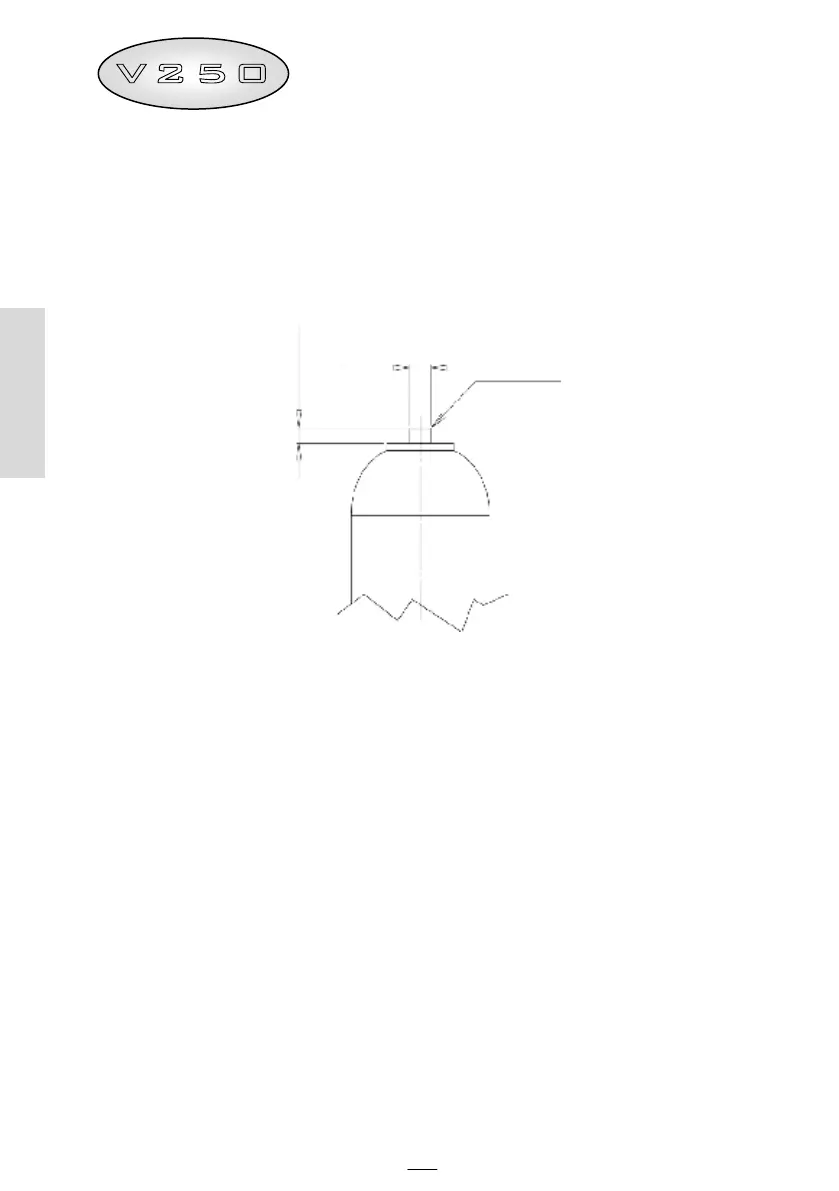

How to connect valve, upper screen and riser tube
It is enough to shorten the free end of the riser tube to a length between 0 and 6 mm
from the upper edge of the tank. Remove the sharp edges (2 mm x 30°) to avoid
damage to the seal during installation. See drawing below.
Chamfer 2 mm x 30°
Φ 50 mm
Max 6 mm Min 0 mm
