Installation and Maintenance Manual
CB8-E
5.4 Spare parts
Maintaining a supply of the most important spare and wear parts at the location is an important factor
in assuring continuous readiness of the brake for use. For required spare parts see figures 15 and 16.
When ordering spare parts please advice:
 Complete brake ident-no.
(e.g. CB8-E-100)
 Fabrication no. acc. to
name plate
(e.g. 131904)
 Quantity, position and
description
(e.g. 2 pcs. pos. 2,
brake lining 10 0000 1816)
Pos..
Quantity
Description
Article No.
CB8-E-50
CB8-E-100
1
2
brake shoe (complete set)
10 0000 2006
10 0000 1993
2
2
brake lining
00 2302 0131
10 0000 1816
3
1
brake spring
10 0000 5383
4
1
thrustor
10 0000 0569
Fig. 16: Spare parts for brake caliper CB8-E
Use only original spare parts, because these components are relevant for safety and have to meet
specified quality.
CAUTION
Liability or warranty is ruled out for any damage resulting from the use of non-original spare
parts.
4
1
3
2

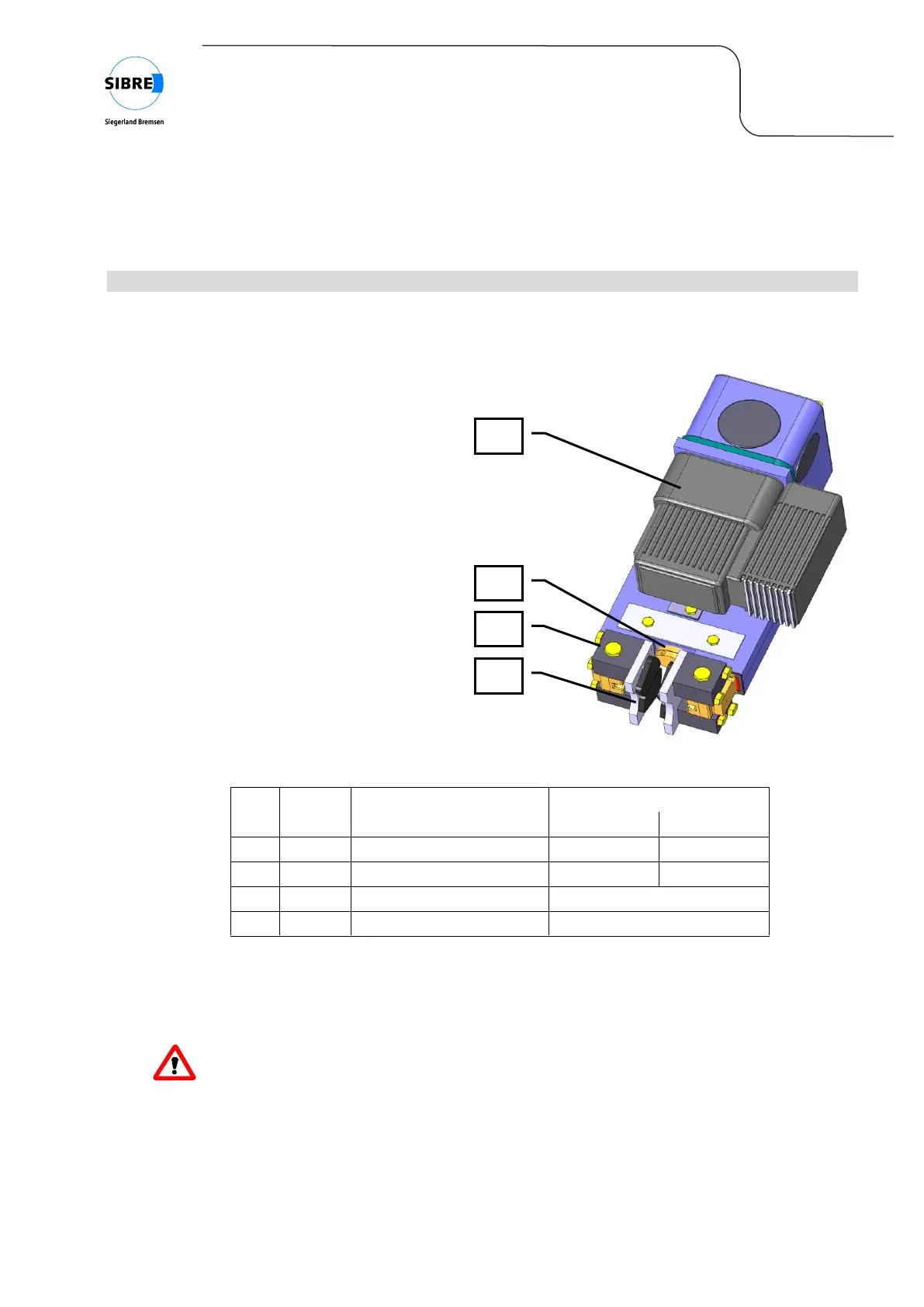

Fig. 15: Spare parts for CB8-E
