SIBRE CB8-E Series - Mounting of the Brake

B06 20 243 E-EN
page 11 / 23
09.2010
Installation and Maintenance Manual
CB8-E
mounting
bolts
(3 x M16)
Sinter brake linings are less sensitive to dirt, grease and oil and can in some cases - where not fully
soaked up with oil - be cleaned with solvent and re-used.
WARNING
Solvent cleaners can be flammable, poisonous and can cause burns. To avoid serious
personal injury, follow the manufacturer’s instructions and see §4.5.

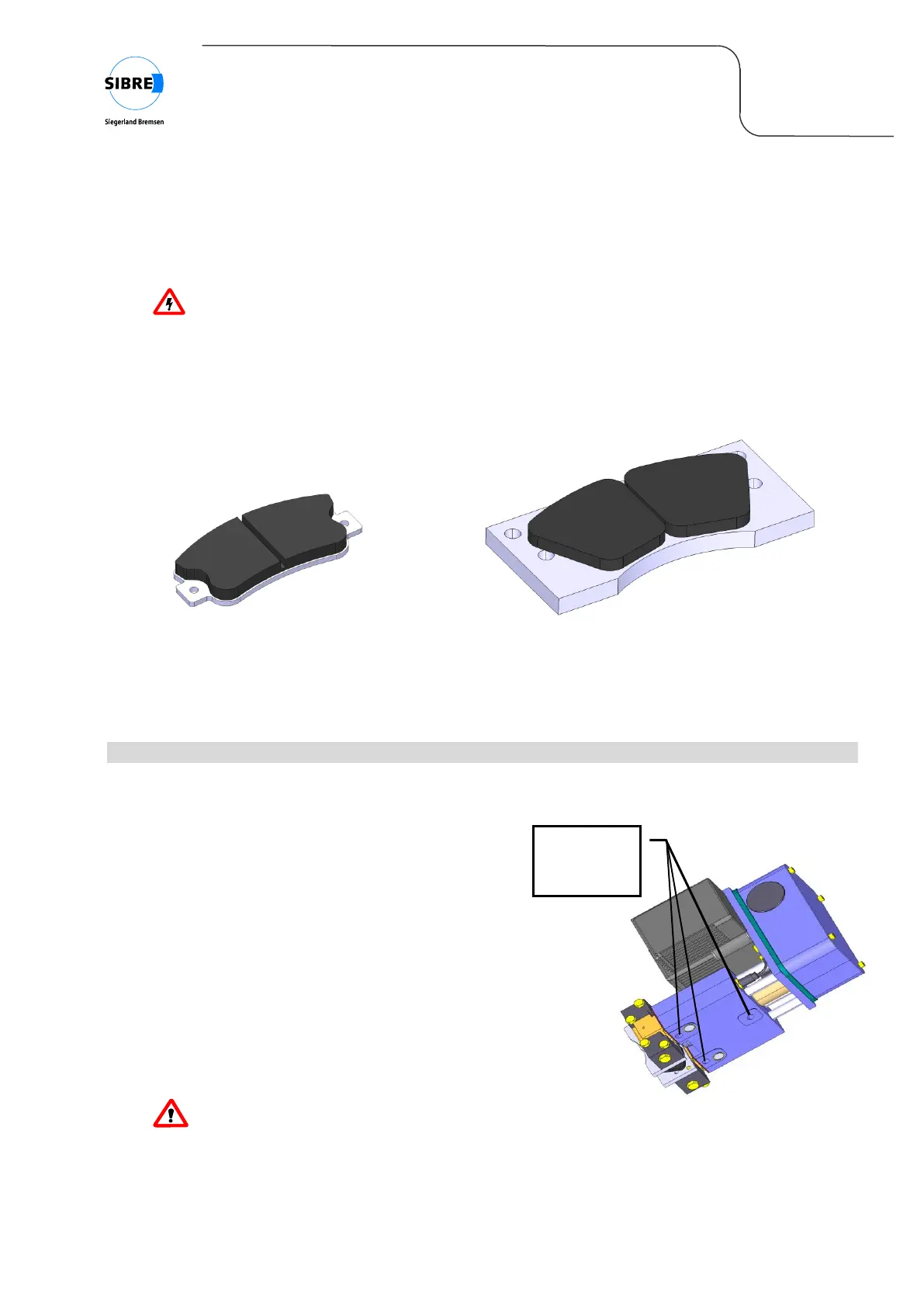

The different types of linings can be seen in figure 4.
a) organic lining size 50 for CB8-E-50 b) sinter lining size 100 for CB8-E-100
Fig. 4: Different types of brake linings for CB8
4.8 Mounting of the brake – initial setup on site
Ex works the gap between the lining surfaces is adjusted to the disc thickness the customer has
specified and fixed with a (wooden) distance piece.
The mounting of the brake should be done as
follows.
1. Open the brake with the help of the manual
release (see §4.9) and remove the distance
piece.
2. Put the brake on the sub-construction and
mount the three fastening bolts (figure 5).
Tighten the bolts only by hand in order to enable
the brake to centre itself when closing.
CAUTION
Choose bolt length so that bolts cannot jut inside
the housing and block the square part (max. overhang 14 mm).
3. Close the brake with the manual release. The brake will align automatically when closed.
Fig. 5: Mounting of CB8-E
