Installation and Maintenance Manual
CB8-E
3.2 Dimensions
dimensions depending on selected lining size
ØD1
ØD3
R
H
CB8-M3-50 with lining size 50
ØD2 – 46
ØD2 – 110
ØD2 /2 + 19.5
120
CB8-M4-100 with lining size 100
ØD2 – 60
ØD2 – 140
ØD2 /2 + 15
170
Braking torque in Nm (µ = 0,4) on disc-Ø D2,
adjustable from / to
Ø 200
Ø 250
Ø 315
Ø 400
Ø 500
CB8-M3-50
80-300
110-400
140-530
180-700
n.a.
CB8-M4-100
n.a.
350-680
460-910
620-1220
800-1580

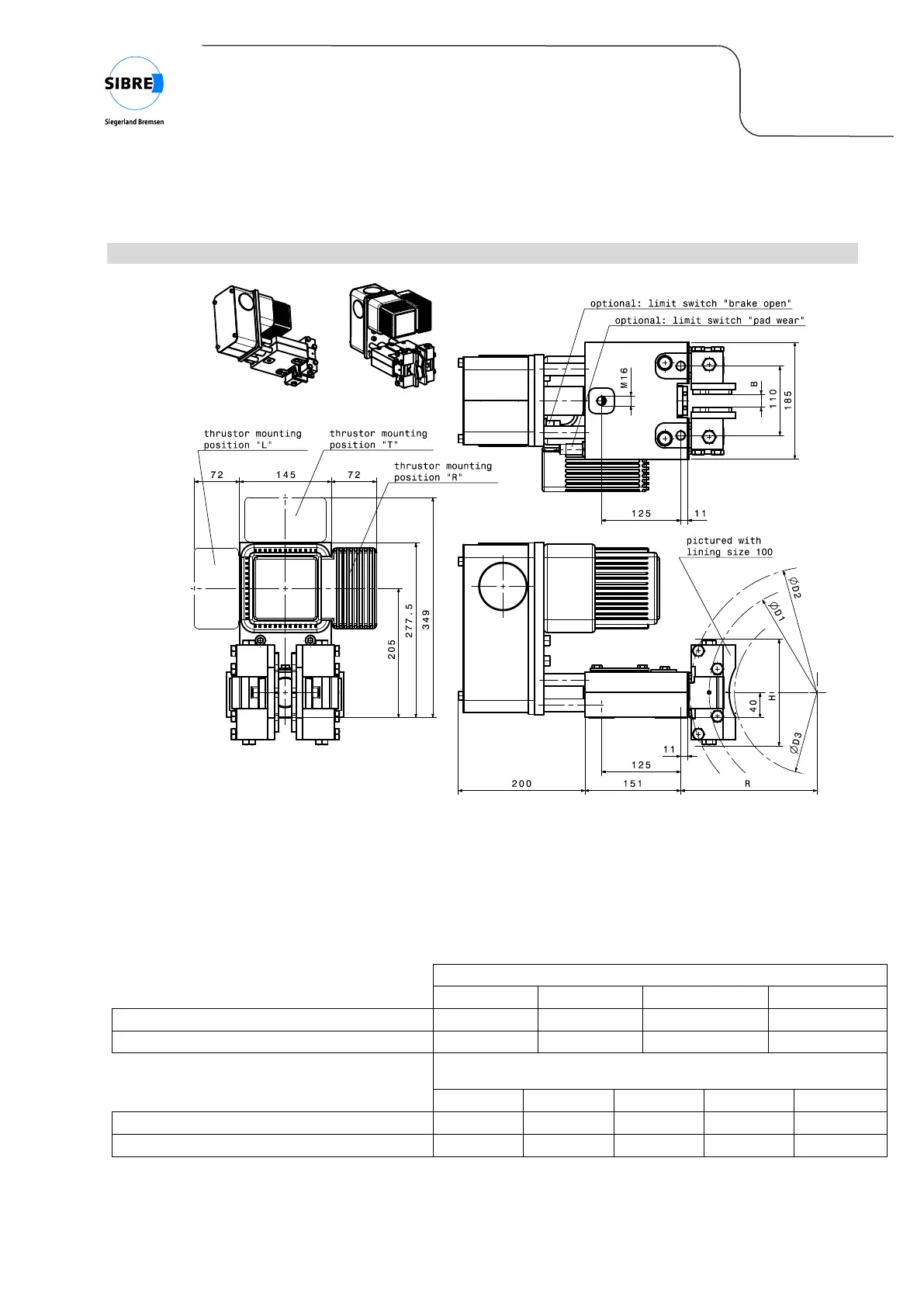

Fig. 3: Dimensions of CB8-E
Options protective cover, manual release, limit switches „brake open“ & „pad wear“
thrustor mounting position selectable between “L”, “T” or “R”
B = disc thickness in mm, Standard = 20, optional: 12.7; 16; 25; 30
ØD2 = outer disc diameter in mm
linings: = organic, size 50 (suitable for circum. disc speed v
max
= 35 m/sec)
= sinter, size 100 (available for disc diameter ØD2  250)
