SICK KTX Prime User Manual

Attribute Value
Ambient temperature (storage) –25 °C ... +75 °C
Protection class III
Circuit protection U
V
connections, reverse polarity protected, output Q
short-circuit protected, interference-pulse suppression
Max. output current of the switching
output
100 mA
2
1
Operation in short-circuit protected network max. 8 A
2
Sum current of all digital outputs
Deviating data for high sensitivity
Table 17: Technical data, high sensitivity
Attribute Value
Switching frequency 25 kHz
1-point teach-in (color mode): 8 kHz
Response time 20 µs
1-point teach-in (color mode): 60 µs
Jitter 10 µs
1-point teach-in: 30 µs
Deviating data for high precision
Table 18: Technical data, high precision
Attribute Value
Switching frequency 70 kHz
1-point teach-in (color mode): 16 kHz
Response time 3 µs
1-point teach-in (color mode): 30 µs
Jitter 3 µs
1-point teach-in: 15 µs

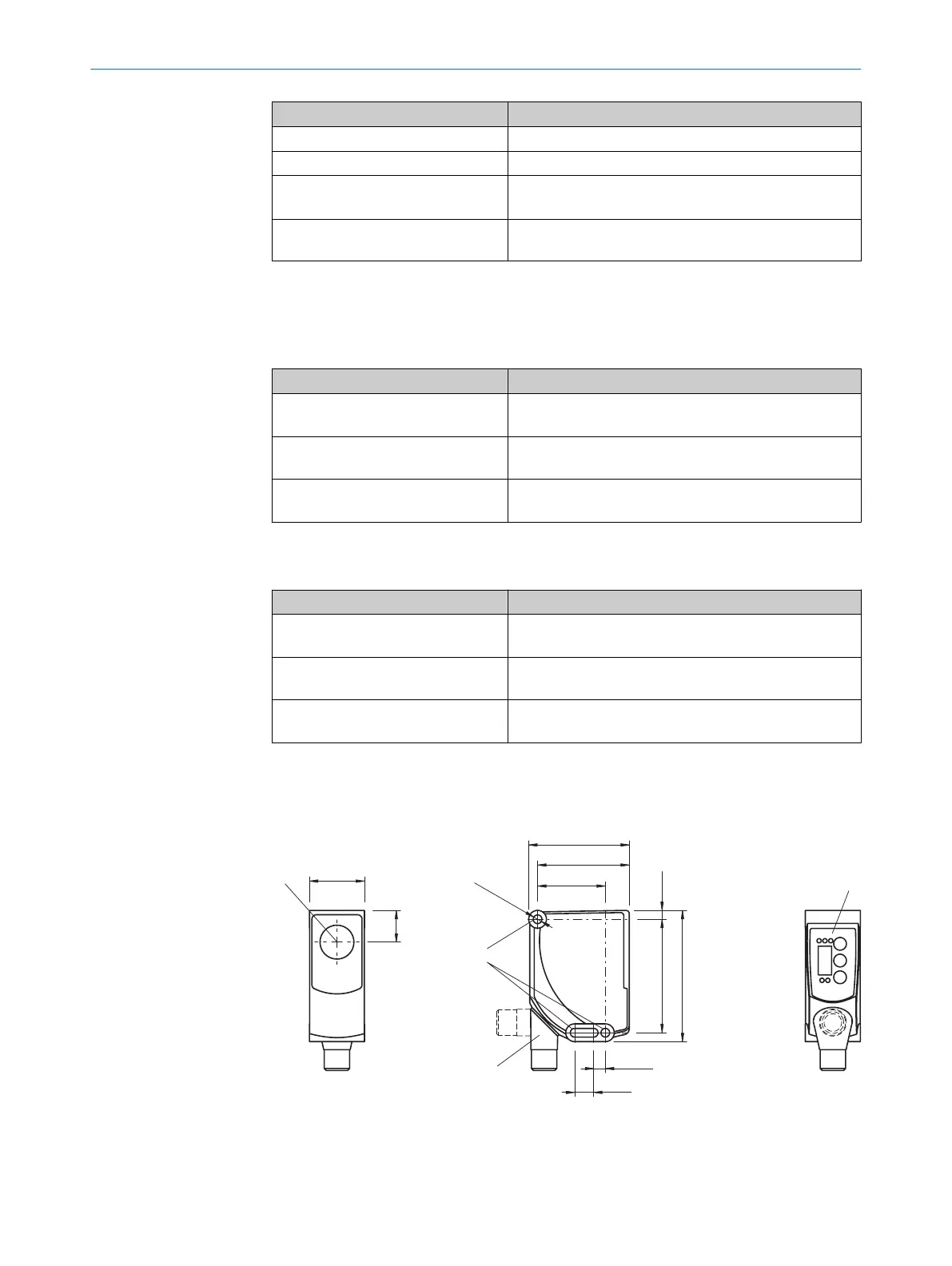

11.2 Dimensional drawings
KTS
Ø 4,1
62
43,3
9
5,5
32
53,6
4,2
47,5
2
3
26
15
1
4
1
Optical axis
2
Fixing hole
3
M12 device connection, can be rotated by 180°
4
Control panel
TECHNICAL DATA 11
8020708.ZMT3/ | SICK O P E R A T I N G I N S T R U C T I O N S | KTS/KTX Prime
47
Subject to change without notice
