SICK ReLy OSSD1

0,1 0,5 1,0 5,0 10
1
0
100
1000
10000
1
→
2
→
DC-1: 24V
AC-1: 230V
AC-15: 230V
DC-13: 24V

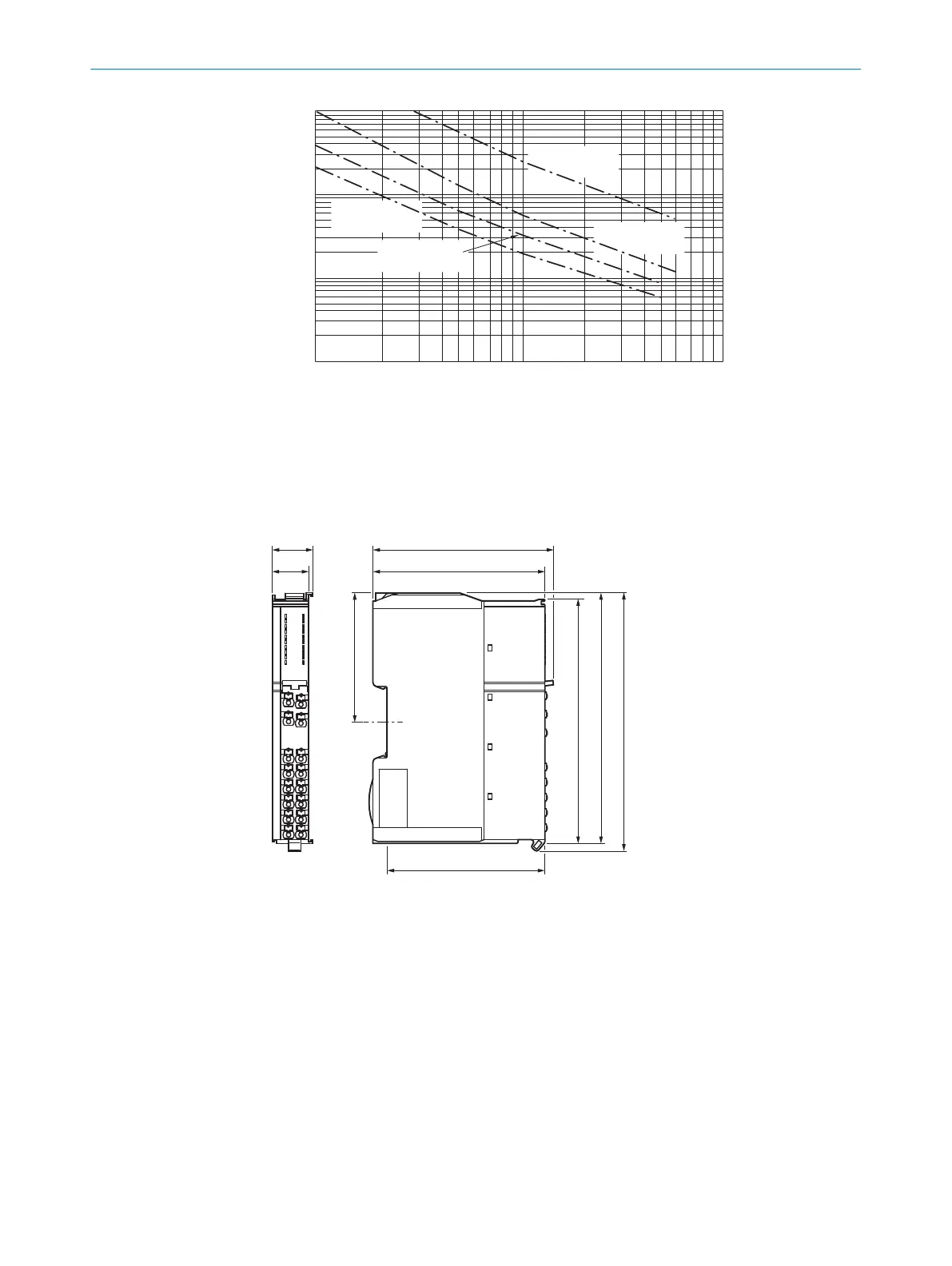

Figure 12: Electrical endurance of contacts 13/14 and 23/24
1
Switching operations × 1,000
2
Switching current (A)
10.2 Dimensional drawings
20,1
18
85,5
87,7
124,6
64,4
128,3
78,7
120,7
Figure 13: Dimensional drawing
