NOTE
For reliable read and write processes, align the antenna of the HF transponder opti‐
mally to the antenna of the device depending on the type.
•
Transponder plane-parallel: disk, coins and ISO card
•
Transponder vertical: cylinder, glass and on-metal
The values specified in the working range of the device can only be achieved if the
transponder is correspondingly aligned to the transponder antenna, see "Working range
of the antenna", page 17.
RFH505, RFH510

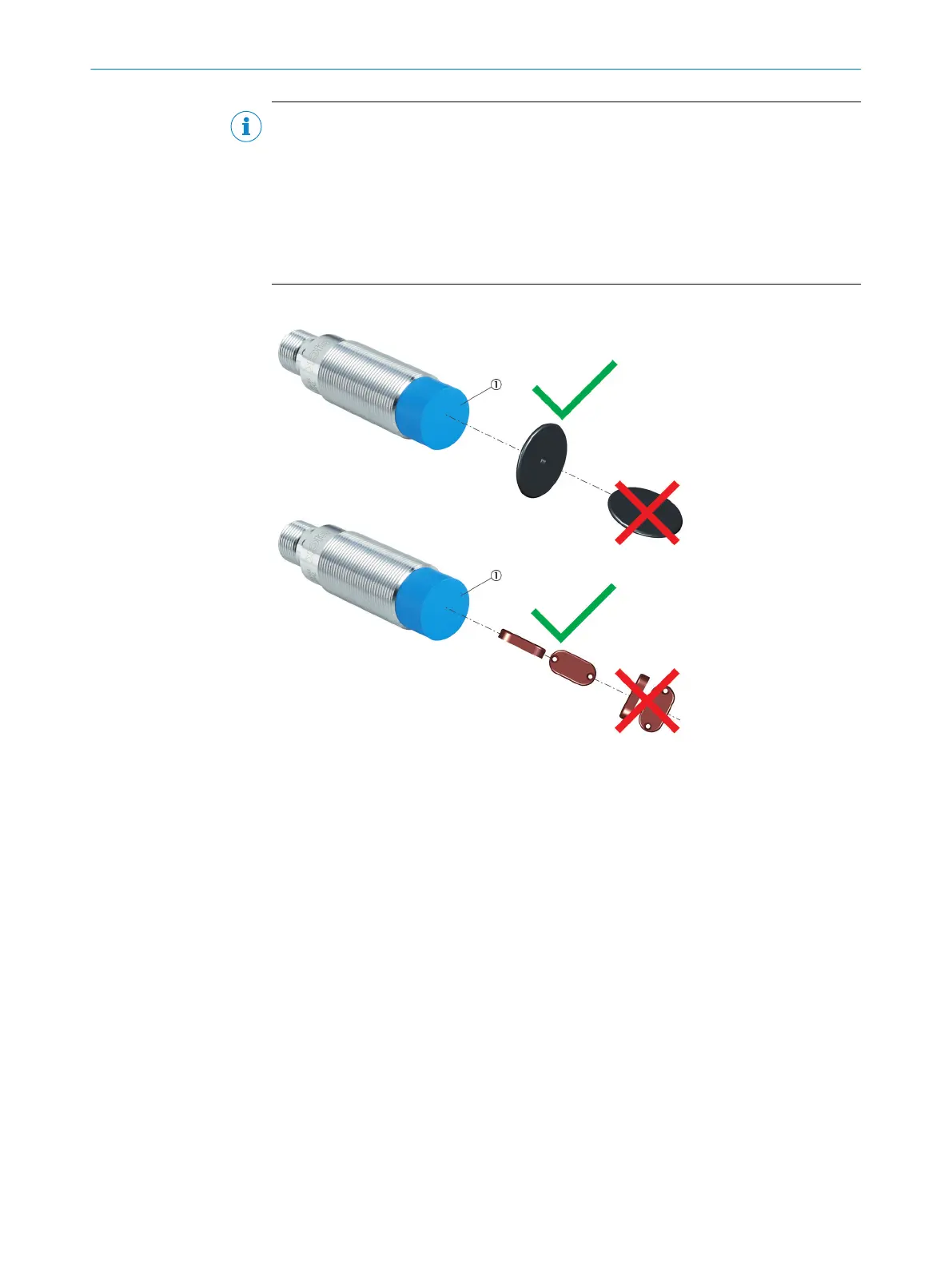

Figure 13: Optimal alignment of the transponders for a reliable read and write process.
