Technical Information Chapter 5
TiM55x/56x/57x
Measured value output
8015883/YZK8/2016-07-07 © SICK AG · Germany · All rights reserved · Subject to change without notice 23
5.2.2 Continuous measured value output
If the data from ongoing measuring processes are required, the TiM5xx sends measured
values from successive scans until the output of measured values is stopped again using
the same telegram.
Example of continuous measured value output
1. Start measured value output
Request:
<STX>sEN LMDscandata 1<ETX>
Answer of TiM5xx (acknowledgement of request):
<STX>sEA LMDscandata 1<ETX>
Answer of TiM5xx (measured value output):
<STX>sSN LMDscandata (contents see Chapter 5.3 Measured value output fomat,
Page 24) <ETX>
2. Stop measured value output
Request:
<STX>sEN LMDscandata 0<ETX>
Answer of TiM5xx (acknowledgement of request):
<STX>sEA LMDscandata 0<ETX>

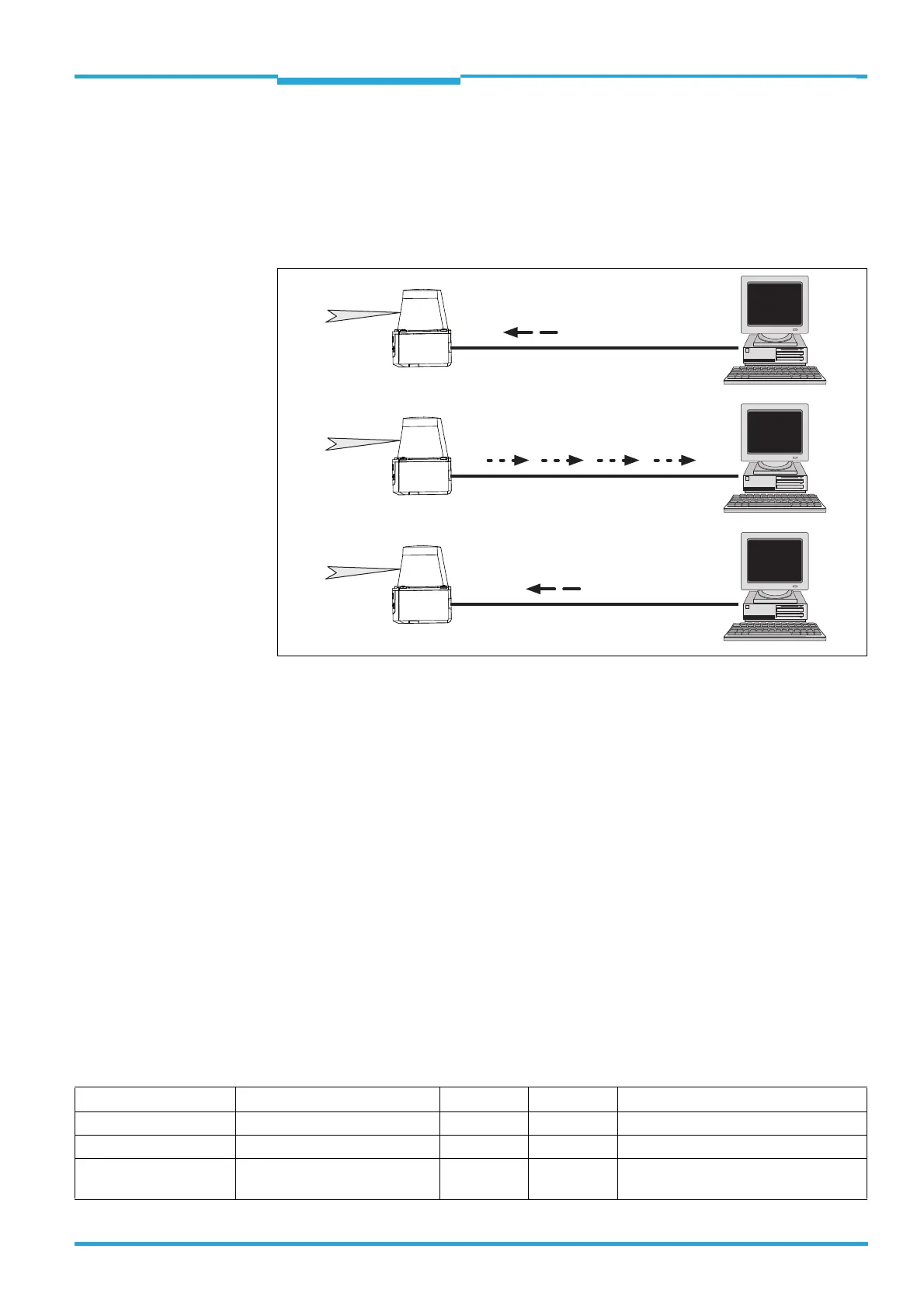

Telegram structure: sEN LMDscandata MeasurementStartStop
Measured value request
Output of the measured value telegrams
Stop the output
Telegram part Description Variable type Length (byte) Value range
Type of command Request (SOPAS event by name) string 3 sEN
Command Data request string 11 LMDscandata
MeasurementStartStop Enum8 1 0 Stop measured value output
1 Start measured value output
