Chapter 4 Operating Instructions
WSU/WEU263
20 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8013338/YTA4/2016-03-24
Subject to change without notice
Mounting
4.2.1 Deflector mirror
With the WSU/WEU26@3 and deflector mirrors, access protection on several sides can be
realised (Fig. 10).
The usage of deflector mirrors reduces the effective scanning range of the system
WSU/WEU26@3 as specified in Tab. 7.
The usage of mirrors (Fig. 11) requires very precise alignment. It is recommended to use
the AR60 laser alignment aid. The AR60 alignment aid is available as an accessory (Tab.
17, page 36).
Number of mirrors WEU26-3 with short scanning range WEU26-3 with long scanning range
1 0.5 ... 18 m 14.2 ... 63 m
2 0.5 ... 16 m 13.5 ... 56 m
3 0.5 ... 14.3 m 12.8 ... 50 m
4 0.5 ... 12.8 m 12.2 ... 45 m
Note
Note
Tab.
7
:
Reduction in the
scanning range on the usage
of deflector mirrors with
= 90°

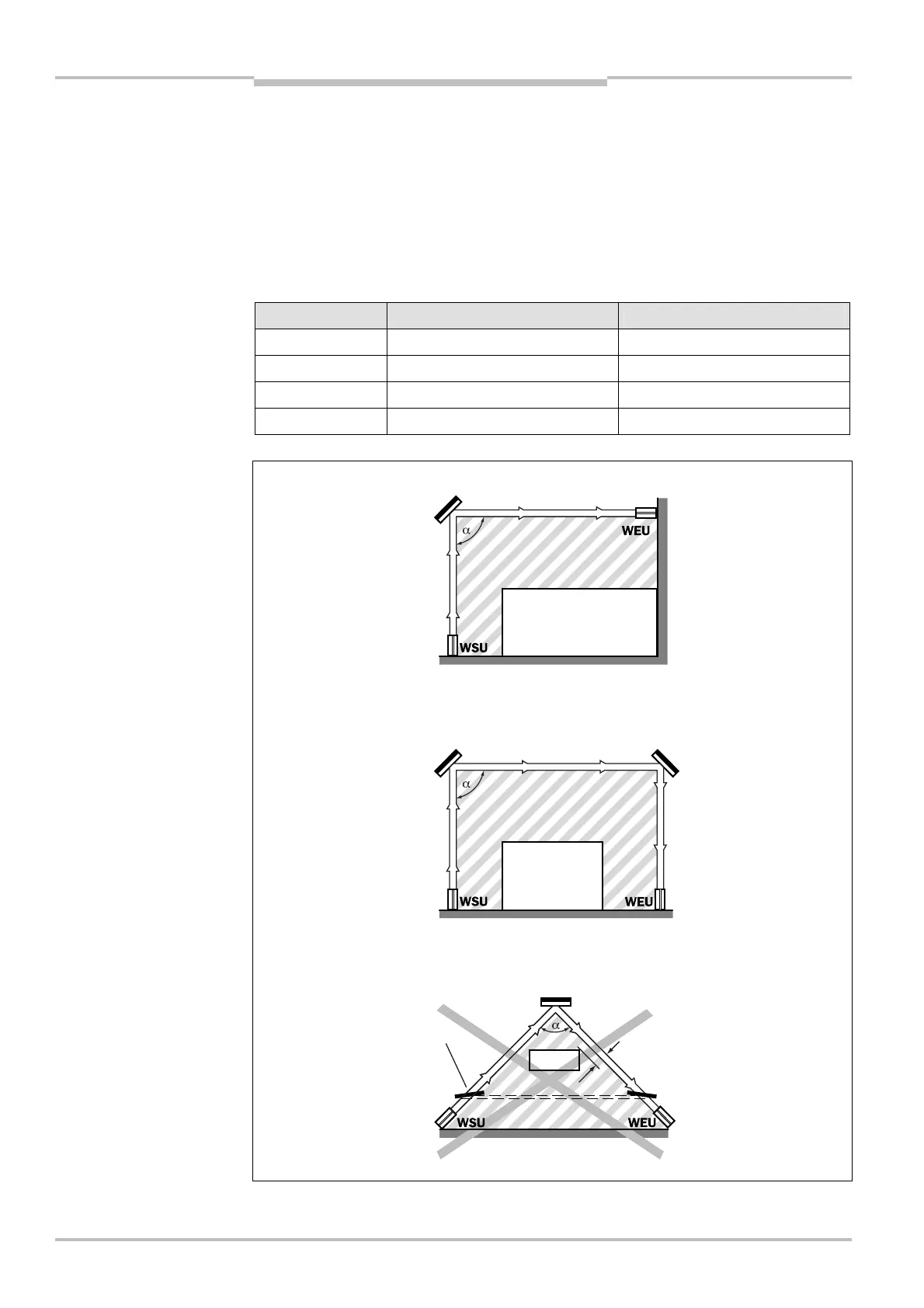

Fig.
10
:
Hazardous area
protected on several sides
Deflector mirror
Deflector mirror
Deflector mirror
Mirror deflection
possible
Safety distance
too short
Hazardous area
Machine
Machine
Machine
Hazardous area
