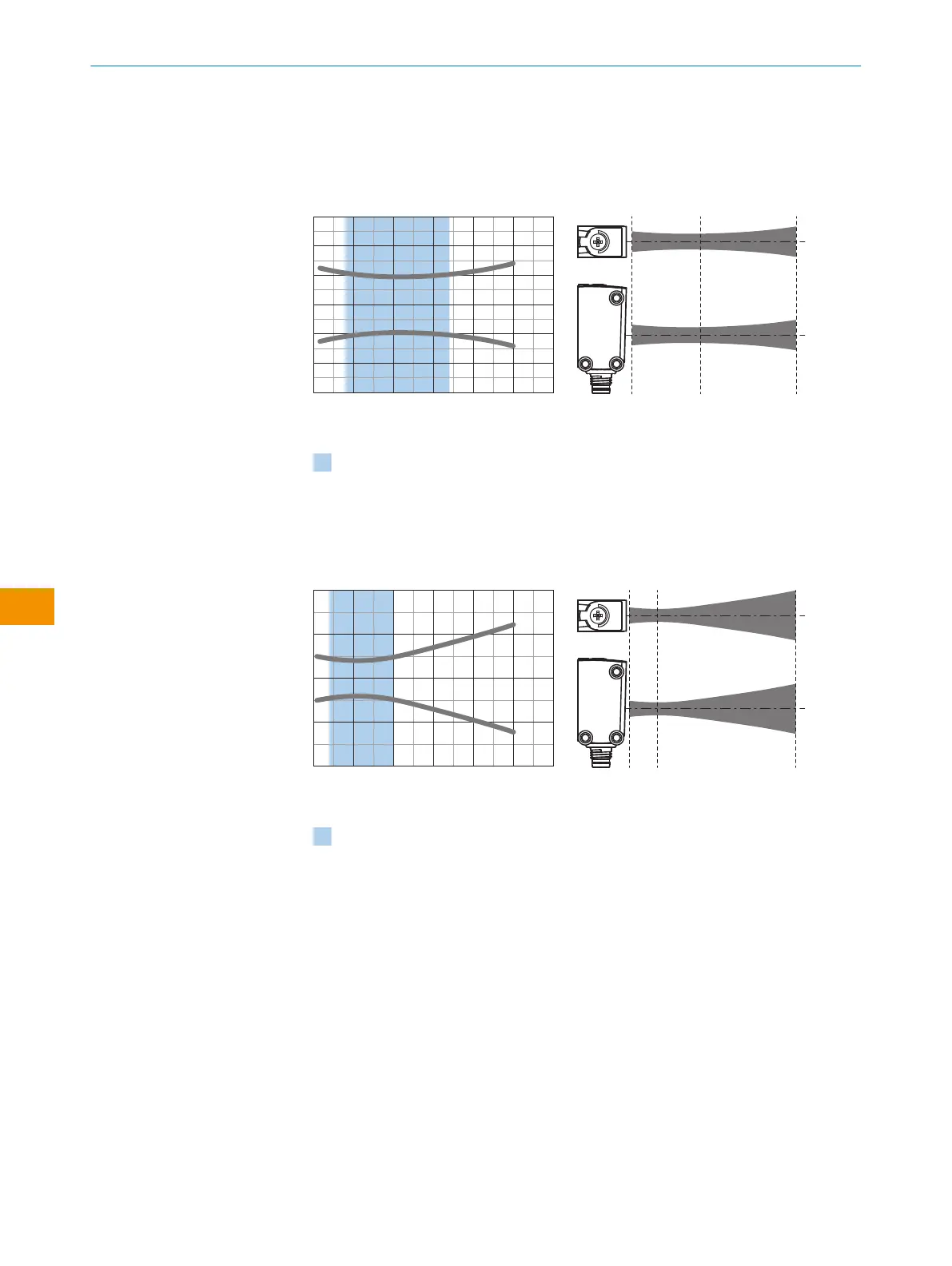

11.3 Diagramme de spot lumineux
MultiMode 1, 2, 3, 4, 5, M
0
Distance in mm (inch)
Dimensions in mm (inch)
4
(0.16)
6
(0.24)
–6
(–0.24)
–4
(–0.16)
0
2
(0.08)
–2
(–0.08)
Recommended sensing range for
the best performance
150
(5.91)
100
(3.94)
50
(1.97)
200
(7.87)
250
(9.84)
300
(11.81)
10
(0.39)
250
(9.84)
110
(4.33)
Illustration 17: WTB4SP-xxxxx1xx
MultiMode 6
0
Distance in mm (inch)
Dimensions in mm (inch)
5
(0.20)
10
(0.39)
–10
(–0.39)
–5
(–0.20)
0
Recommended sensing range for
the best performance
300
(11.81)
200
(7.87)
100
(3.94)
400
(15.75)
500
(19.69)
600
(23.62)
500
(19.69)
110
(4.33)
10
(0.39)
Illustration 18: WTB4SP-xxxxxAxx
