SICK WTM4S - Page 310

0
150
(5.91)
100
(3.94)
50
(1.97)
200
(7.87)
250
(9.84)
300
(11.81)
0
y
x
Distance in mm (inch)
Recommended sensing range for
the best performance
7
(0.28)
5
(0.20)
6
(0.24)
4
(0.16)
3
(0.12)
2
(0.08)
1
(0.04)
Minimum object height in mm (inch)
Example:
Reliable detection of the object
Black background (6 % remission factor)
Distance of sensor to background x = 100 mm
Required minimum object height y = 1.9 mm
For all objects regardless of their colors
Background
x
y
2
6%/90%
90%/90%
1
6%/6%
90%/6%

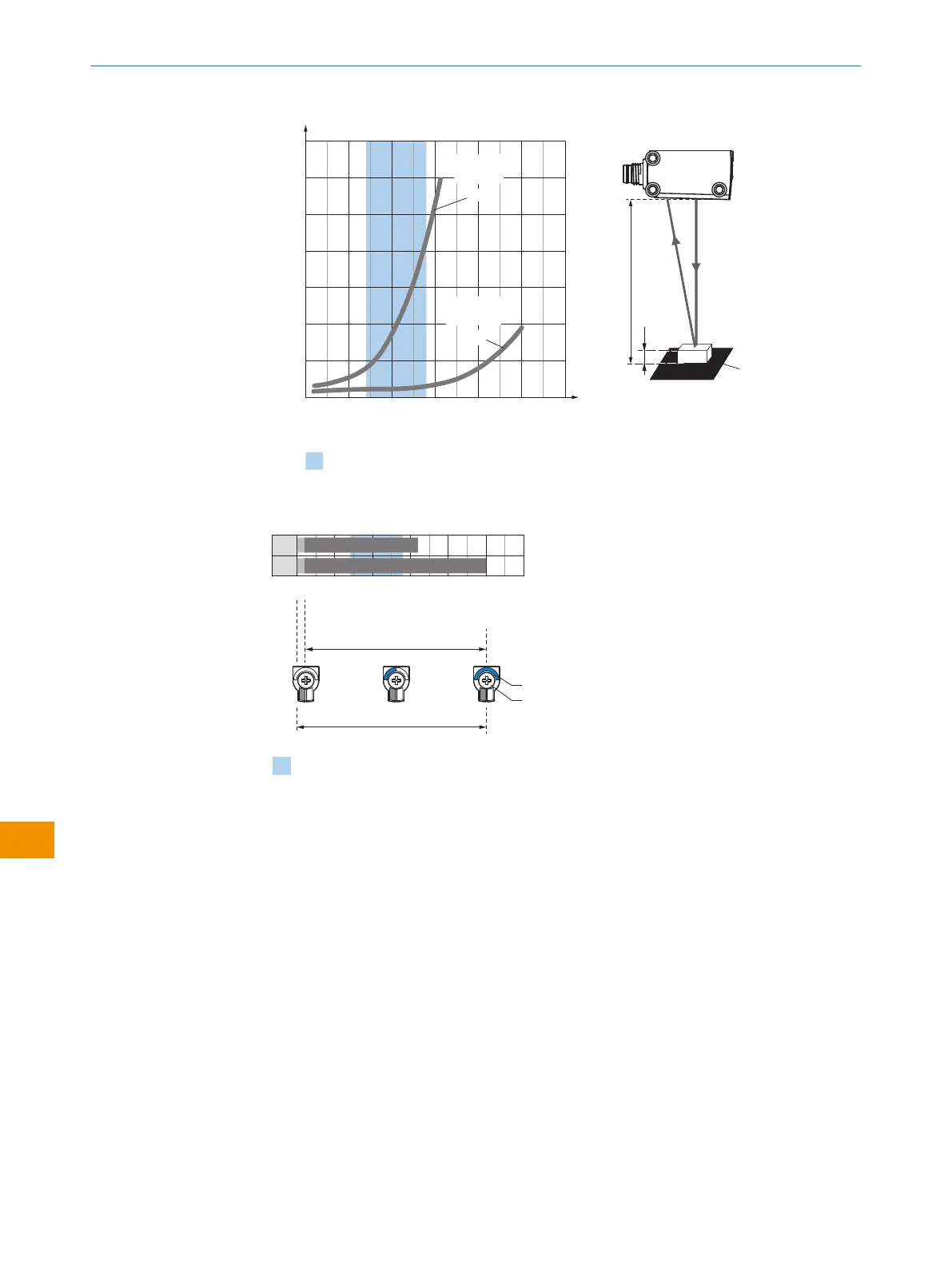

插图 11: WTM4S-xxxxx8xx, MultiMode 2
2
1
0
Distance in mm (inch)
150
(5.91)
100
(3.94)
50
(1.97)
200
(7.87)
250
(9.84)
300
(11.81)
0/10
0/10
160
250
D
C
A B
BluePilot
E
F
Recommended sensing range for
the best performance
插图 12: WTM4S-xxxxx8xx, MultiMode 2
1
黑色背景，6% 反射
2
白色背景，90% 反射
A
最小触发感应距离，单位：mm
B
最大触发感应距离，单位：mm
C
视野
D
前景抑制功能开关阈值的设置范围
E
触发感应距离显示
F
按转元件
蓝色
为实现最佳性能而建议的触发感应距离范围
6.4 设置
MultiMode
WTM4S 传感器的设置分 3 步完成：
操作指南
310
操 作 指 南 | WTM4S 8028212/2023/10/20 | SICK
如有更改，恕不另行通知
zh
