Figure 1: SICK product ID

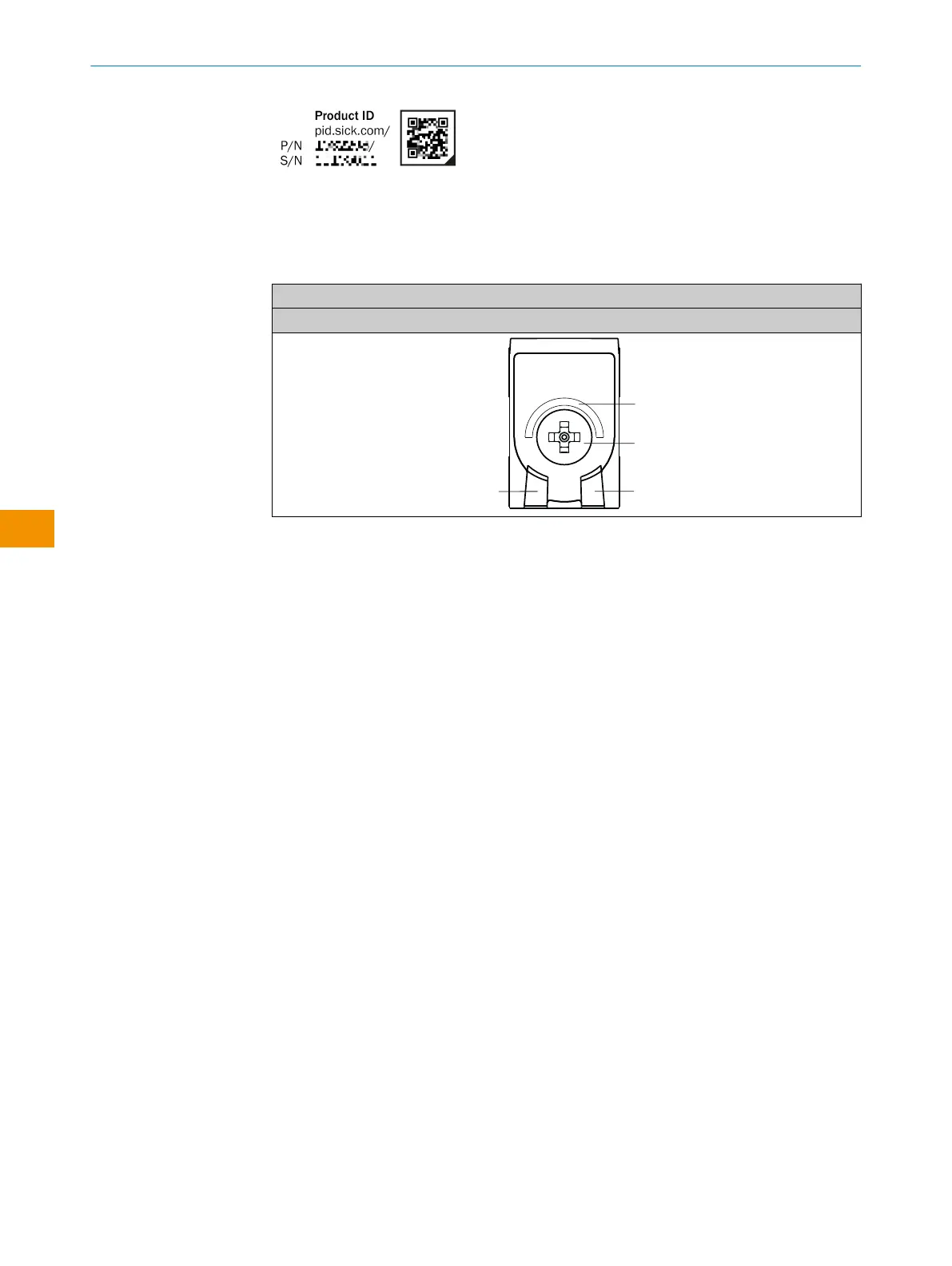

3.2 Control and display elements
Table 1: Control and display elements
WTM4Sx-xxxxxx20
Teach-Turn adjustment with mode display
3
1
2
4
1
Green LED: supply voltage active
2
Yellow LED: status of received light beam
3
Teach-Turn adjustment: Adjustment of mode and sensing range
4
BluePilot blue: mode selection
3.3 MultiMode function
The sensor with MultiMode function has various operating modes that can be set via
the Teach-Turn adjustment and IO-Link:
1 Background suppression
2 Foreground suppression
3 Two Value Teach-in
4 Two independent switching points
5 Window
6 ApplicationSelect
7 Manual/Measurement
