WORKING HEIGHT ADJUSTMENT
The machine’s working height is determined by the position of the rear roller and, in some models,
by the rear wheels.
Lifting the roller or wheels the cutters get close to the soil, whereas lowering them the cutters get
far from it. After a modification of the working height be sure that the cutters skim the ground: a
direct contact with it would cause their wear.

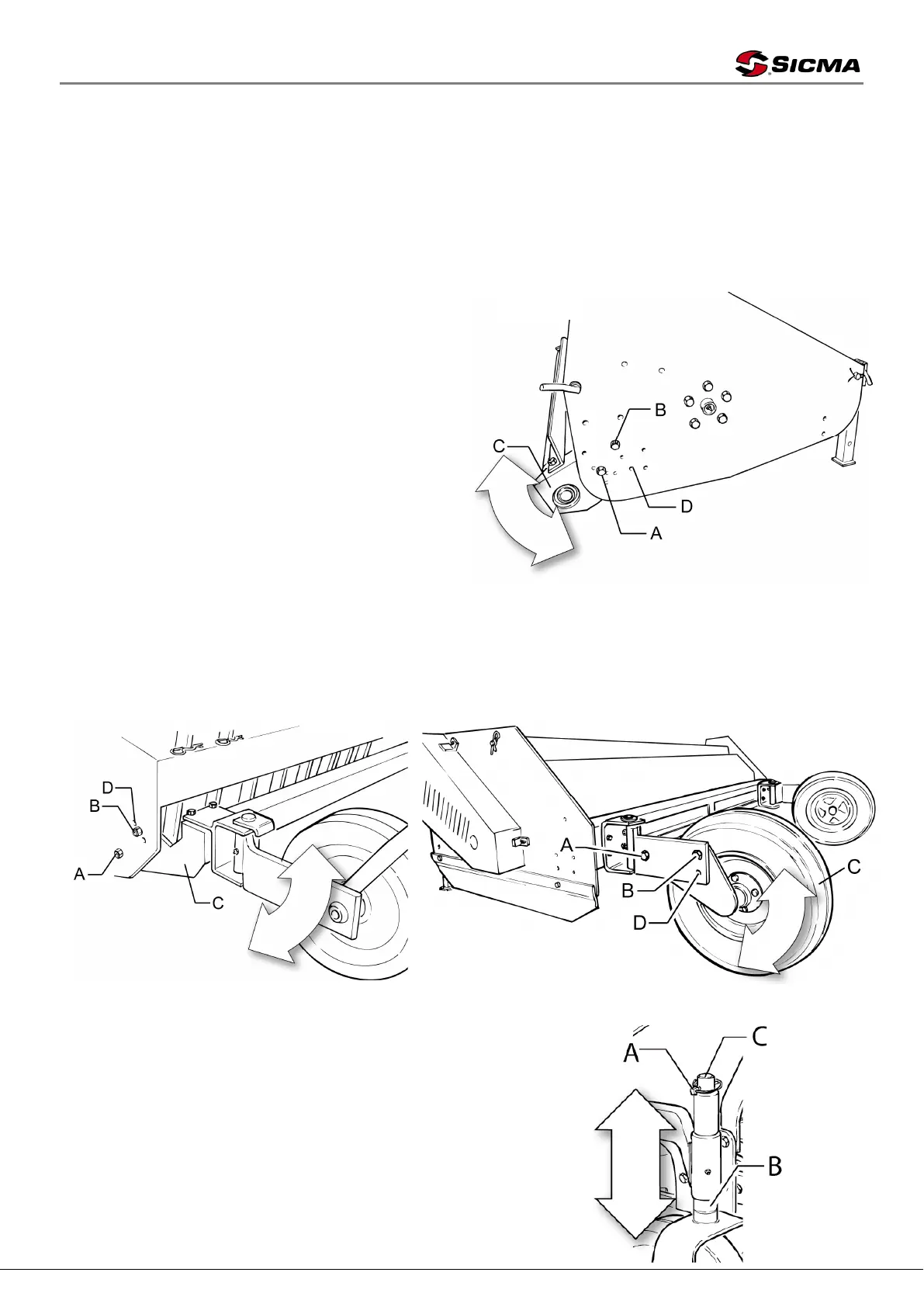

To adjust the roller height (picture 3):
- Screw out and remove screws A which
fasten the roller on both sides.
- Loosen screw B.
- Lift or lower roller C through holes D.
- Insert back and tighten screws A.
- Tighten screw B.
To adjust the wheels height on TRX, TS, TS-P
models (picture 4) and on TR, TUF, TSD models (picture 5):
- Loosen screws A on both sides;
- Screw out and remove screws B on both sides.
- Lift or lower wheels C through holes D equally on the left and right sides.
- Insert back and tighten screws B.
- Tighten screws A
To adjust the wheels height on TMX, SL, TE models (picture
6):
- extract split pin A;
- extract gudgeon C and adjust height alterning the
position of bushings B;
- after regulation insert back gudgeon C and split pin A.
3
5
Picture 4
6
