BACK COVER OPENING
In some shredder models the back cover may be opened in order to allow the operations of
maintenance and cleaning of the rotor.

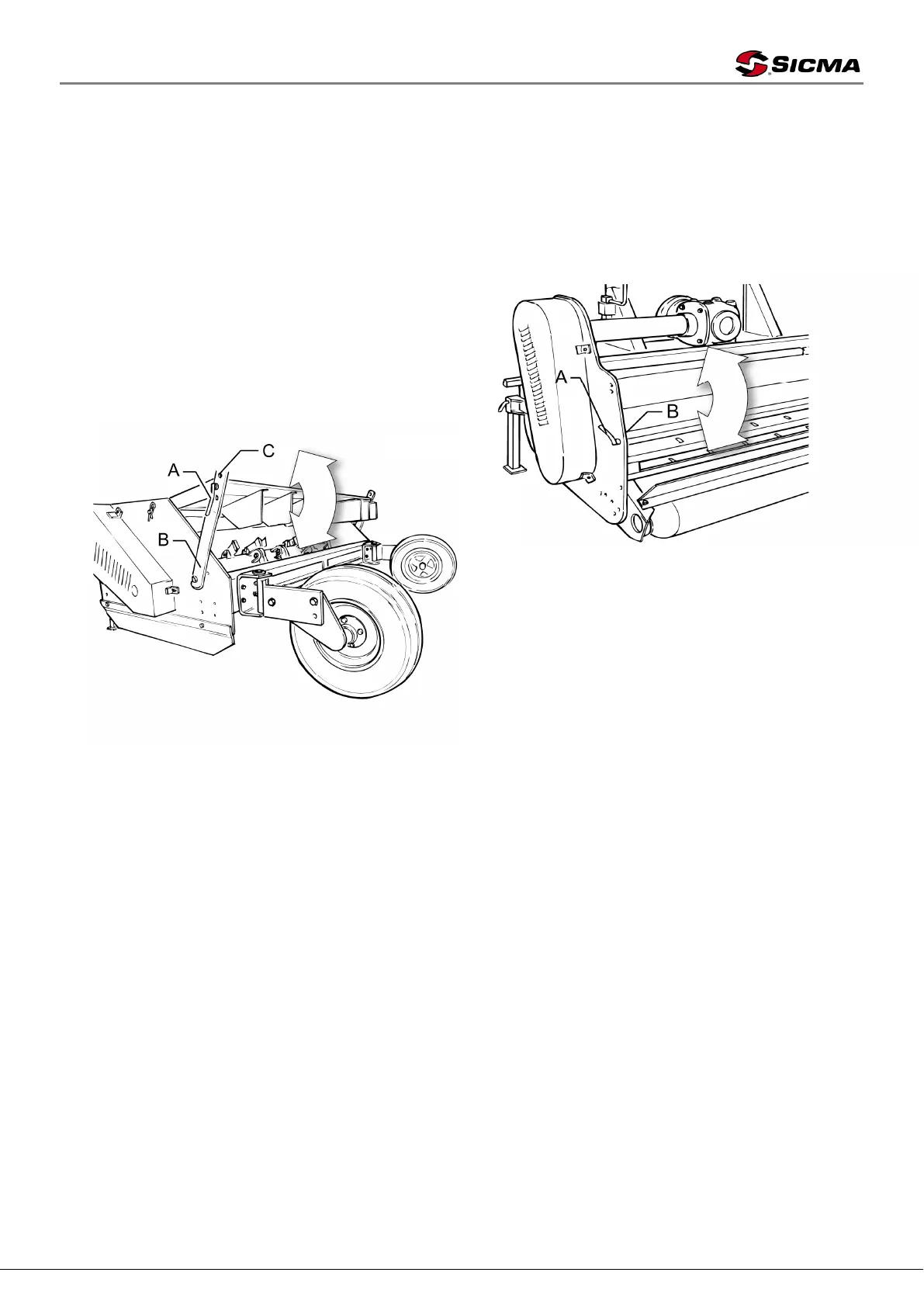

To open TMX, TRX and TUF shredders back covers
(picture 11):
- Unscrew and extract gudgeons A which lock
the cover on both sides.
- Lift the cover through holes B placed on it
up to needed opening.
- Insert back and tighten gudgeon A.
To open TR and TRP models back covers
(picture 12):
- Unscrew and extract gudgeons A on
both sides of the cover;
- Place rods B supplied together with the
machine;
- Adjust back cover opening through
holes C;
- Insert back and tighten gudgeons A
strongly.
ATTENTION: The back cover can only be opened to carry out the operations of
maintenance and cleaning of the rotor: when the shredder is working the back cover
must be closed.
SICMA Spa declines all responsibility for the onset of problems caused by a lack of
compliance with the instructions.
Picture 11
Picture 12
