AC MUM0096 rev. 07 - 20 -
MR21

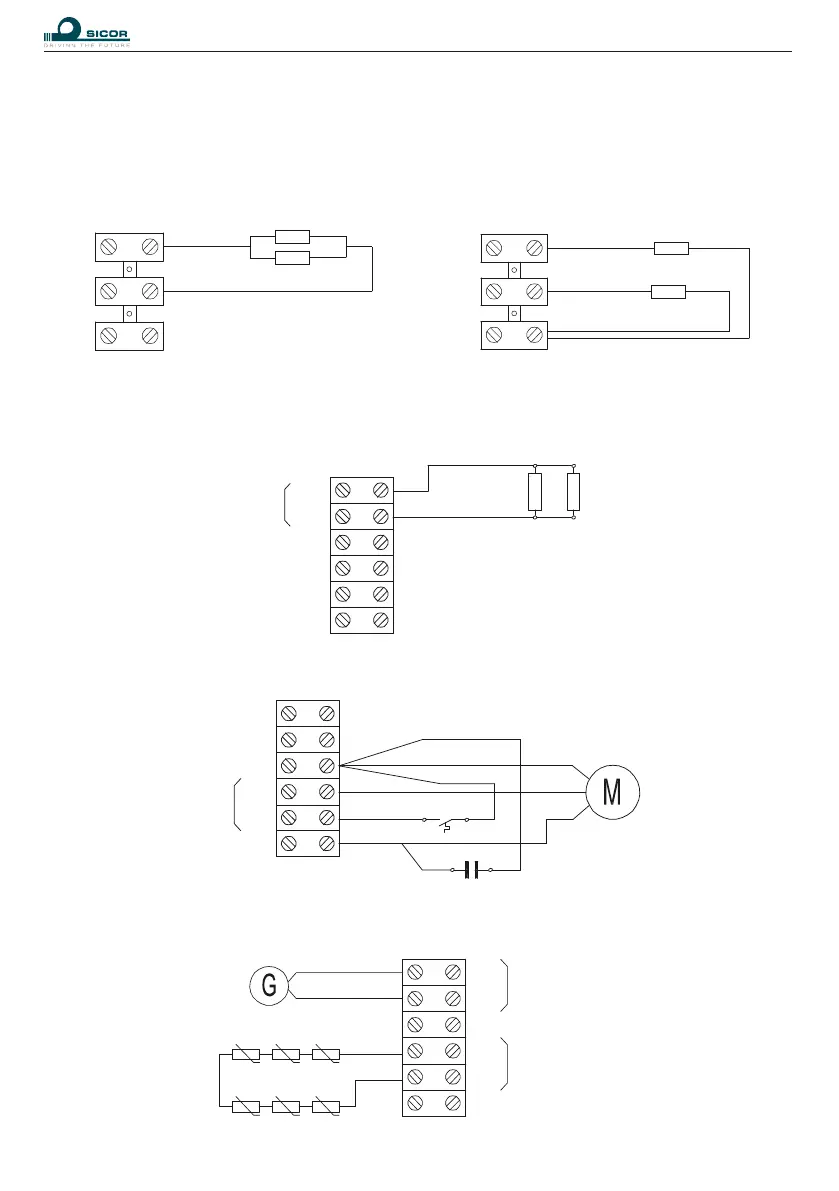

13.2. ELECTRICAL CONNECTION FOR BRAKE SOLENOIDS WITH DEGREE OF
PROTECTION IP21 AND IP54
1
2
3
-
+
Electrical connecon for tension:
24V
Electrical connecon for tension:
48V, 60V, 80V, 110V, 200V
1
2
3
-
+
13.3. ELECTRICAL CONNECTION FOR BRAKE SOLENOIDS WITH DEGREE OF
PROTECTION IP55
201
202
VDC-Brake coils
VDC-Brake
9U1
9U2
9U3
13.4. ELECTRICAL CONNECTION FOR FAN UNIT
VENTILATOR ~ Vac
(OPTIONAL)
THERMOSTAT
CAPACITOR (4µF 400V)
FAN
201
202
9U1
9U2
9U3
13.5. ELECTRICAL CONNECTION FOR TACHOMETER
TACHOMETER
THERMISTORS
SINGLE SPEED 3 THERMISTORS
DOUBLE SPEED 6 THERMISTORS
TACHOMETER
(OPTIONAL)
THERMISTOR ≤ 2,5 Vdc
632
633
634
T1
T2
