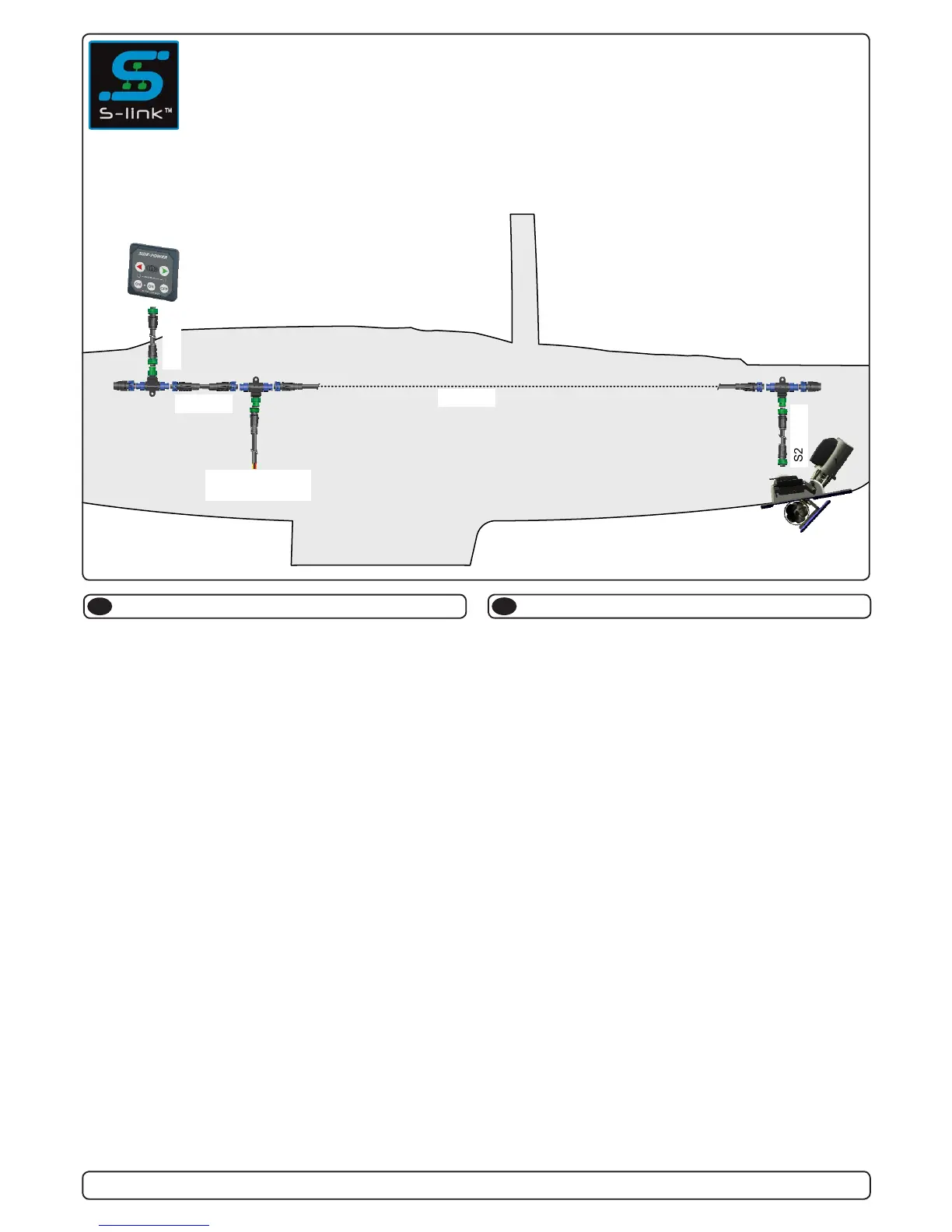

Example of the control wiring with S-link system for boats with
one control position and one retractable thruster.
S1=_____
pos & neg
and ground
BB1=___
BB2=___
S2=_____
You need:
2 x 6 1327 End terminators
3 x 6 1326 T-connectors
1 x 6 1328 Power spur
2 x 6 1320-xxM Backbone cables
2 x 6 1321-xxM Spur cables
N
GB
S-link planlegging og forbehold
S-link planning & precautions
Routing the Backbone:
Plan routing of the backbone so that lenght of spur cables will be kept at
a minimum.
Avoid routing the S-link cables close to equipment that might cause
interference to the S-link signals, such as radio transmitter equipment,
antennas, high voltage cables etc.
The backbone MUST be terminated in each end with the 6 1327 End
Terminator.
Spur cables:
Spur cables can be left unterminated (i.e. routing can be prepared for
future additional equipment), make sure to protect open connectors from
water and moisture to avoid corrosion in connector .
Ruting av Backbone:
3ODQOHJJOHJJLQJHQDY³EDFNERQH´NDEHOHQVOLNDWOHQJGHQHSn³VSXU´ND-
blene blir kortest mulig.
8QQJnnOHJJH6OLQNNDEHOHQHLQUKHWHQDYOHGQLQJHUHOOHUXWVW\UVRP
kan skape forstyrrelser for S-link signalene, slik som radiosendere, anten-
ner, høyspentkabler etc.
³%DFNERQH´NDEHOHQ0cWHUPLQHUHVLEHJJHHQGHUPHG³7HUPLQD-
WRUSOXJJ´
Spur kabler:
³6SXU´NDEOHUNDQNREOHVWLO³EDFNERQH´NDEHOHQXWHQnWHUPLQHUHVIHNV
IRUNODUJM¡ULQJDYIUHPWLGLJWLOOHJJVXWVW\UV¡UJIRUIRUnEHVN\WWHGHnSQH
NRQWDNWHQHIUDIXNWIRUnIRUKLQGUHNRUURVMRQLNRQWDNWHQ
