4 0480123A and 0480123D
This chapter describes the view and the LEDs of the retrofit CNC module 0480123A
(CNC 48.00
compact
) and 0480123D (CNC 48.00
compact
VS) with USB connector.
4.1 View

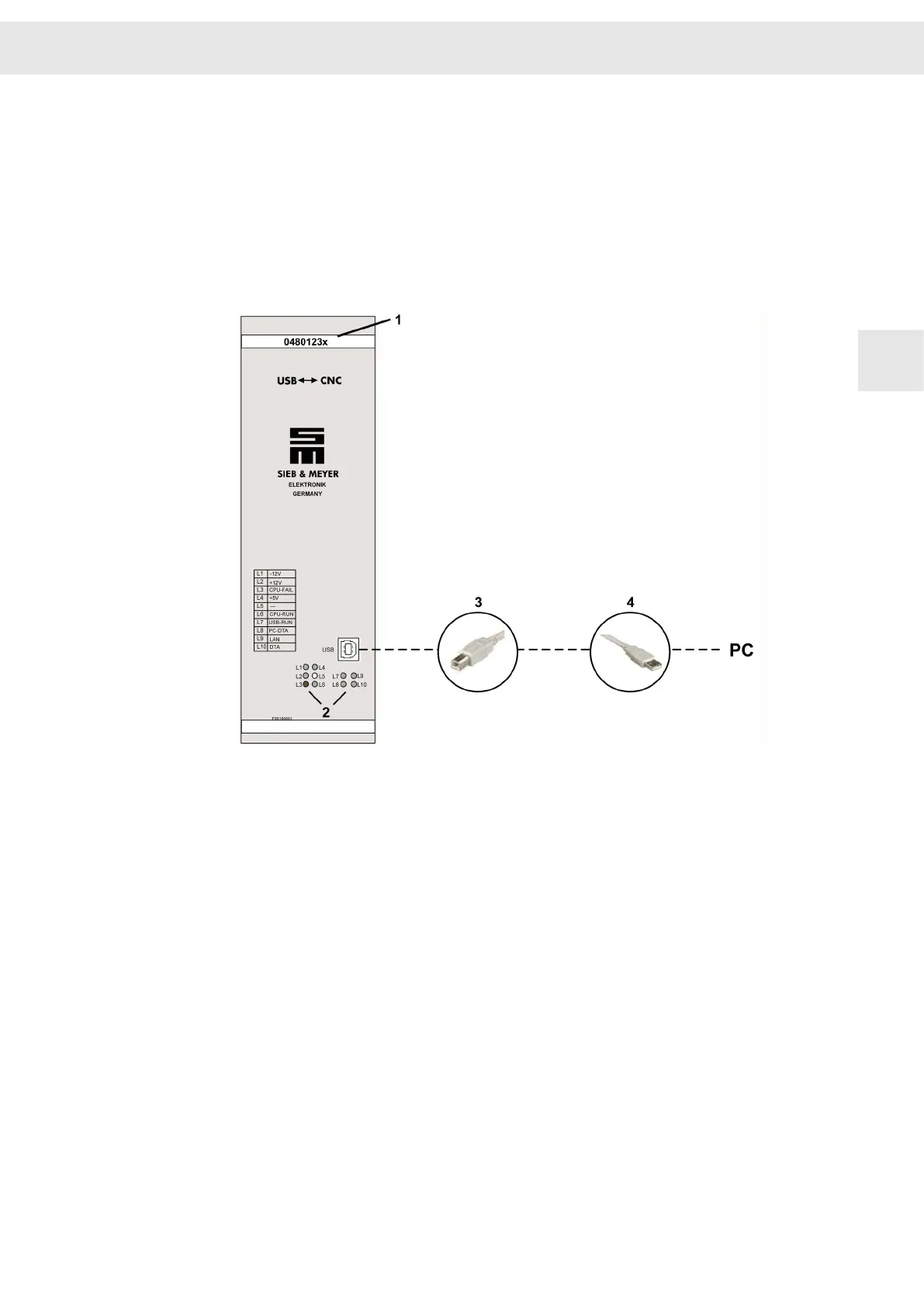

Fig. 2: Front view of the CNC modules 0480123A and 0480123D
[1] 0480123x
Number of the CNC module with USB connector
x = module variant
▶ 0480123A → CNC 48.00
compact
▶ 0480123D → CNC 48.00
compact
VS
[2] LED indications
status indications
[3] USB connection (type B, square)
Connection to the CNC
[4] USB connection (type A, rectangular)
Connection to the PC
W
0480123A and 0480123D
0460123A/0480123A/0480123D - 21
4
