5 0460123A
This chapter describes the view and the LEDs of the retrofit CNC module 0460123A
with USB connector.
5.1 View

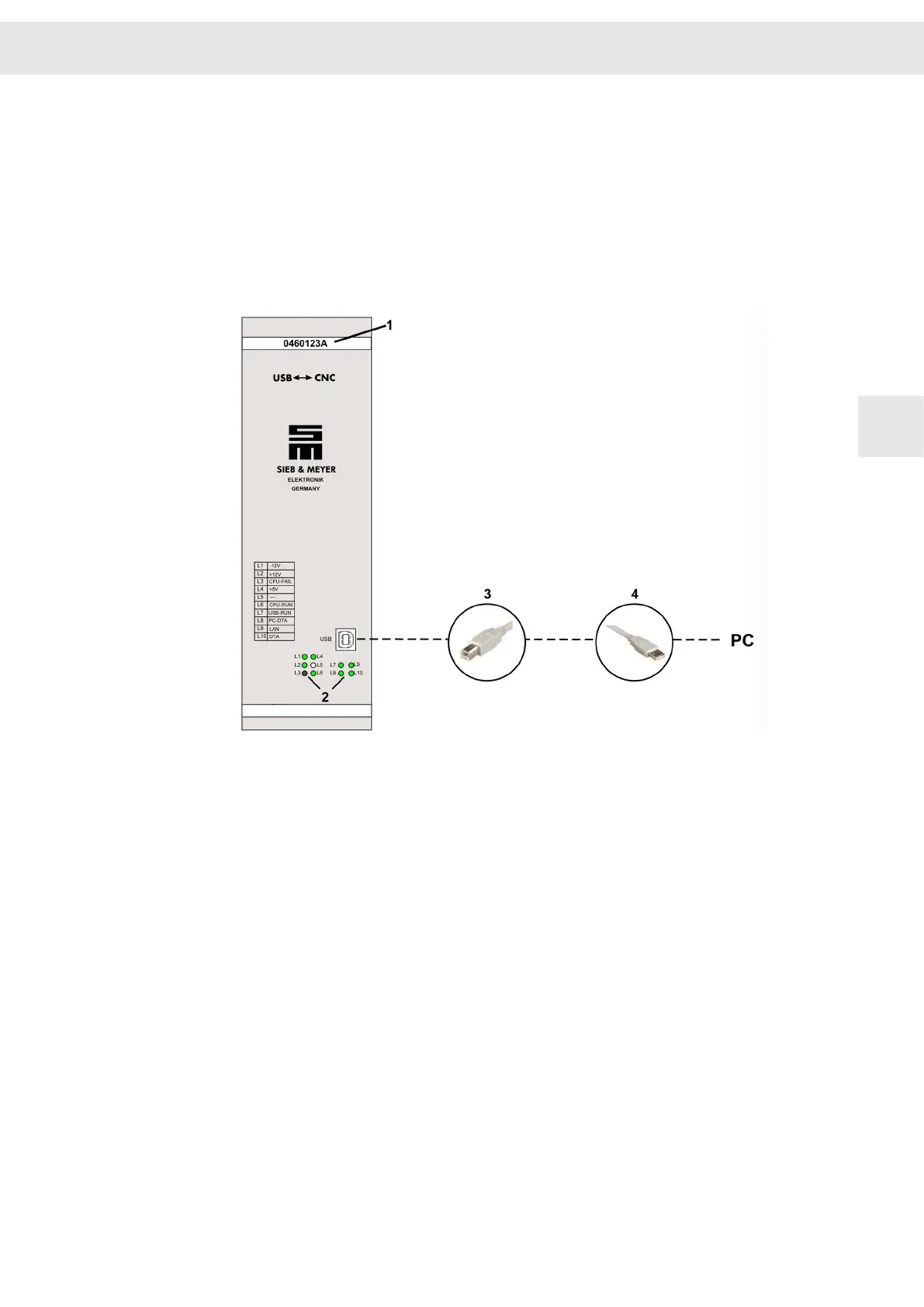

Fig. 3: Front view of the CNC module 0460123A
[1] 0460123A
Number of the CNC module with USB connector
[2] LED indications
status indications
[3] USB connection (type B, square)
Connection to the CNC
[4] USB connection (type A, rectangular)
Connection to the PC
W
0460123A
0460123A/0480123A/0480123D - 23
