2.2 Connection of the Hardware
2.2.1 Connection Example A
This connection example shows the connection of the motion controller, if delivered
with external power supply unit and network cable.
1. Connect the power cable to the external power supply unit and connect it to
mains.
2. Connect the power supply cable with X10 of the motion controller.
3. Connect the provided Ethernet cable with connector X11 of the motion controller
and with the network connection of the 2nd. network card of the PC or with the
LAN connector of the USB > Ethernet adapter.

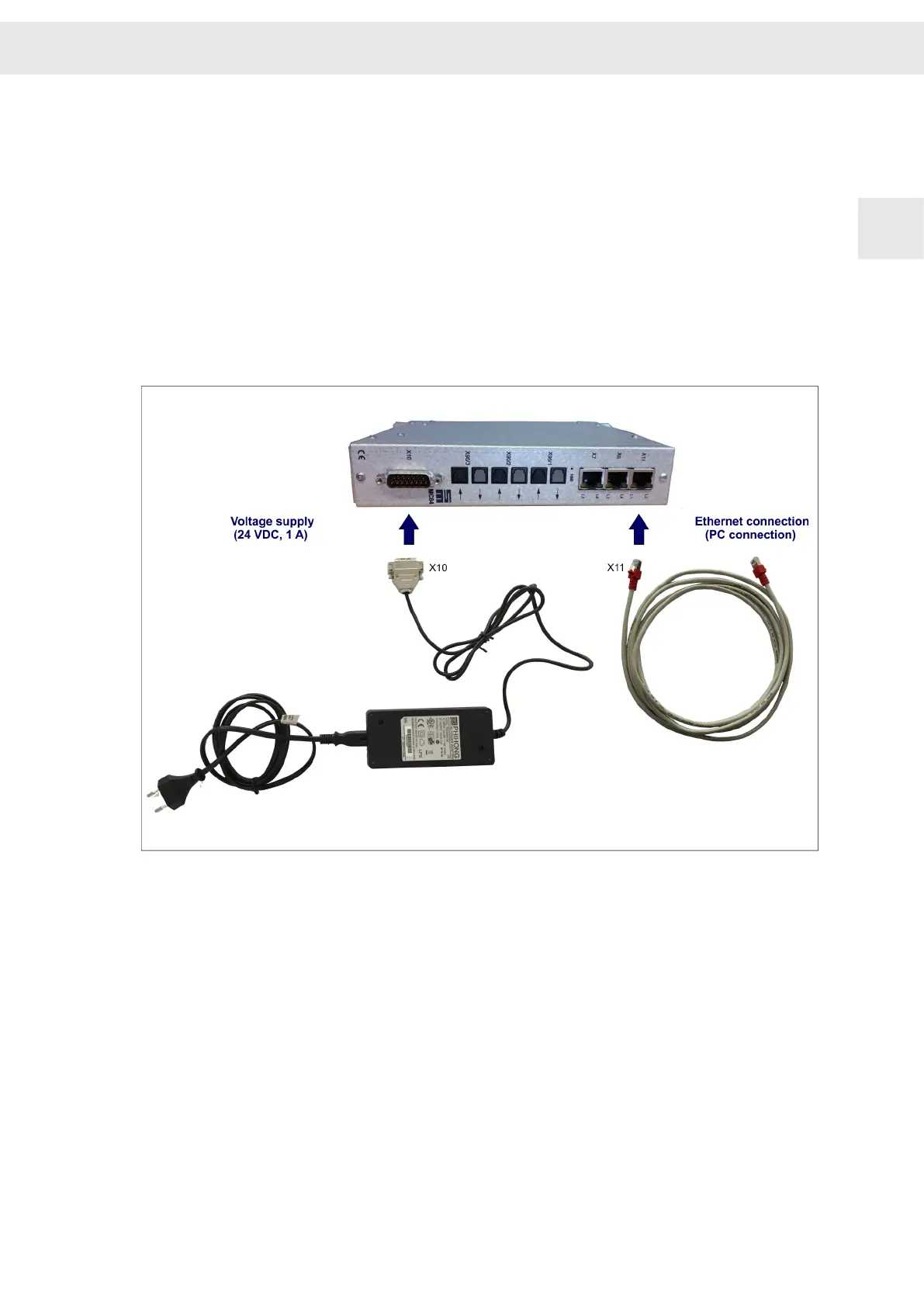

Fig. 3: Connection of the Demo Kit hardware: connection example A
