User´s Guide Power Rail Booster Version 12/2005

4.3.3 Line Topology

This configuration is distinguished by the fact that multiple contact rail segments are

cabled as one line and multiple PRBs are installed on the moving side.

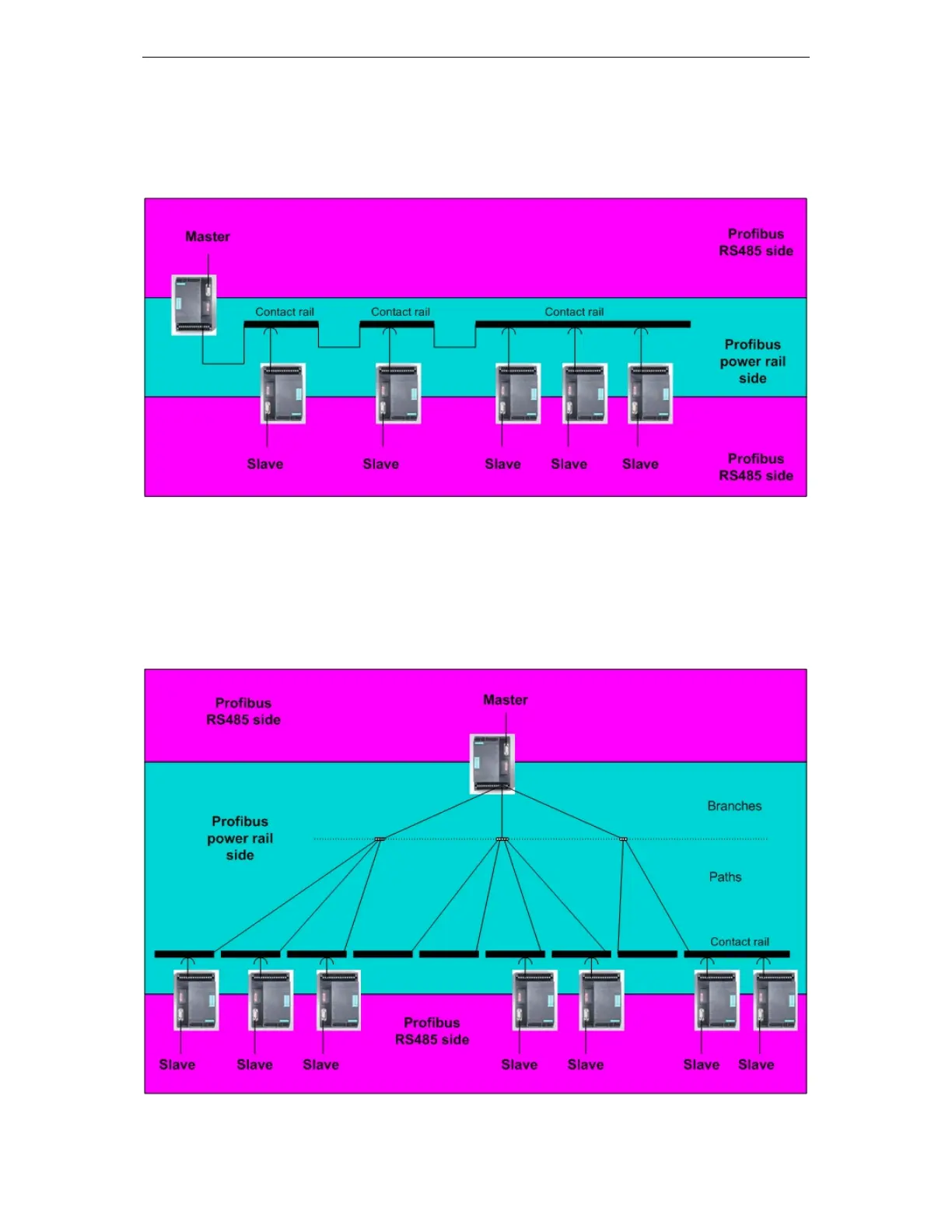

Fig. 6: Example of line topology

4.3.4 Star Topology

This configuration is distinguished by the fact that multiple contact rail segments are

cabled in a star structure and that more than one PRB is installed on the moving

side. The star structure is permissible on no more than two levels (paths and

branches.

Fig. 7: Example of star topology
