User´s Guide Power Rail Booster Version 12/2005
Copyright © Siemens AG 2005 All rights reserved. 6ES7 972-4AA02-0XA0 Page 36 of 49
7.2.3 Timing
When a message frame is transferred, the bit time for the zero bit, the data bits and
the parity bit is 50 ms. The start and stop bits have a bit time of 150 ms. The transfer
time may not deviate by more than +/- 2%. The total transfer time for one message
frame is 800 ms. There must be a pause of at least one second (minimum character
delay time) between transfers of two message frames.
7.3 Fault Scenarios in a DP Master System with PRBs
The Figure below shows possible fault locations in a DP master system with Power
Rail Boosters.

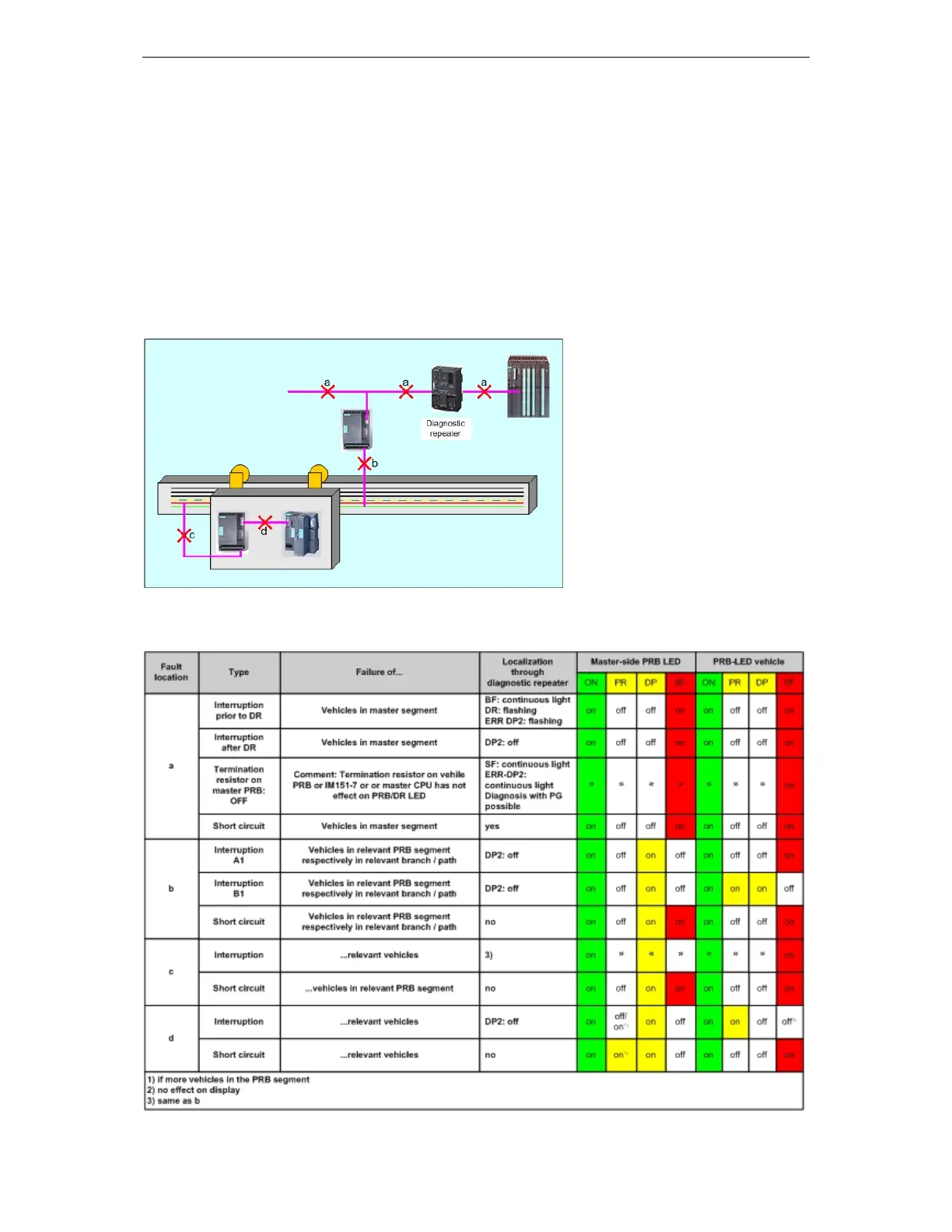

Fig. 31: Possible fault locations in a DP master system with Power Rail Boosters
Locations and displays for the various faults are listed below:
Fig. 32: Fault location
