Issue 01/06 Parameter Description

MICROMASTER 440 Parameter List

6SE6400-5BB00-0BP0

103

P0842[3] BI: ON reverse/OFF1 Min: 0:0

CStat: CT Datatype: U32 Unit: - Def: 0:0

P-Group: COMMANDS Active: first confirm QuickComm.: No Max: 4000:0

Allows ON/OFF1 reverse command source to be selected using BICO.

Normally in this case at a positive frequency setpoint, it is getting approached ccw (negative frequency

setpoint) The first three digits describe the parameter number of the command source and the last digit

denotes the bit setting for that parameter.

Index:

P0842[0] : 1st. Command data set (CDS)

P0842[1] : 2nd. Command data set (CDS)

P0842[2] : 3rd. Command data set (CDS)

Common Settings:

722.0 = Digital input 1 (requires P0701 to be set to 99, BICO)

722.1 = Digital input 2 (requires P0702 to be set to 99, BICO)

722.2 = Digital input 3 (requires P0703 to be set to 99, BICO)

722.3 = Digital input 4 (requires P0704 to be set to 99, BICO)

722.4 = Digital input 5 (requires P0705 to be set to 99, BICO)

722.5 = Digital input 6 (requires P0706 to be set to 99, BICO)

722.6 = Digital input 7 (via analog input 1, requires P0707 to be set to 99)

722.7 = Digital input 8 (via analog input 2, requires P0708 to be set to 99)

19.0 = ON/OFF1 via BOP

Details:

See parameter P0840.

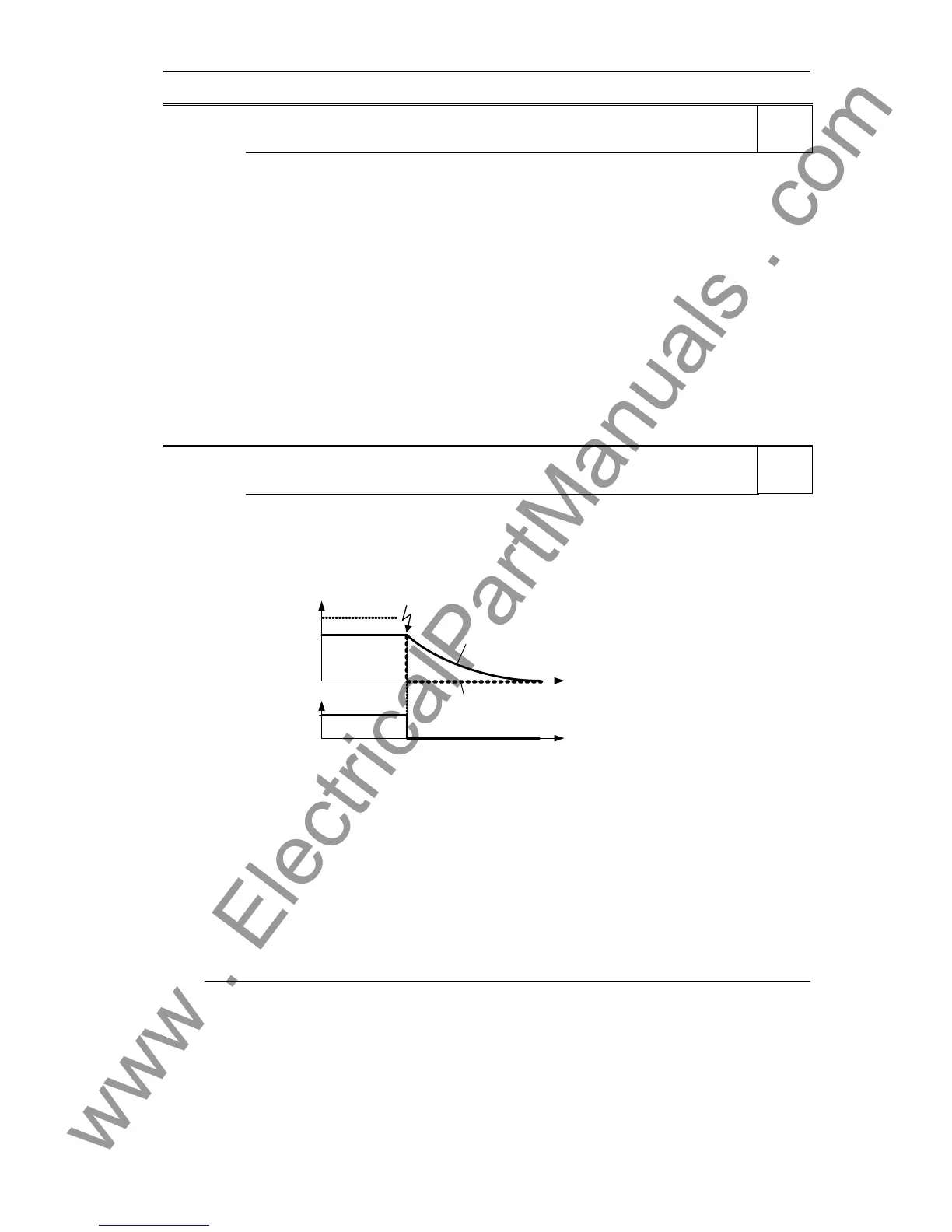

P0844[3] BI: 1. OFF2 Min: 0:0

CStat: CT Datatype: U32 Unit: - Def: 1:0

P-Group: COMMANDS Active: first confirm QuickComm.: No Max: 4000:0

Defines first source of OFF2.

The first three digits describe the parameter number of the command source and the last digit denotes the

bit setting for that parameter. If one of the digital inputs is selected for OFF2, the inverter will not run unless

the digital input is active.

act

P1082

max

r0052 Bit02

Operation

OFF2

Pulse

cancellation

act ,motor

act ,inverter

Index:

P0844[0] : 1st. Command data set (CDS)

P0844[1] : 2nd. Command data set (CDS)

P0844[2] : 3rd. Command data set (CDS)
