Issue 01/06 Parameter Description
MICROMASTER 440 Parameter List
6SE6400-5BB00-0BP0
247
P2834[4] BI: D-FF 1 Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 0:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0

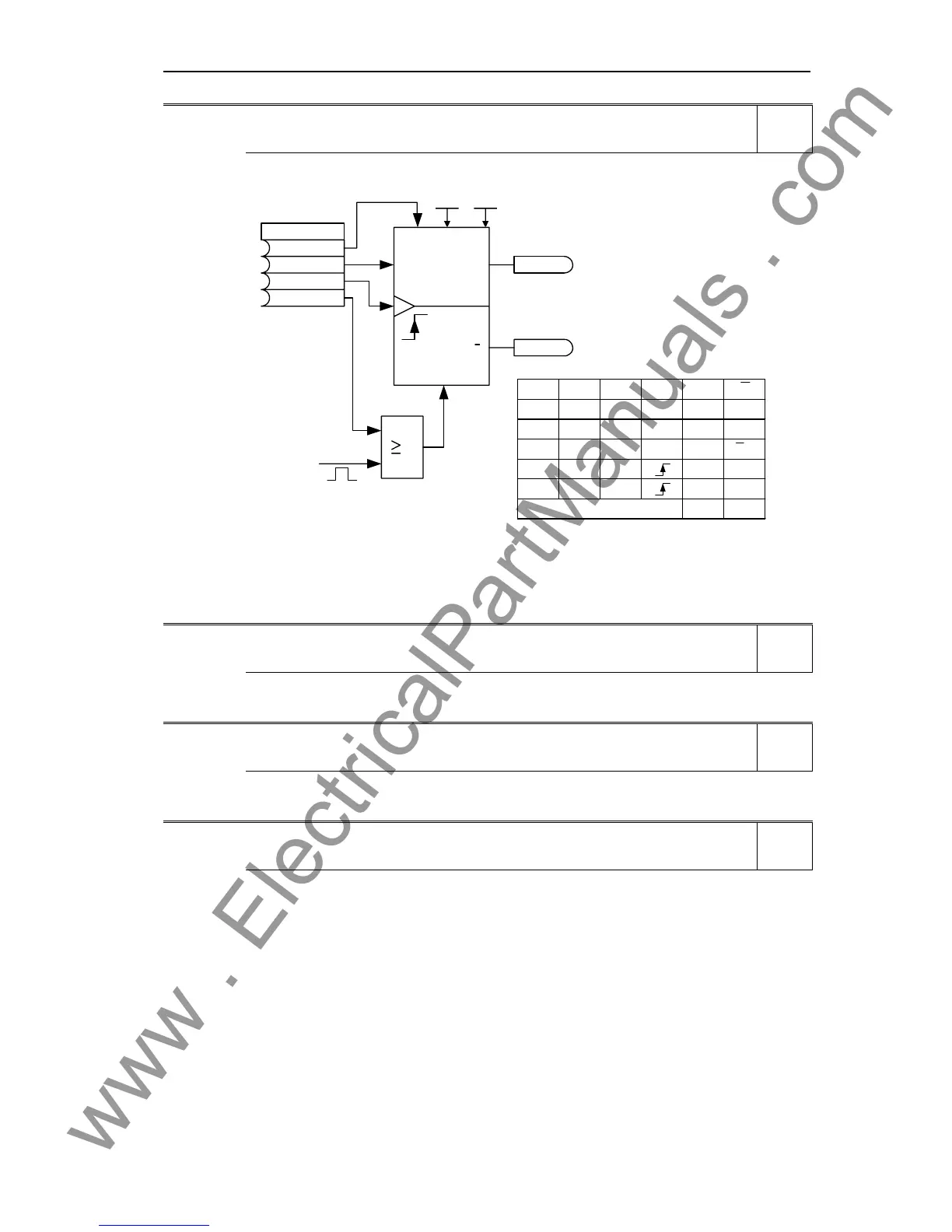

P2834[0], P2834[1], P2834[2], P2834[3] define inputs of D-FlipFlop 1, outputs are P2835, P2836.
1
P2834
SET (Q=1)
RESET (Q=0)
D
STOR
E
POWER ON
r2835
r2836
Q
Q
SET RESET D STORE Q Q
10xx10
01xx01
11xxQ
n-1
Q
n-1
001 10
000 01
POWER-ON 0 1
P28 00 P2801[12]
Index0
Index1
Index2
Index3
Index:
P2834[0] : Binector input: Set
P2834[1] : Binector input: D input
P2834[2] : Binector input: Store pulse
P2834[3] : Binector input: Reset
Dependency:
P2801[12] is active level for the D-FlipFlop.
r2835 BO: Q D-FF 1 Min: -
Datatype: U16 Unit: - Def: -
P-Group: TECH Max: -
Displays output of D-FlipFlop 1, inputs are defined in P2834[0], P2834[1], P2834[2], P2834[3]
Dependency:
P2801[12] is active level for the D-FlipFlop.
r2836 BO: NOT-Q D-FF 1 Min: -
Datatype: U16 Unit: - Def: -
P-Group: TECH Max: -
Displays Not-output of D-FlipFlop 1, inputs are defined in P2834[0], P2834[1], P2834[2], P2834[3]
Dependency:
P2801[12] is active level for the D-FlipFlop.
P2837[4] BI: D-FF 2 Min: 0:0
CStat: CUT Datatype: U32 Unit: - Def: 0:0
P-Group: TECH Active: first confirm QuickComm.: No Max: 4000:0
P2837[0], P2837[1], P2837[2], P2837[3] define inputs of D-FlipFlop 2, outputs are P2838, 2839.
Index:
P2837[0] : Binector input: Set
P2837[1] : Binector input: D input
P2837[2] : Binector input: Store pulse
P2837[3] : Binector input: Reset
Dependency:
P2801[13] is active level for the D-FlipFlop.
Level
3
Level
3
Level
3
Level
3
