Parameter Description Issue 01/06
MICROMASTER 440 Parameter List
144 6SE6400-5BB00-0BP0
P1232[3] DC braking current Min: 0
CStat: CUT Datatype: U16 Unit: % Def: 100
P-Group: FUNC Active: Immediately QuickComm.: No Max: 250
Defines level of DC current in [%] relative to rated motor current (P0305).
% 100
P1232
P0305
2
1
[A]
r0027
BrakeDC
⋅⋅≈
−
The current of the DC-braking is limited by r0067.
Index:
P1232[0] : 1st. Drive data set (DDS)
P1232[1] : 2nd. Drive data set (DDS)
P1232[2] : 3rd. Drive data set (DDS)
P1233[3] Duration of DC braking Min: 0.00
CStat: CUT Datatype: Float Unit: s Def: 0.00
P-Group: FUNC Active: Immediately QuickComm.: No Max: 250.00

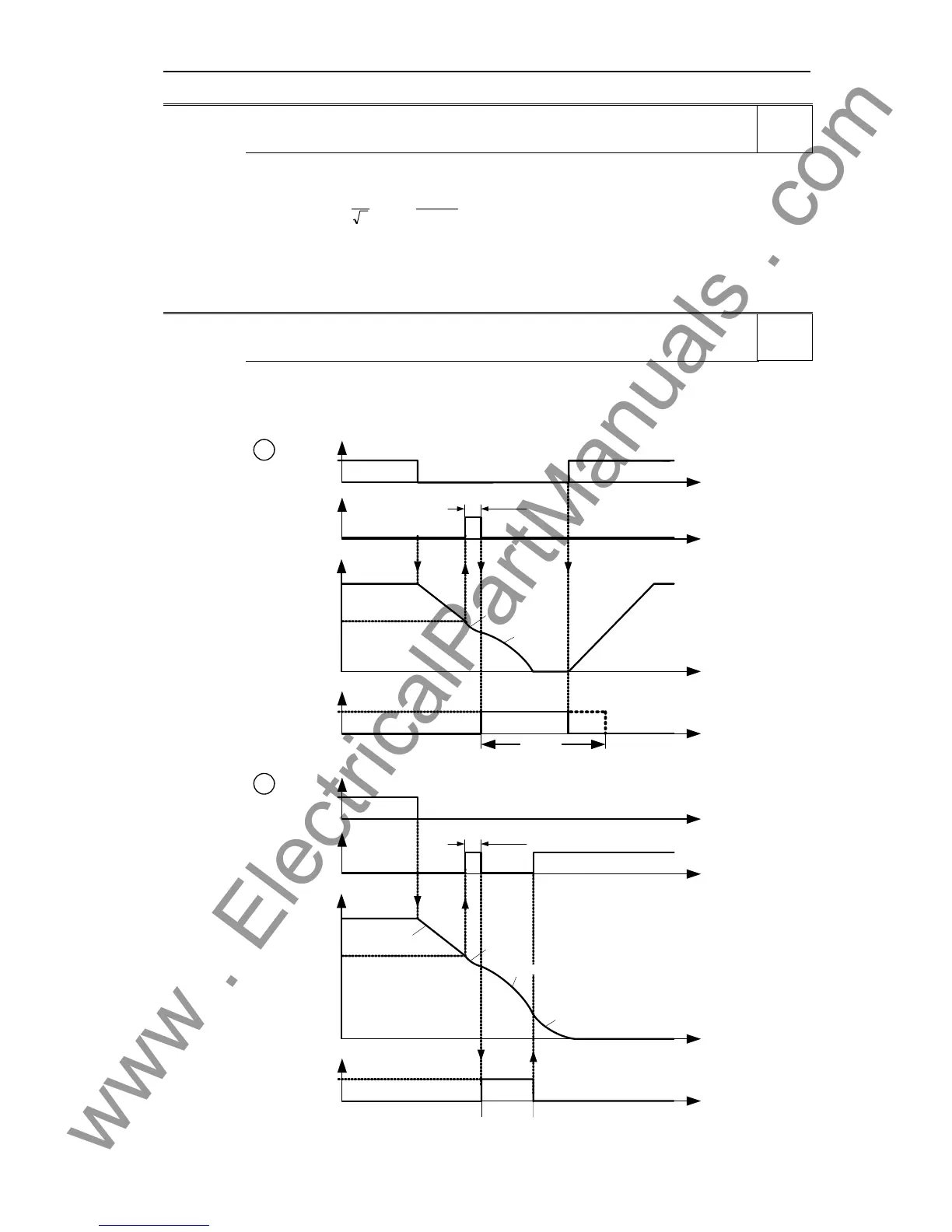

Defines duration for which DC injection braking is to be active following an OFF1 or OFF3 command. When
an OFF1 or OFF3 command is received by the drive, the output frequency starts to ramp to 0 Hz. When the
output frequency reaches the value set in P1234, the drive injects a DC braking current P1232 for the time
duration set in P1233.
t
P1234
OFF1/OFF3
ON
t
t

f

P1233
1
tt
P0347
OFF2
DC braking
OFF2
0
1
DC braking active
r0053
Bit00
t
P1234
OFF1/OFF3
ON
t
t

f

OFF ramp
P1233
2
t
OFF2
t
t
P0347
OFF2
OFF2
DC braking
0
1
DC braking active
r0053
Bit00
The DC current, that is impressed during time P1233, is specified by parameter P1232.
Level
2
Level
2
