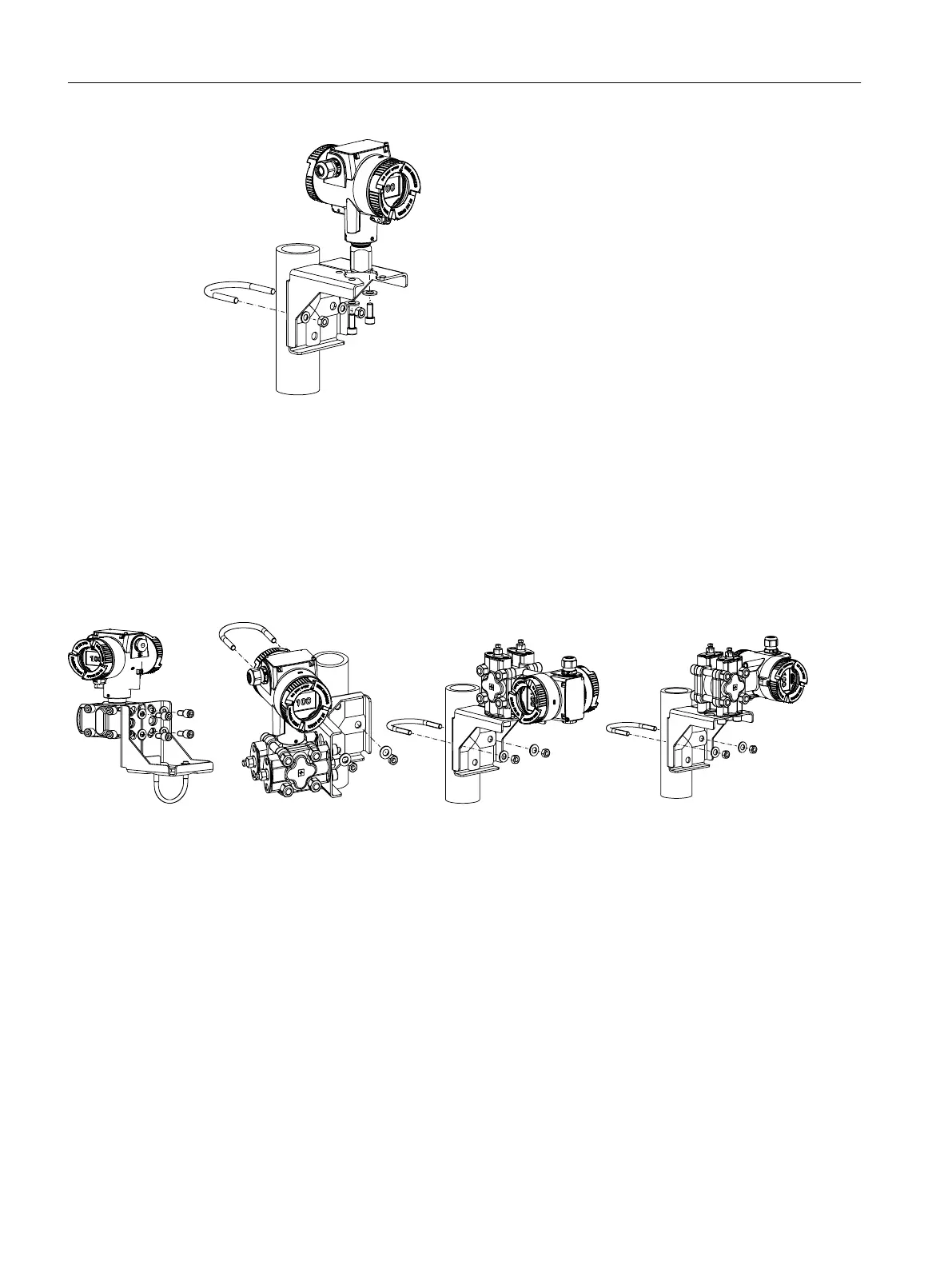

Example 2: Pipe mounting of pressure transmitter (differential pressure series)
The mounting bracket for the differential pressure series includes, among other things:
● 4 screws
● One pipe clamp with nuts
● Washers
You can then mount the pressure transmitter in different positions:
4.3 Installation (level)
Mounting location
Verify that the mounting location meets the following conditions:
● Accessible
● Close to the measuring point
● Vibration-free
● Within the permitted ambient temperature values
Installing/mounting
4.3 Installation (level)
SITRANS P320/P420 with 4 to 20 mA/HART
28 Compact Operating Instructions, 09/2018, A5E38874562-AB
