Siemens 7SG11 Argus - Case Dimensions

Siemens Protection Devices Limited 8
7SG11 series relays are supplied in either in E4, E6 or E8 cases.
Dimensions
A B C
E4 Case 103 99.5 52
E6 Case 155 151 103.5
E8 Case 203 203 155.5

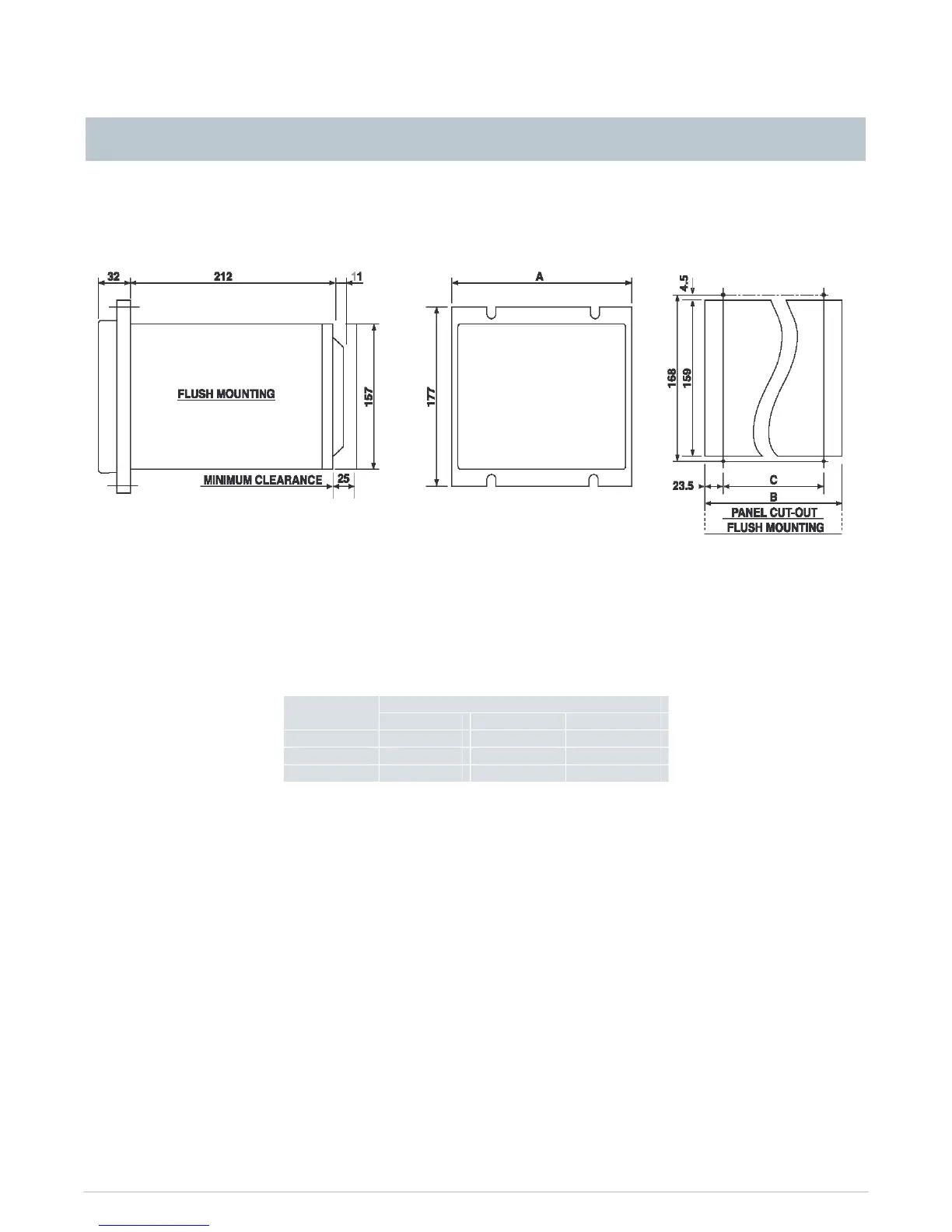

Fig 2. Overall dimensions and panel drilling details (All dimensions are in mm)
Case Dimensions
