English 7XR6004
10 C53000-B119U-C137-1

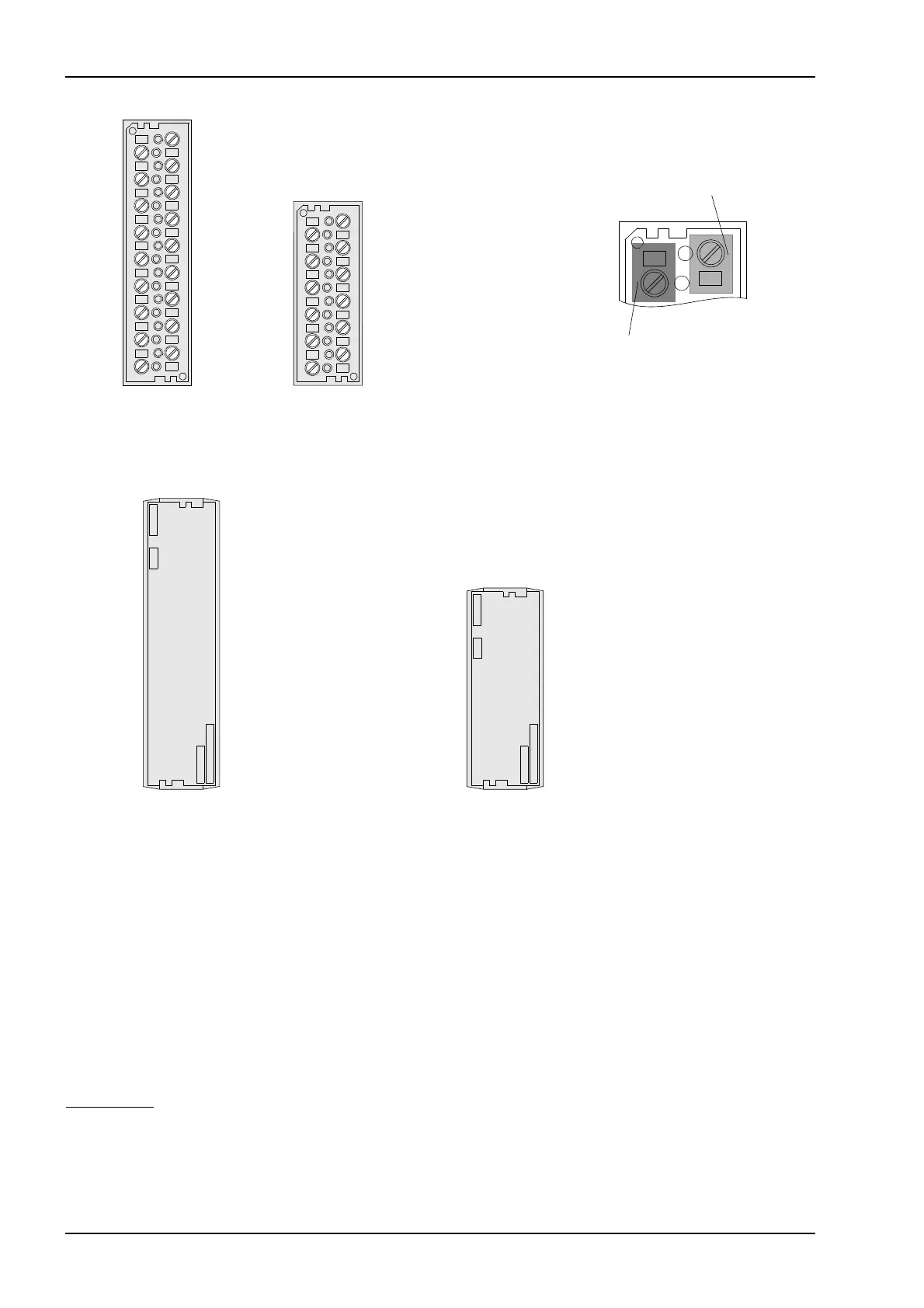

Figure 3 Connection modules for screw-type terminals
Figure 4 Accessories for screw-type terminals
Ring-type or fork-type cable lugs can be used. The cable lugs must be insulated in order to
achieve sufficient insulating clearance. Alternatively, the bare zone must be provided with
other insulation means, e.g. shrinking tubes.
The following data must be met:
Cable lugs for bolt diameter 4 mm;
max. major diameter 10 mm;
for cross-section 1.0 mm
2
to 2.6 mm
2
; AWG 16 to AWG 14.
Use copper conductors only!
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
3
4
5
6
7
8
9
10
11
12
Voltages 18-pole Voltages 12-pole
1
2
Terminal 1
Terminal 2
Designation scheme
of the screwed terminals
Cover cap for
18-pole voltage
connector
Covering cap for
12-pole voltage and
8-pole current connector
SIEMENS
C73334-A1-C31-1
>PCGF<
:AMP
SIEMENS
C73334-A1-C32-1
>PCGF<
:AMP
