Jumper and Fuses on the Printed Circuit Boards
Power supply module C53207-A332-B12- of 7XT3300-0*A00/DD

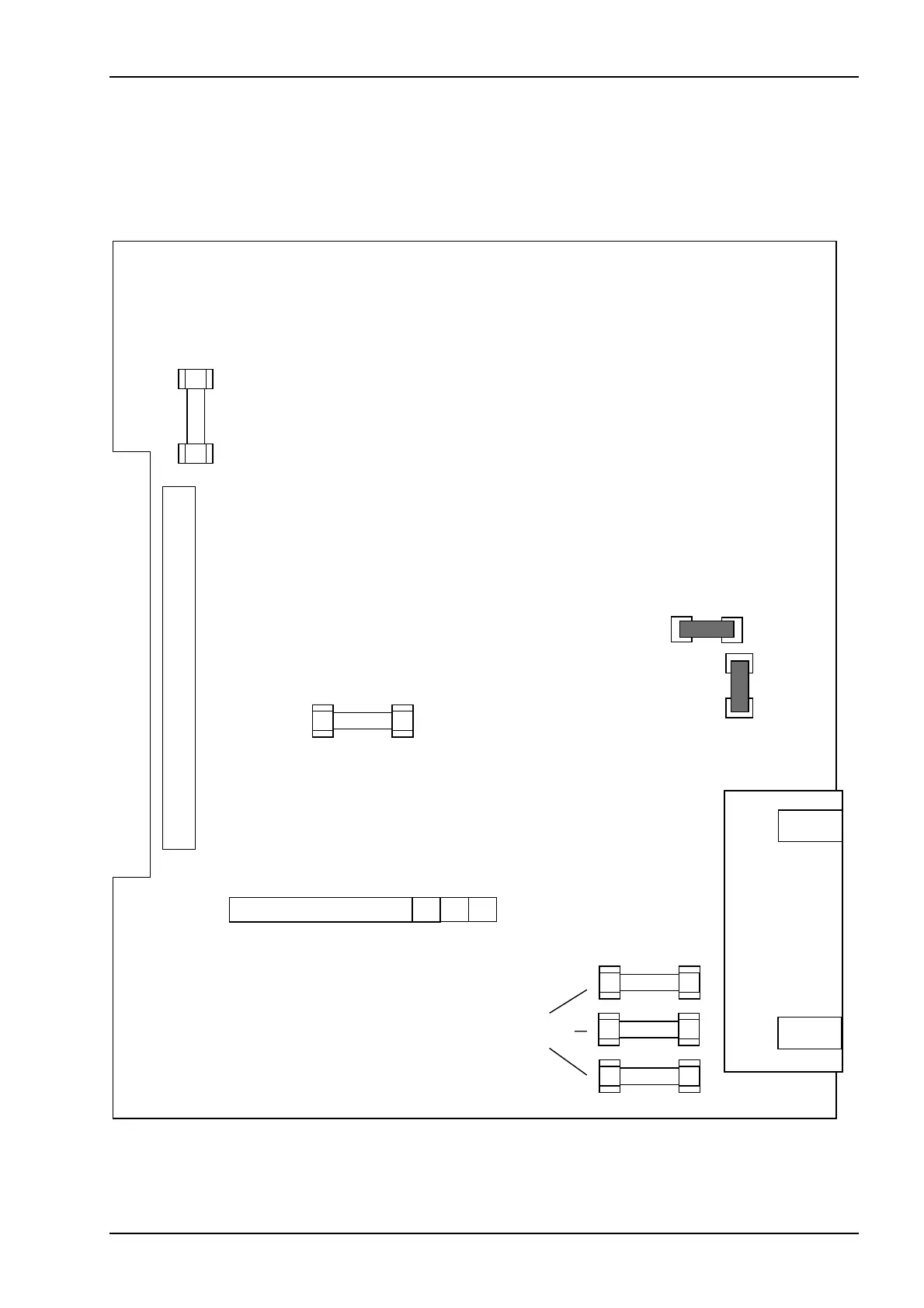

Figure 3 Power supply module with location of the fuses
F301
F102
F101
F103
F602
F601
F401
4AT *)
5A
5A
4AT *)
4AT *)
Fusible cut-out insert 4AT, type 5 x 20 mm
a) Schurter 0001.2510
b) Siba 179200 4A
c) SOC SHV12 4A
Fusible cut-out insert 5AT
a) Schurter OMK 125 3404.2317.11
b) Littelfuse Series 154 154.005
Note: Replace the fuse only by the original type
because the holders are designed for this type
only.
*)
NZT
C53207-A332-B12-
The fusible link inserts must be replaced only by
the types mentioned. If other types are used, the
parameters and properties given for the device
no longer apply .
