Siemens 7XT3300-0 A00 Series User Manual

7XT3300-0*A00 English
C53000-B1175-C129-1 37
Dimensions
7XT33 Housing for Surface Mounting Version

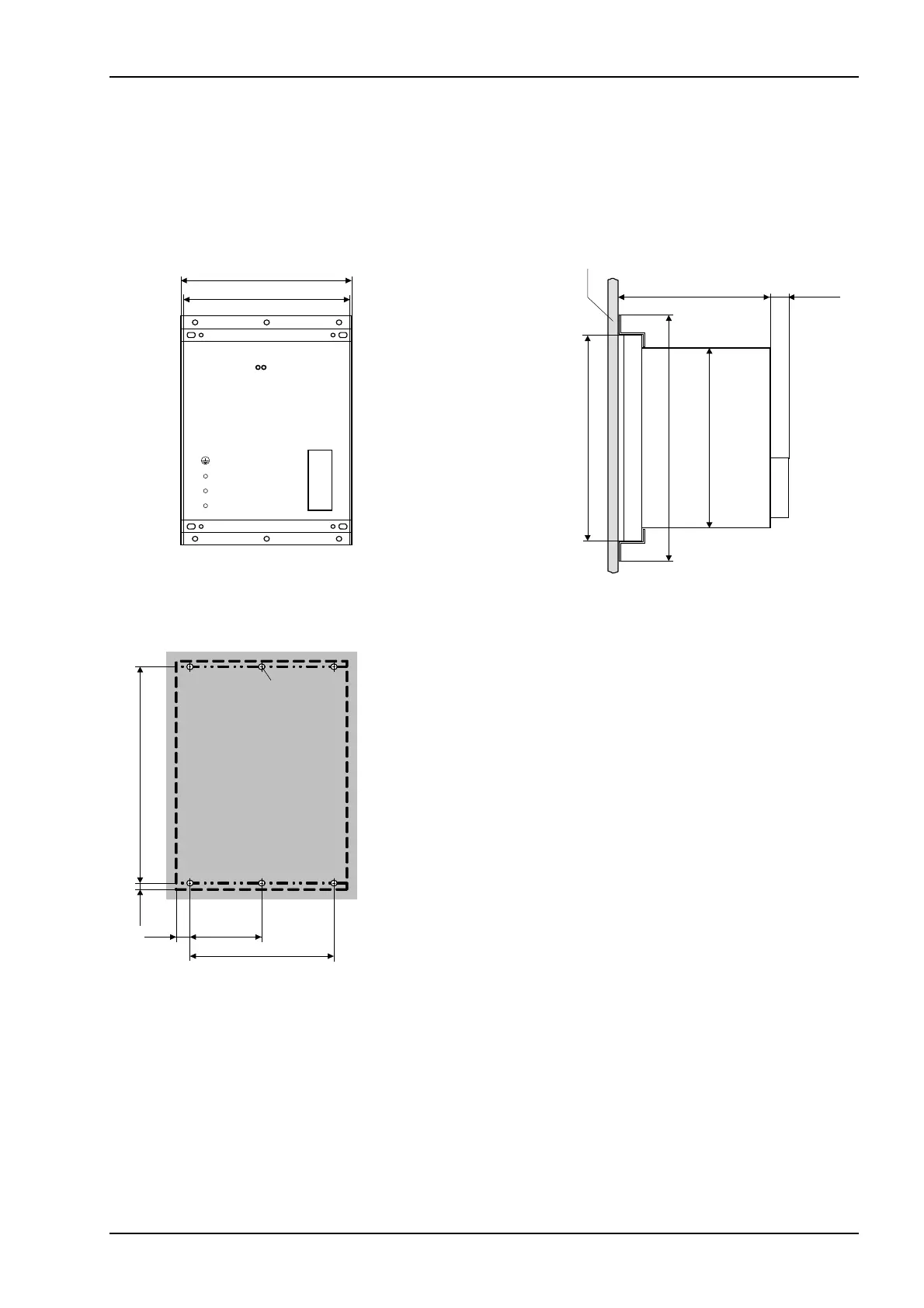

Figure 5 Dimensions of 7XT33 surface mounting version
209.5 (8.23) 34 (1.34)
266 (10 .47 )
24 4 ( 9.60 )
Side View
Mounting Holes of
Mounting Plate
Rear View
200 ± 0 .3 (7 .87 ± 0.01 )
12 .5
(0.49)
6.4
(0.25)
300 ± 0.3 (11.81 ± 0.01)
225 (8 .86 )
220 (8 .66 )
100 ± 0 .3
(3.93 ± 0.01 )
3 12 .8 (1 2.2 8)
Ø4 .5 (0.16) or M 5
RUN BLOCKED
Mounting Plate
Dimensions in mm
Values in Brackets in Inches
