7XV5461-0Bx00 English
C53000-B1174-C173-5 47
Function

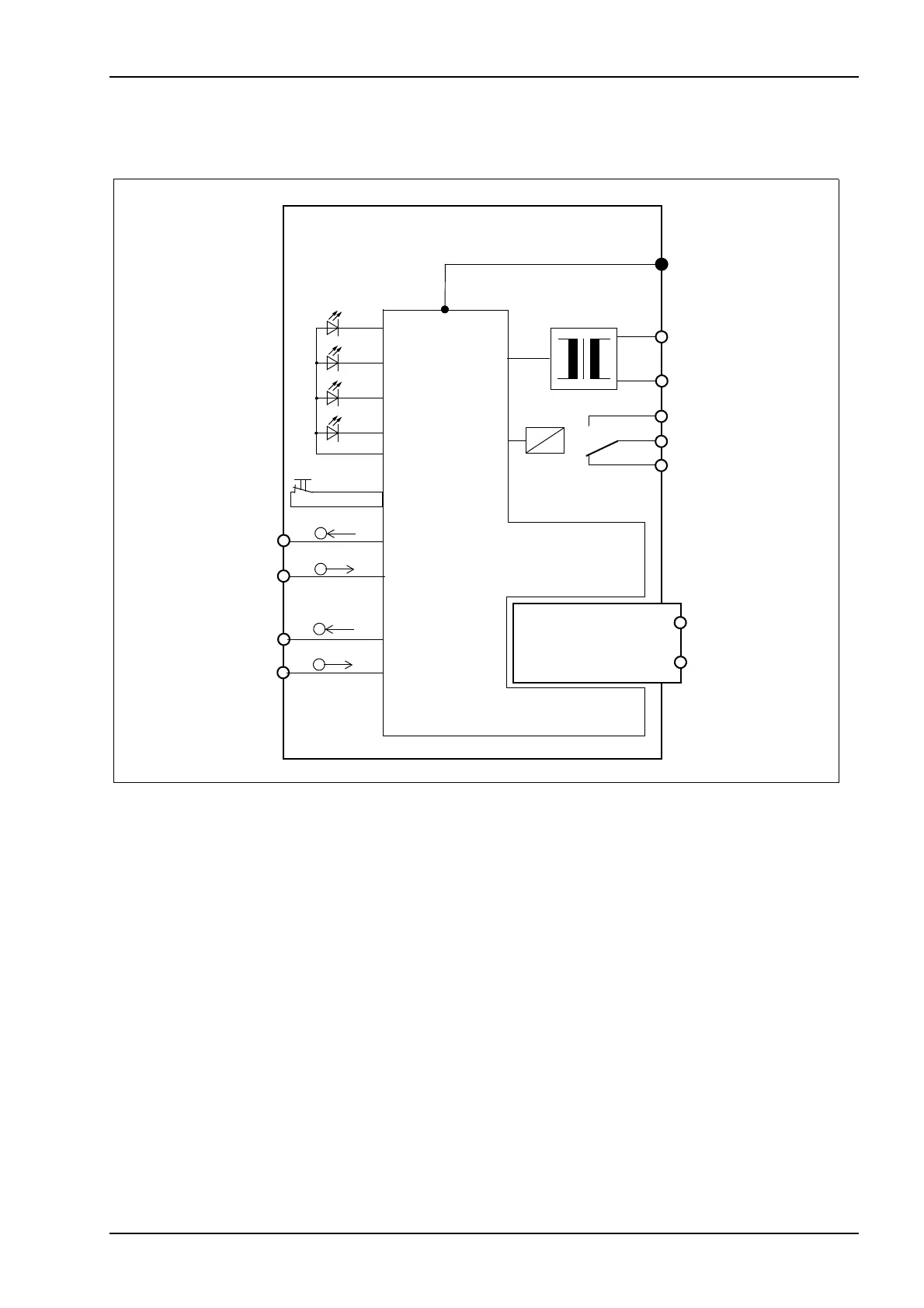

Figure 4 Hardware structure of the FO-Repeater (only one interface is available at port 3 of
bidirectional FO-Repeaters)
The FO-Repeater multiplexes data received on port 1 and port 2 to port 3. The data is
transmitted completely bit-transparent, i.e. direct forwarding of the information without itself
adding or filtering out information. The data received on port 3 is de-multiplexed in the device
and output to port 1 or port 2. Figure 1 shows a typical design with two 7XV5653 binary signal
transducers.
A remote connection can be established using the FO-Repeater and a protection data
interface module (FO17, FO18 or FO19, see page 49) corresponding to the desired range
used in the SIPROTEC 4 protection device (7SD610, 7SD52, 7SD53, 7SA52, 7SA6).
However, in this configuration port 2 of the FO-Repeater may not be used.
Note: The order options of the bidirectional FO-Repeaters cannot be connected
with the protection interface modules in the protection device.
GND
Grounding screw
UH
GOK (DR)
1
2
3
+
_
Reset/Echo Mode
Port 1 Data
Port 2 Data
Power On
Error
Tx
Rx
Tx
Tx
Rx
Rx
Port 3
Port 1
Port 2
Internal Logic
To Next Page
