Siemens 7XV5655-0BA00 User Manual

English 7XV5655-0BA00
42 / 53 C53000-G1176-C174-3

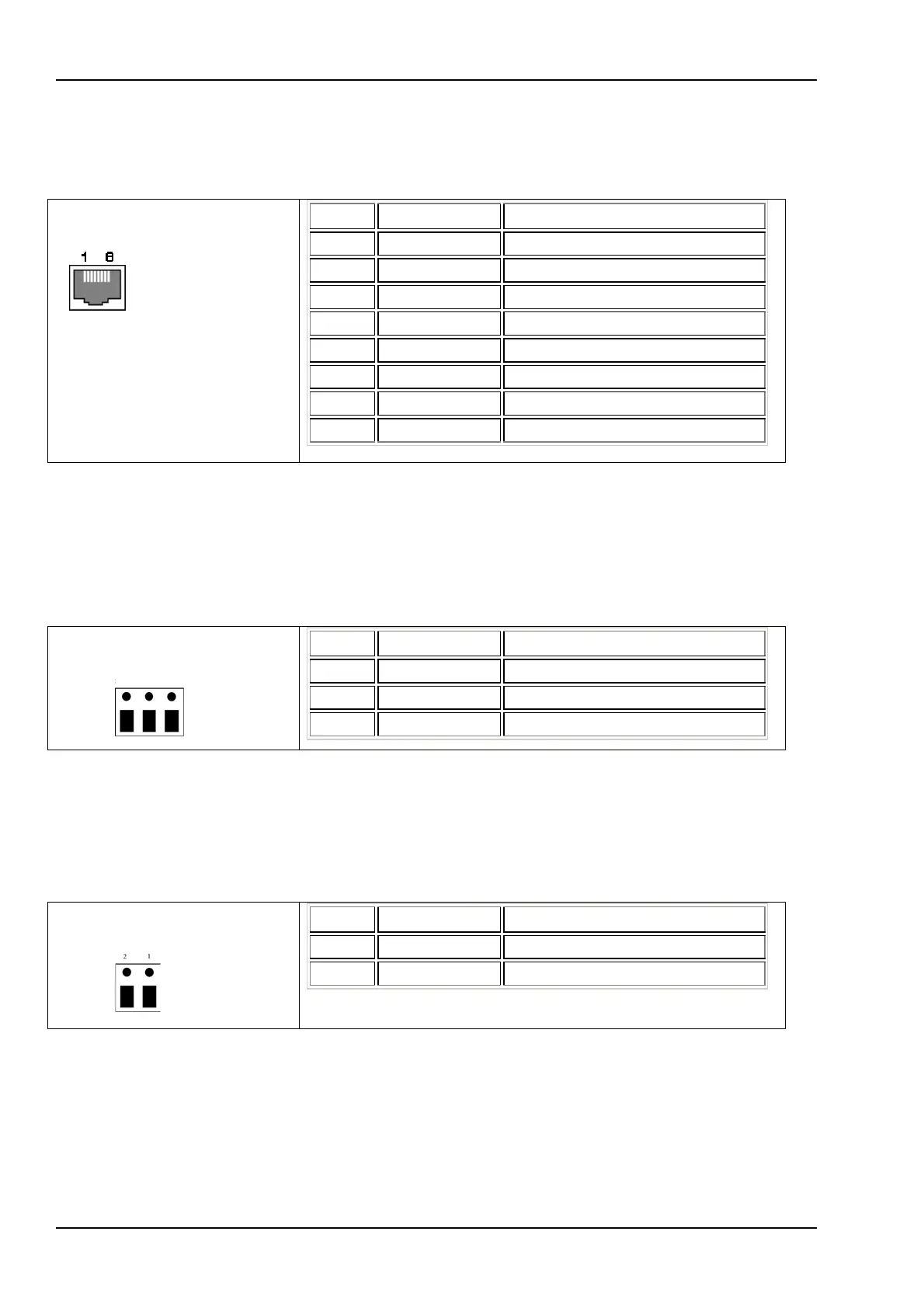

Ethernet Interface
Ethernet connector
RJ 45
Pin Name Definition
1 TX+ Transmit Data+
2 TX- Transmit Data-
3 RX+ Receive Data+
4 n/c not connected
5 n/c not connected
6 RX- Receive Data-
7 n/c not connected
8 n/c not connected
Ethernet RJ45 connector
Auxiliary Voltage and Earth Connection
3-way terminal block
Vaux
Screen L- L+
Pin Name Definition
1 L+ V
aux
+
2 L- V
aux
-
3 Earth Protective Earth
The device features internal reverse polarity protection for V
aux
.
DR Contact
2-way terminal block
DR
Pin Name Definition
1 DR Isol. DR
2 DR-NC Isol. DR-NC
