Application
General scope of application
The Serial Hub is designed for operation in industrial zones and substations.
The Serial Hub enables devices with serial interfaces (RS232, RS485, or FO) to convert
data to the UDP protocol and to transmit and receive it via a TCP/IP network. This allows
devices without dedicated network ports to exchange data via the Ethernet.
Ethernet Ethernet
WAN, e.g. Internet
(LAN, e.g. Intranet)
10/100 Mbps
Parameterisation, e.g.
with a notebook
Serial hub Serial hub Serial hub
Measuring
e
ui
ment
Safety equipment
Munich
Hambur
Berlin
TCP/IP
Ethernet

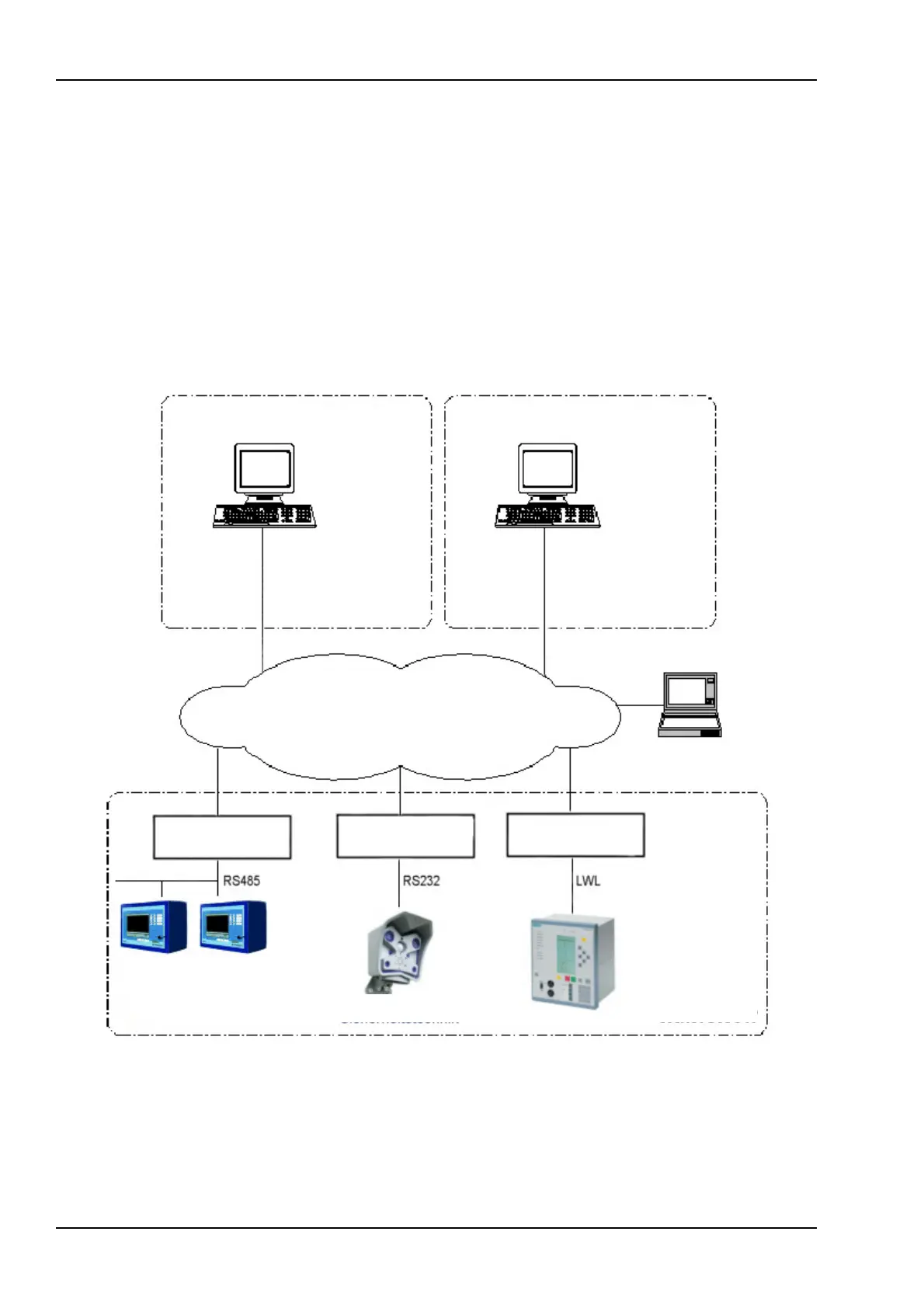

Fig. 1: General scope of application of the Serial Hub
