ESD Protection with EMI filter
The Z211 is a 5-channel filter with over-voltage and ESD Protection array which is designed
to provide filtering of undesired RF signals in the 800-4000MHz frequency band Additionally
the Z211 contains diodes to protect downstream components from Electrostatic Discharge
(ESD) voltages up to 8 kV.
Pin configuration of the Z211

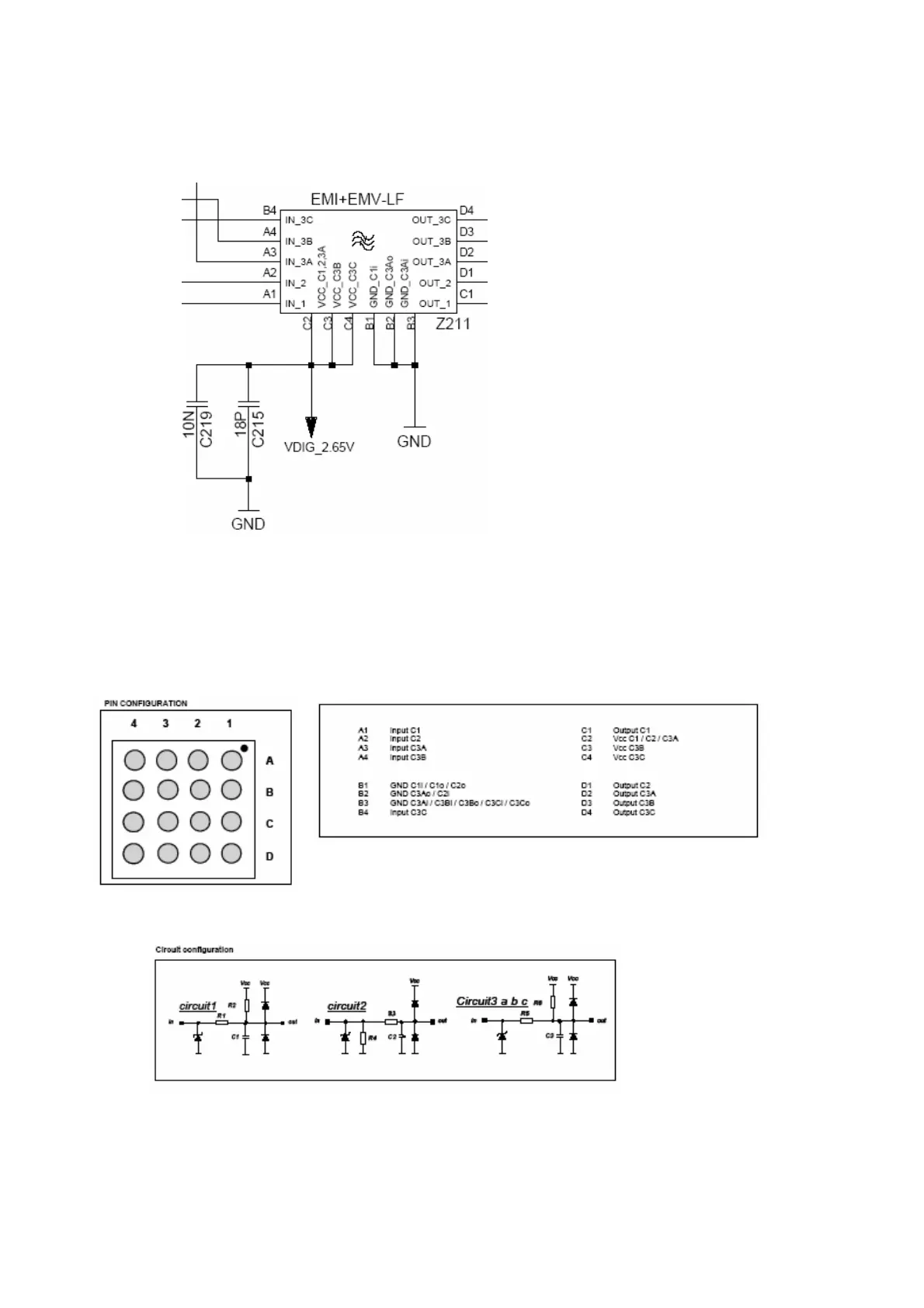

Z211 Circuit Configuration
