10.6 SIM

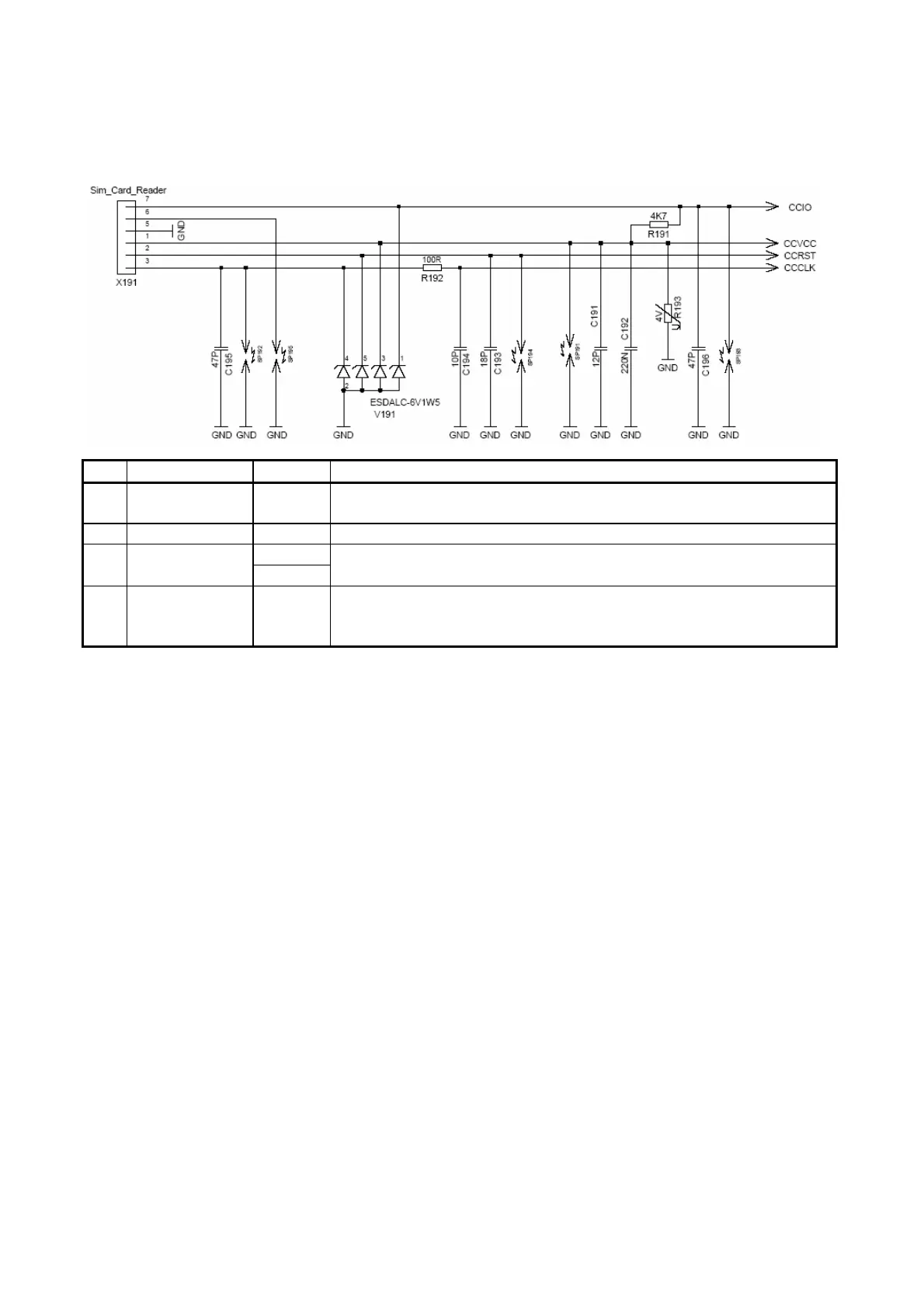

Pin Name IN/OUT Remarks
3 CCLK O Pulse for chipcard.
The chipcard is controlled directly from the EGOLDlite.
2 CCRST O Reset for chipcard
I 7 CCIO
O
Data pin for chipcard;
10 kΩ pull up at the CCVCC pin
1 CCVCC - Switchable power supply for chipcard;
220 nF capacitors are situated close to the chipcard pins and are
necessary for buffering current spikes.
