11 Keyboard

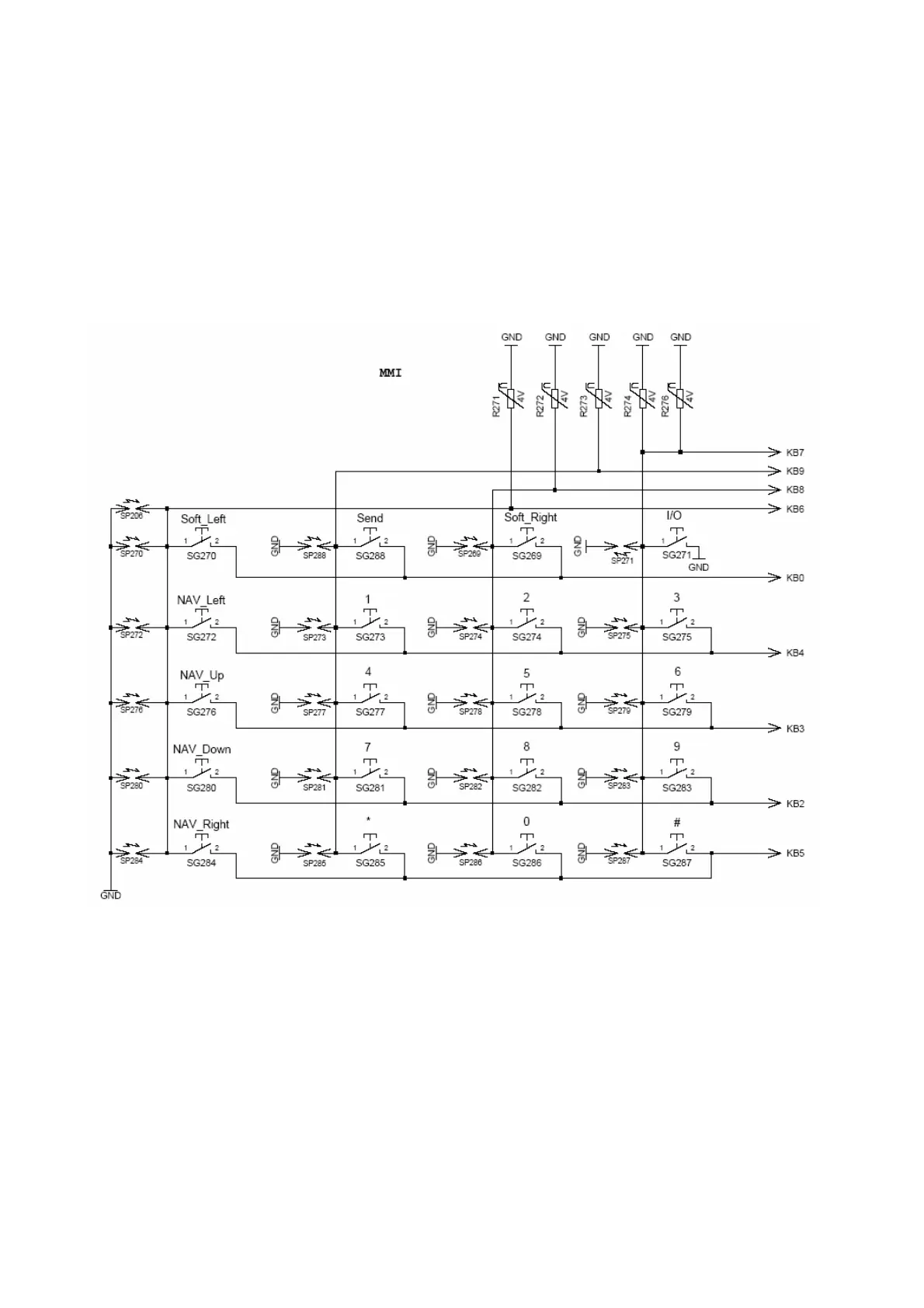

The keyboard is connected via the lines KB0 – KB9 with the EGOLDlite.
KB 7 is used for the ON/OFF switch. The lines KB0 – KB5 are used as output signals. In the matrix
KB6, KB8 and KB9 are used as input signals for the EGOLDlite.
