Siemens LV 10 · 2004
7/38
Fuses and Fuse Systems

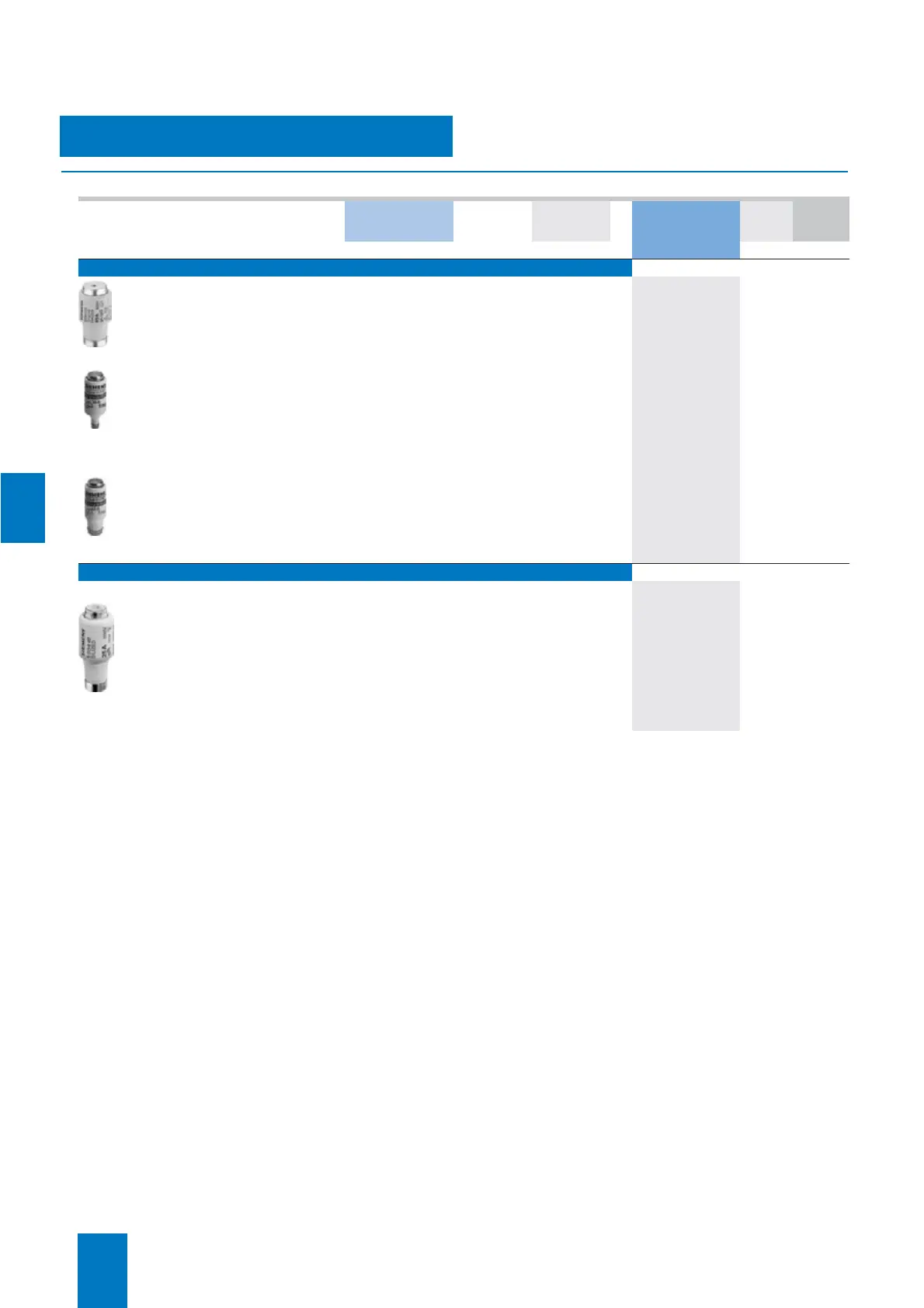

DIAZED fuses
* This quantity or a multiple thereof can be ordered.
7
■ Selection and ordering data
Size Rated current
I
n
Identification
color
Thread DT Order No. PS* Weight per
PU
approx.
A
kg
DIAZED fuse links
AC 50 kA, DC 8 kA; AC 500 V, DC 500 V
Operational class gL/gG
DIII 32 black E 33 A 5SB4 010 5 units 0.048
35 black A
5SB4 11 5 units 0.050
50 white A
5SB4 21 5 units 0.051
63 copper A
5SB4 31 5 units 0.054
AC 50 kA, DC 8 kA, AC 690 V, DC 600 V
Operational class gL/gG
DIII 2 pink E 33 A 5SD8 002 25 units 0.068
4brown A
5SD8 004 25 units 0.068
6green A
5SD8 006 25 units 0.068
DIII 10 red E 33 A
5SD8 010 25 units 0.068
16 gray A
5SD8 016 25 units 0.069
DIII 20 blue E 33 A
5SD8 020 25 units 0.071
25 yellow A
5SD8 025 25 units 0.072
DIII 35 black E 33 A
5SD8 035 25 units 0.078
50 white A
5SD8 050 25 units 0.080
63 copper A
5SD8 063 25 units 0.082
For fuse links 2 ... 25 A, DIAZED guide screws DII are used
SILIZED fuse links
AC 500 V, DC 500 V, yellow ring
Operational class gR, super-quick
DII 16 gray E 27 A 5SD4 20 5 units 0.028
20 blue A
5SD4 30 5 units 0.029
25 yellow A
5SD4 40 5 units 0.031
30 A
5SD4 80 5 units 0.031
DIII 35 black E 33 A
5SD4 50 5 units 0.050
50 white A
5SD4 60 5 units 0.051
63 Copper A
5SD4 70 5 units 0.054
For 5SD4 80, the DIAZED guide screw 5SH3 16 for 25 A is used
