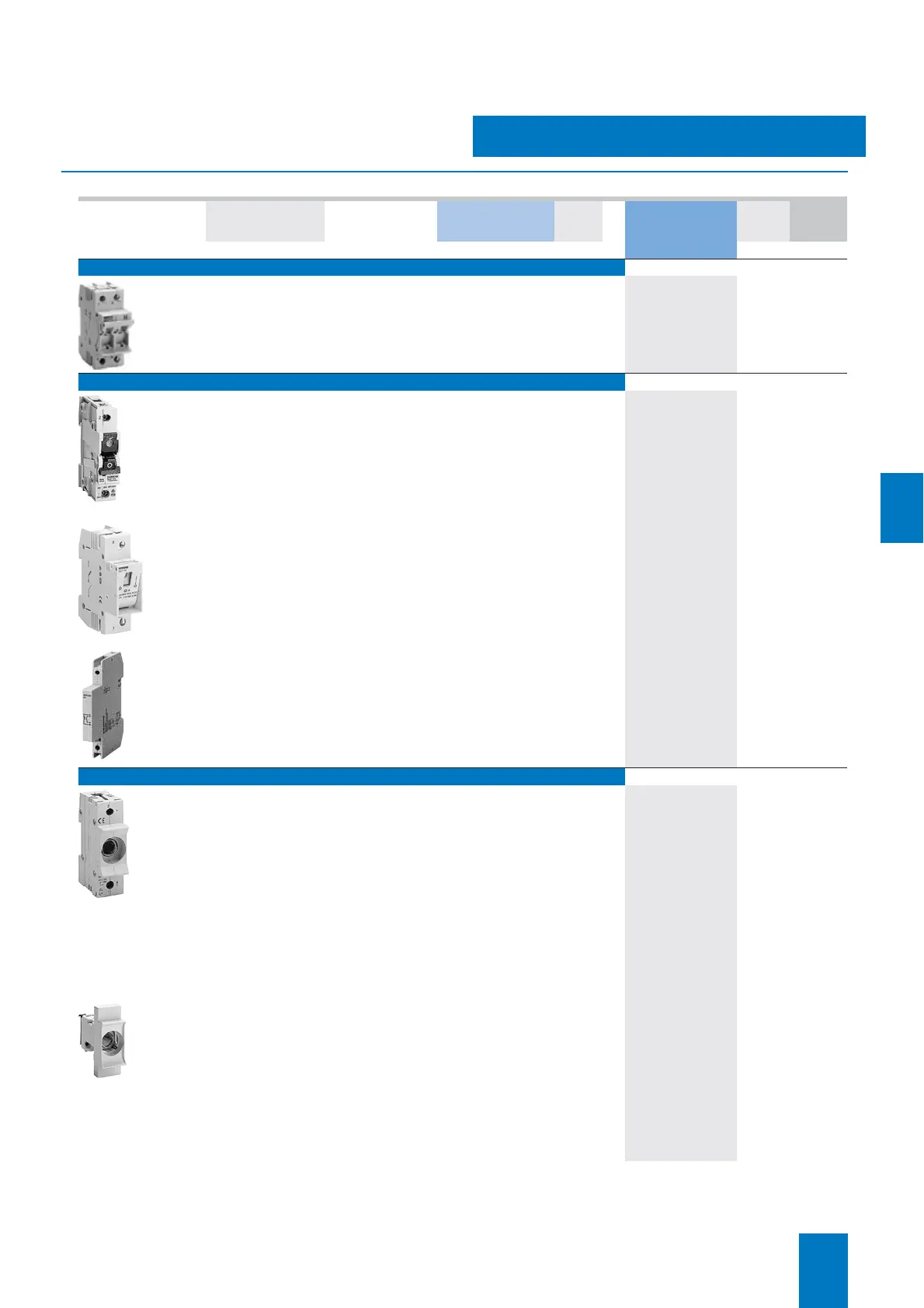

Siemens AC-21 - Neozed Fuses

Siemens LV 10 · 2004
7/33
Fuses and Fuse Systems
NEOZED fuses
* This quantity or a multiple thereof can be ordered.
7
■ Selection and ordering data
No. of poles Size Rated current I
n
MW DT Order No. PS* Weight per
PU
approx.
A
kg
NEOZED fuse disconnectors
Draw-out version, FR1 box terminal, 70 mm mounting depth
Single-pole D01 16 1 A 5SG7 610 12 units 0.070
Single-pole + N D01 16 2 A
5SG7 650 6 units 0.150
2-pole D01 16 2 A 5SG7 620 6 units 0.150
3-pole D01 16 3 A 5SG7 630 4 units 0.220
3-pole + N D01 16 4 A
5SG7 660 3 units 0.300
MINIZED switch disconnectors
Draw-out version, FR1 box terminal, 55 mm mounting depth
Single-pole D01 16 1 A 5SG7 713 3 units 0.080
Single-pole + N D01 16 2 A 5SG7 753 2 units 0.150
2-pole D01 16 2 A
5SG7 723 2 units 0.160
3-pole D01 16 3 A
5SG7 733 1 unit 0.254
3-pole + N D01 16 4 A
5SG7 763 1 unit 0.310
Draw-out version, FR2 box terminal, 70 mm mounting depth
Single-pole D02 63 1.5 A 5SG7 112 3 units 0.132
Single-pole + N D02 63 3 A 5SG7 152 2 units 0.265
2-pole D02 63 3 A 5SG7 122 2 units 0.226
3-pole D02 63 4.5 A
5SG7 132 1 unit 0.410
3-pole + N D02 63 6 A 5SG7 162 1 unit 0.520
Auxiliary switch for MINIZED D02 switch disconnector for contact position indica-
tion and for retrofitting on the right-hand-side using factory-fitted terminals
Contact:
AC 230 V, 6 A
AC 24 V, 50 mA
DC 24 V, 50 mA 0.5 A 5SH5 528
10 units
0.050
NEOZED bases
BGV A2 finger-safe cover, FR1 box terminal, 70 mm mounting depth
Single-pole D01 16 1.5 A 5SG1 300 6 units 0.150
3-pole D01 16 4.5 A
5SG5 300 2 units 0.450
Single-pole D02 63 1.5 A 5SG1 700 6 units 0.150
3-pole D02 63 4.5 A 5SG5 700 2 units 0.450
Molded plastic, box terminal R, with cover, 70 mm mounting depth
Single-pole D01 16 1.5 A 5SG1 330
15 units
0.068
3-pole D01 16 4.5 A
5SG5 330 5 units 0.216
Single-pole D02 63 1.5 A 5SG1 730 15 units 0.087
3-pole D02 63 4.5 A 5SG5 730 5 units 0.252
Ceramic with cover, 70 mm mounting depth
BB: infeed cleat, outgoing cleat
Single-pole D01 16 1.5 X 5SG1 553
20 units
0.083
3-pole D01 16 4.5 X
5SG5 553 5 units 0.263
SS: infeed/outgoing saddle terminal
Single-pole D02 63 1.5 X 5SG1 653 20 units 0.093
3-pole D02 63 4.5 X 5SG5 653 5 units 0.293
KS: infeed screw terminal, outgoing feeder saddle terminal
Single-pole D02 63 1.5 X 5SG1 693 20 units 0.090
3-pole D02 63 4.5 X 5SG5 693 5 units 0.290
