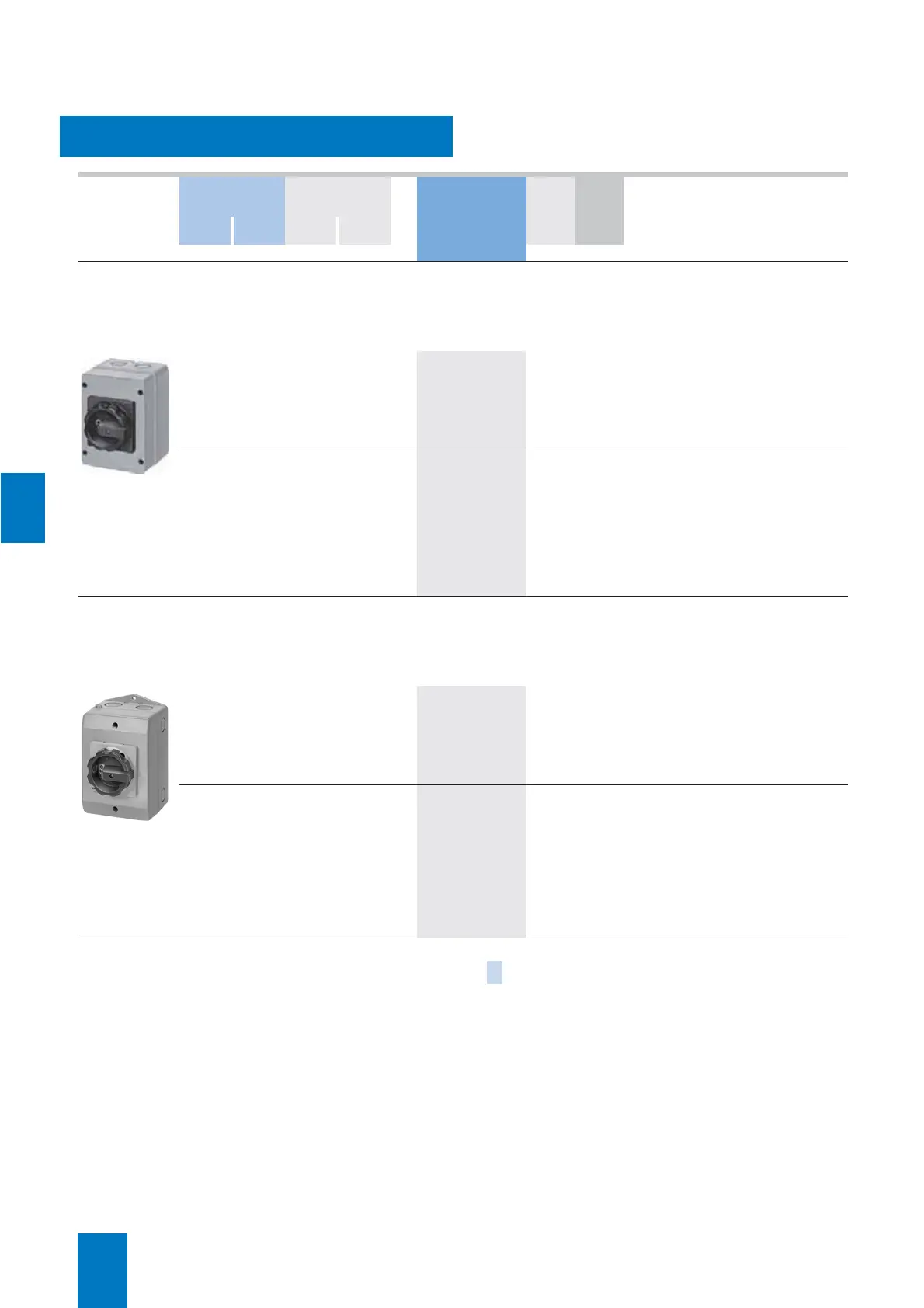

SENTRIC Switch Disconnectors
Molded-plastic enclosures
SENTRIC LD Main Control and EMERGENCY STOP Switches from 16 A to 125 A
7
1) 4th contact as N-conductor to be ordered separately; see Accessories for
base mounting and distribution board mounting.
Number and version
of contacts
Rated data
at 50 Hz ... 60 Hz
380 V ... 440 V
DT
Order No. PS* Weight
per PU
approx.
Main
contacts
Auxiliary
contacts
P/
AC-23A
I
u
kW A kg
Main control and EMERGENCY-STOP switches
• With N or PE/ground terminal
• Heavy-gauge threaded joints
• Lockable in 0 position with max. 3 padlocks
• IP 65 degree of protection at the front
3LD2 261-0TB13
3– 7.516
–
9.5 25 A
3LD2 161–0TB.. 1 unit 0.415
11.5 32 A
3LD2 261–0TB.. 1 unit 0.420
22 63
A 3LD2 562–0TB.. 1 unit 0.801
37 100 A 3LD2 7630TB.. 1 unit 2.000
45 125 A
3LD2 8630TB.. 1 unit 2.000
3 + N – 7.5 16
–
9.5 25
A 3LD2 161–1TC.. 1 unit 0.439
11.5 32 A 3LD2 261–1TC53 1 unit 0.444
22 63 A 3LD2 562–1TC53 1 unit 0.863
37 100 A 3LD2 7630TB.. 1 unit 2.000
+
1)
} 3LD9 280–0C 1 unit 0.102
45 125 A 3LD2 8630TB.. 1 unit 2.000
+
1)
} 3LD9 280–0C 1 unit 0.102
Main control and EMERGENCY-STOP switches
• With N or PE/ground terminals
• metric screwed glands
• Lockable in 0 position with max. 3 padlocks
• IP65 degree of protection at the front
3LD2 164-0TB53
3– 7.516A
3LD2 064–0TB.. 1 unit 0.463
9.5 25 A
3LD2 164–0TB.. 1 unit 0.463
11.5 32 A
3LD2 264–0TB.. 1 unit 0.465
22 63
A 3LD2 565–0TB.. 1 unit 0.906
37 100 A 3LD2 7660TB.. 1 unit 1.890
45 125 A
3LD2 8660TB.. 1 unit 1.890
3 + N – 7.5 16 A
3LD2 064–1TC.. 1 unit 0.453
9.5 25
A 3LD2 164–1TC.. 1 unit 0.487
11.5 32 A 3LD2 264–1TC53 1 unit 0.500
22 63 A 3LD2 565–1TC53 1 unit 0.960
37 100 A 3LD2 7660TB.. 1 unit 1.890
+
1)
} 3LD9 280–0C 1 unit 0.102
45 125 A 3LD2 8660TB.. 1 unit 1.890
+
1)
} 3LD9 280–0C 1 unit 0.102
Actuator
>
black 51
red/yellow (EMERGENCY-STOP)
53
* This quantity or a multiple thereof can be ordered.
