Siemens Acvatix SAS Series - 3 Handling; Mounting and Installation; Mounting Positions; Fitting Stroke Actuators SAS.. to Threaded Valves

15 / 60
Siemens Actuators SAS.., SAT.. for valves CE1P4041en
Smart Infrastructure Handling 2019-04-09
3 Handling
3.1 Mounting and installation

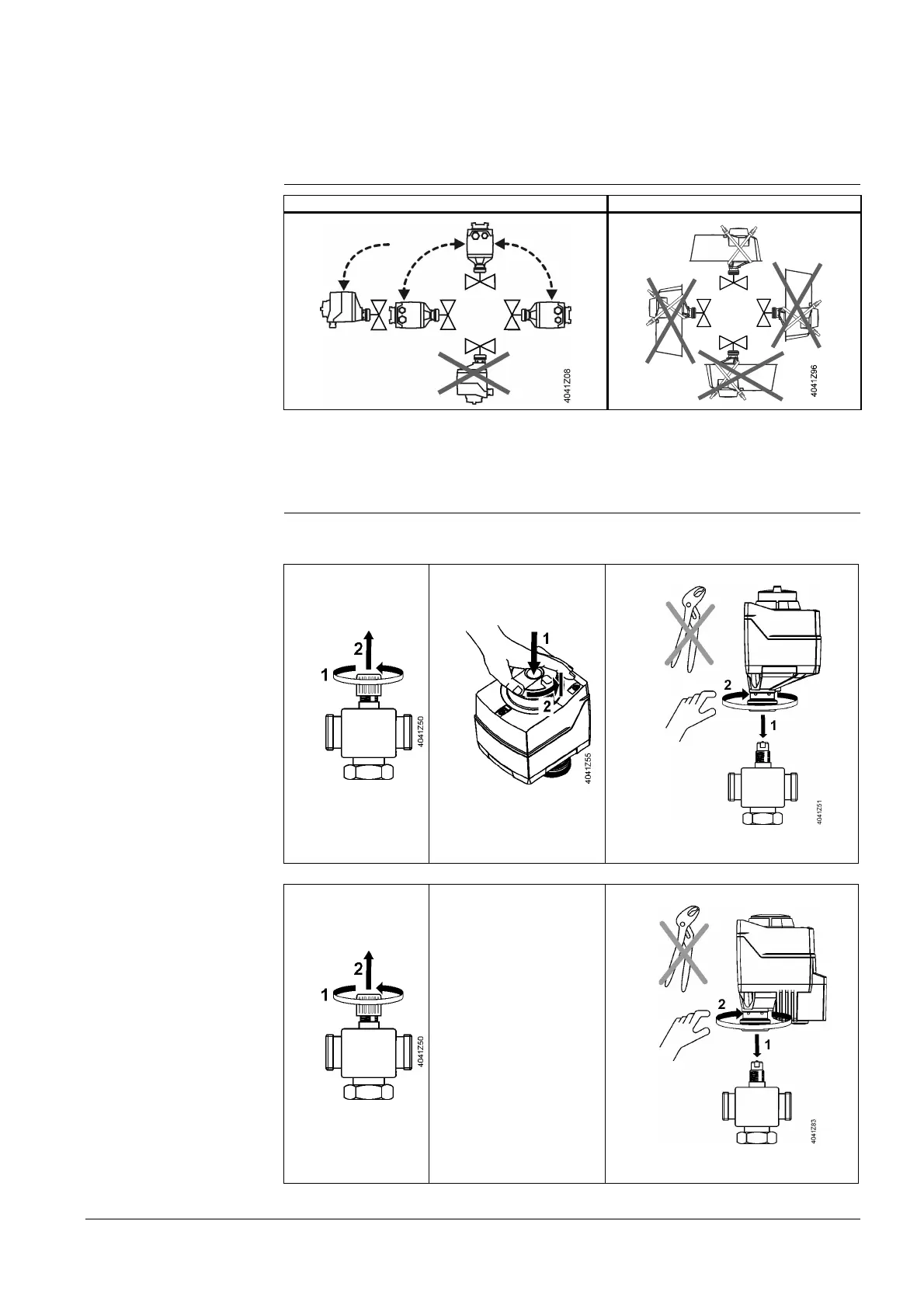

3.1.1 Mounting positions
Indoor use Outdoor use
1)
1)
Only in connection with weather shield ASK39.2, housing protection IP54 remains unchanged
SAS61../MO is not suitable for outdoor applications.
3.1.2 Fitting stroke actuators SAS.. to threaded valves
First, observe chapter 3.1.1 Mounting positions.
1
2
3
tighten firmly by hand
1
2
3
-
tighten firmly by hand
SAS..0..
SAT..0..
SAS..5..
