Siemens Acvatix SAS Series - 6 Connection Diagrams and Dimensions; Internal Diagrams

48 / 60
Siemens Actuators SAS.., SAT.. for valves CE1P4041en
Smart Infrastructure Connection diagrams and dimensions 2019-04-09
6 Connection diagrams and
dimensions

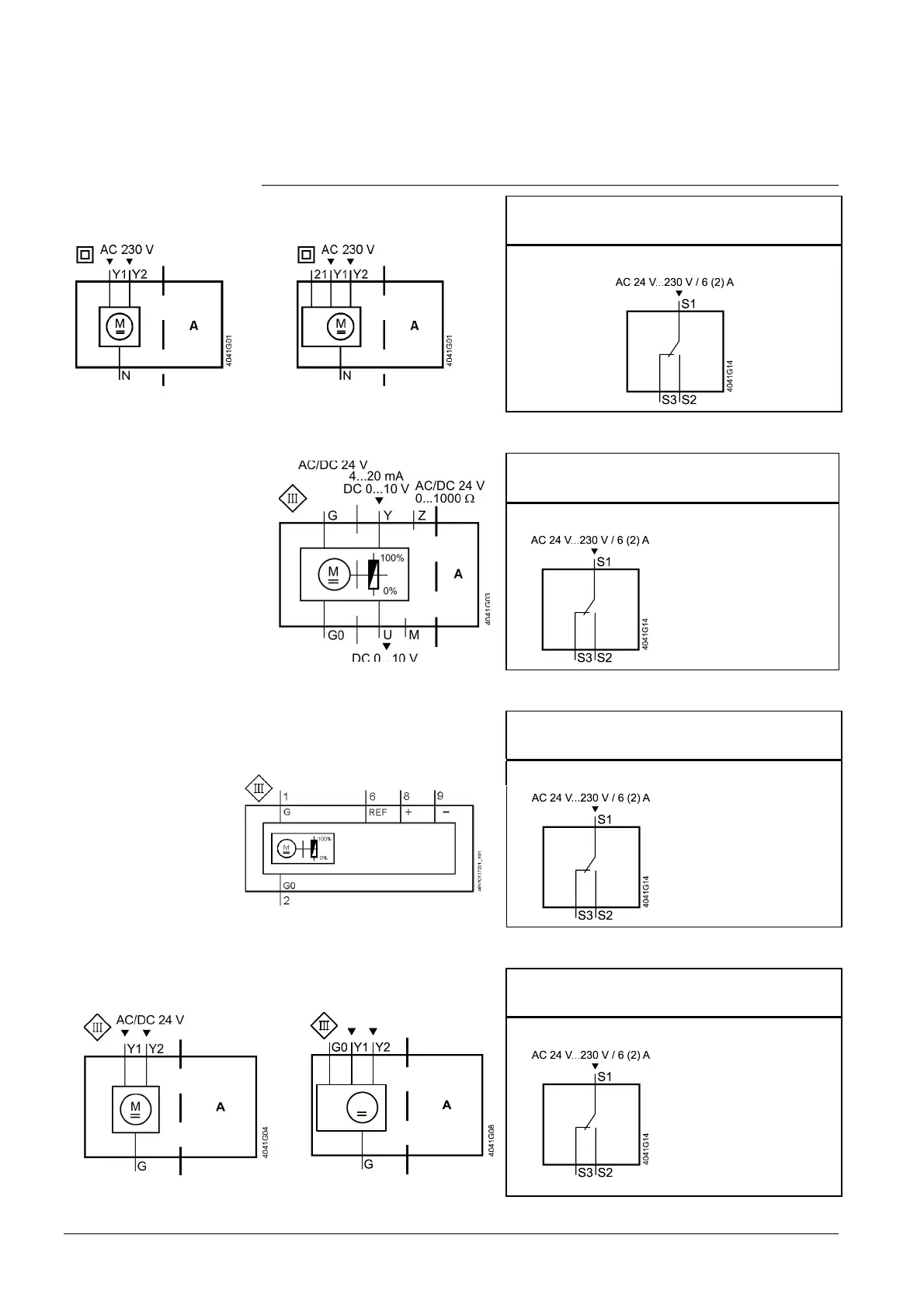

6.1 Internal diagrams
SA..31.0..
SA..31.5..
Accessory plug-in space A
1x ASC10.51
ASC10.51
Accessory plug-in space A
1x ASC10.51
ASC10.51
US installation, UL & cUL
AC 24 V class 2
5 A Gen. Purp.
SAS61../MO
Accessory plug-in space A
AC 24 V / DC 24 V
1x ASC10.51
ASC10.51
US Installation, UL & cUL
AC 24 V class 2
5 A Gen. Purp.
SAS81.0..
SAS81.33, SAS81.33U
Accessory plug-in space A
AC/DC 24 V
M
1x ASC10.51
ASC10.51
US installation, UL & cUL
AC 24 V class 2
5 A Gen. Purp.
SA..61..
