Siemens Actuators SAS.., SAT.. for valves CE1P4041en
Smart Infrastructure Handling 2019-04-09

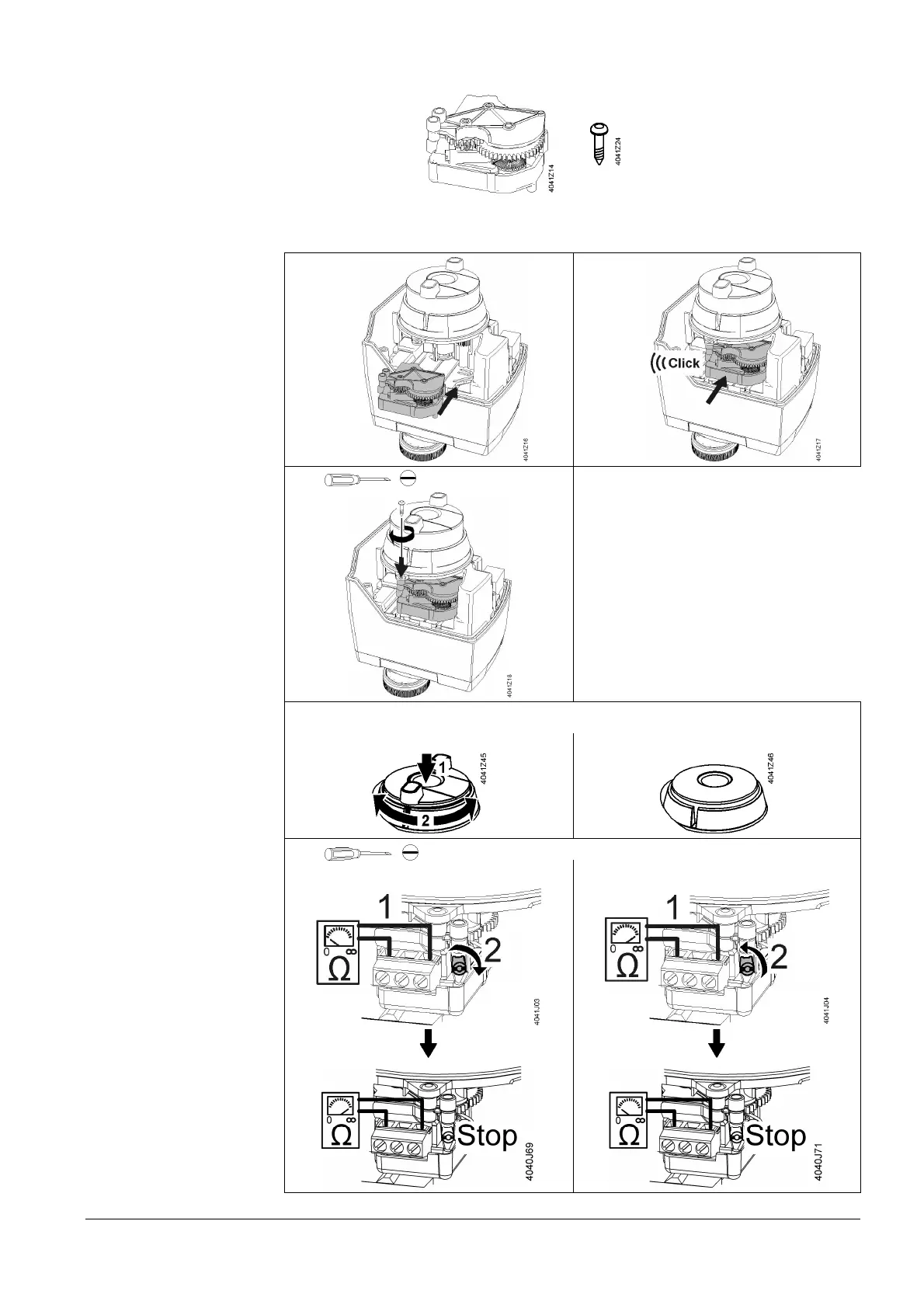

Scope of delivery
· 1 auxiliary switch
· 1 screw
· Cable ties
First, observe "Special notes on mounting" (page 16).
1
2
3
No.: 1
4
Adjust switch position (refer also to "Manual adjuster" page 42)
Without
fail safe function (SA..1.0..)
With fail safe function (SA..1.3.. / SA..1.5..)
5
No.: 1
When initial situation: 0 Ω
When initial situation: ∞ Ω
Auxiliary switch
ASC10.51
Plug-in space for
accessory
