3 Handling
3.1 Mounting and installation

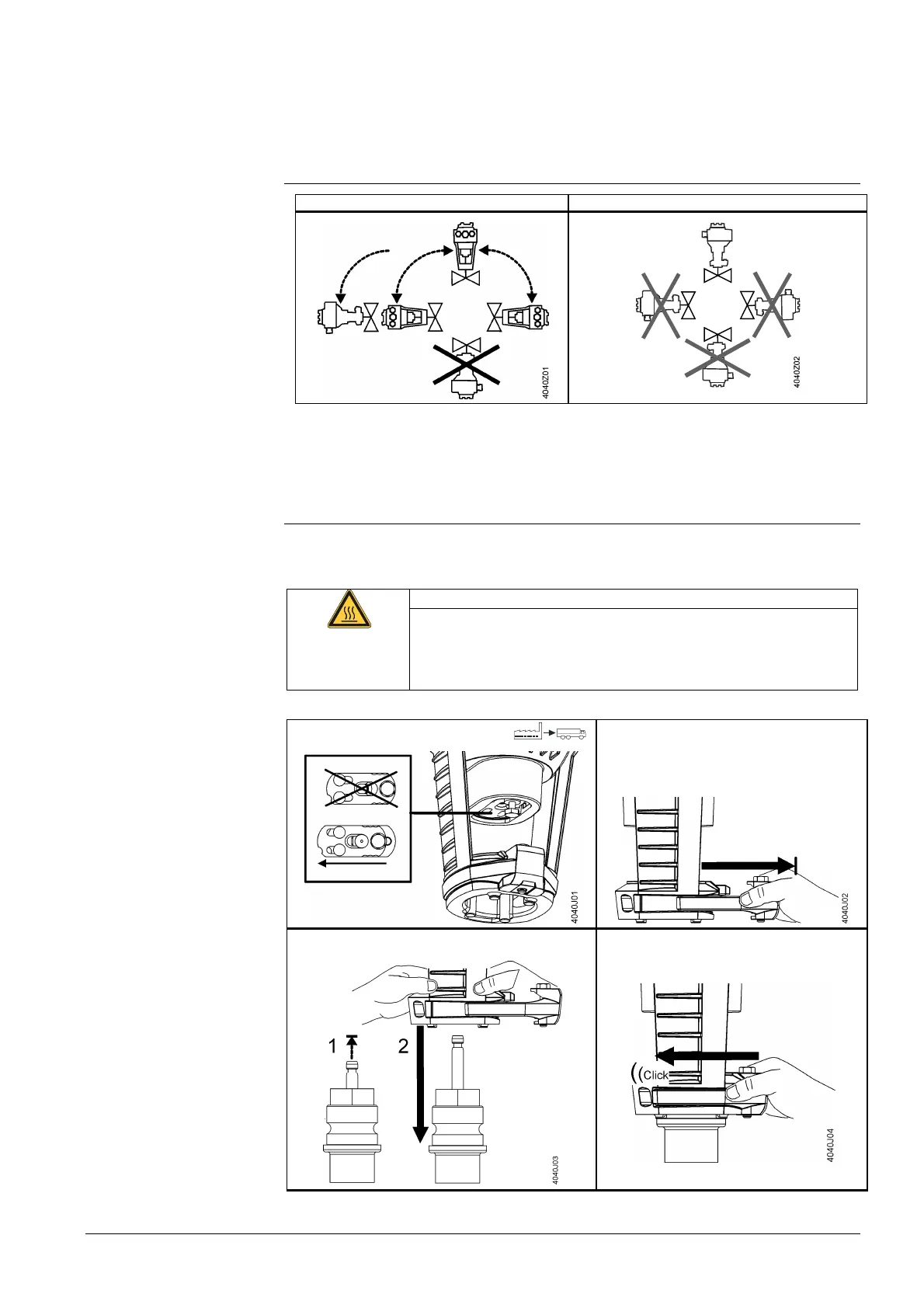

3.1.1 Mounting positions
Indoor use Outdoor use
1) 2)
1)
Only in connection with weather shield ASK39.1
2)
SA..61../MO are not suitable for outdoor applications.
3.1.2 Fitting stroke actuators to seat valves VVF.. / VXF.. or
VVG.. / VXG..
First, observe "Mounting positions" (page 25).
Caution!
Risk of burns from hot surfaces!
If you touch heated parts, you will get burns as result.
· Allow to cool parts.
· Wear protective gloves.
1
Actuator’s stem retracted
2
3
4
